Vega 30 Router User Manual Video and MADI only router Routing Use Cases 10.4
Issue1 Revision 1 Page 175 © 2017 SAM
10.4 Video and MADI only router
Video routing (with embedded audio) and separate MADI audio routing:
In this use case, the Vega 30 Router is used for video routing and MADI audio routing. There
is no de-embedding nor embedding of audio channels.
See 10.2 “Video-only Router Use Case” and 10.3 “MADI-only Router Use Case”.

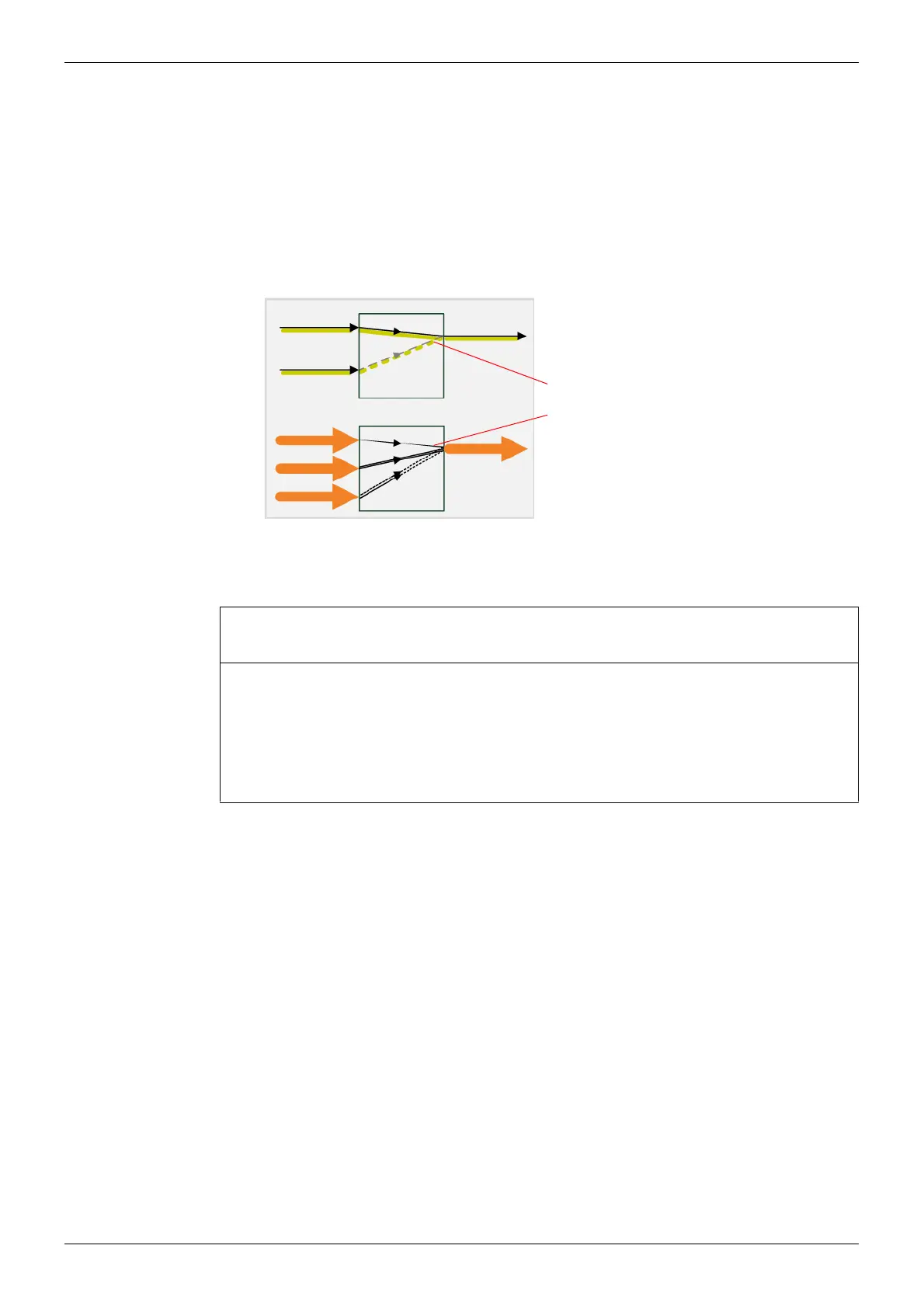

Figure 127 Vega 30 Use Case - Video and MADI only
Licenses required: • Video I/O options, as required.
• Audio routing option, VG10-AR.
Routing: • Association Routing with Pre-defined and User-defined
audio sources and partial sources and destinations to
control the video and audio crosspoints.
or
• Direct Video and Direct Audio routing control over the video
and audio crosspoints respectively.
Video routing
MADI audio routing
Audio Crosspoint
Video Crosspoint
To Next Page
