Vega 30 Router User Manual Assoc Routing - XY Panel Control Template Vega 30 RollCall Templates 7.8
Issue1 Revision 1 Page 143 © 2017 SAM
See the Section 7.8.4 “Options Tab” on page 143 for options regarding the appearance of
buttons.
(See the SAM ‘RollCall Control Panel User Manual’, Appendix 1 ‘XY Panel’, for further
information about RollCall Control Panel and XY Routing Panels.)
7.8.4 Options Tab
The Options Tab provides settings for customizing the display of the XY panel. See the SAM
‘RollCall Control Panel User Manual’, Appendix 1 ‘XY Panel’, for further information about
RollCall Control Panel, XY Routing Panels and the Options tab.
The Options Tab is shown in Figure 111.
s
The Options tab has two modes: User Mode and Admin Mode, indicated by radio buttons on
the screen. The XY Panel always starts in User Mode. The features in the Options Tab are
only available when in Admin Mode. (If required, a password can be set up to secure this
mode, see the SAM ‘RollCall Control Panel User Manual’ for more information.)
The Options tab contains buttons to access the various features controlled by the tab. The
features in the Options tab are summarized in Table 48. See the SAM ‘RollCall Control Panel
User Manual’ for more information.

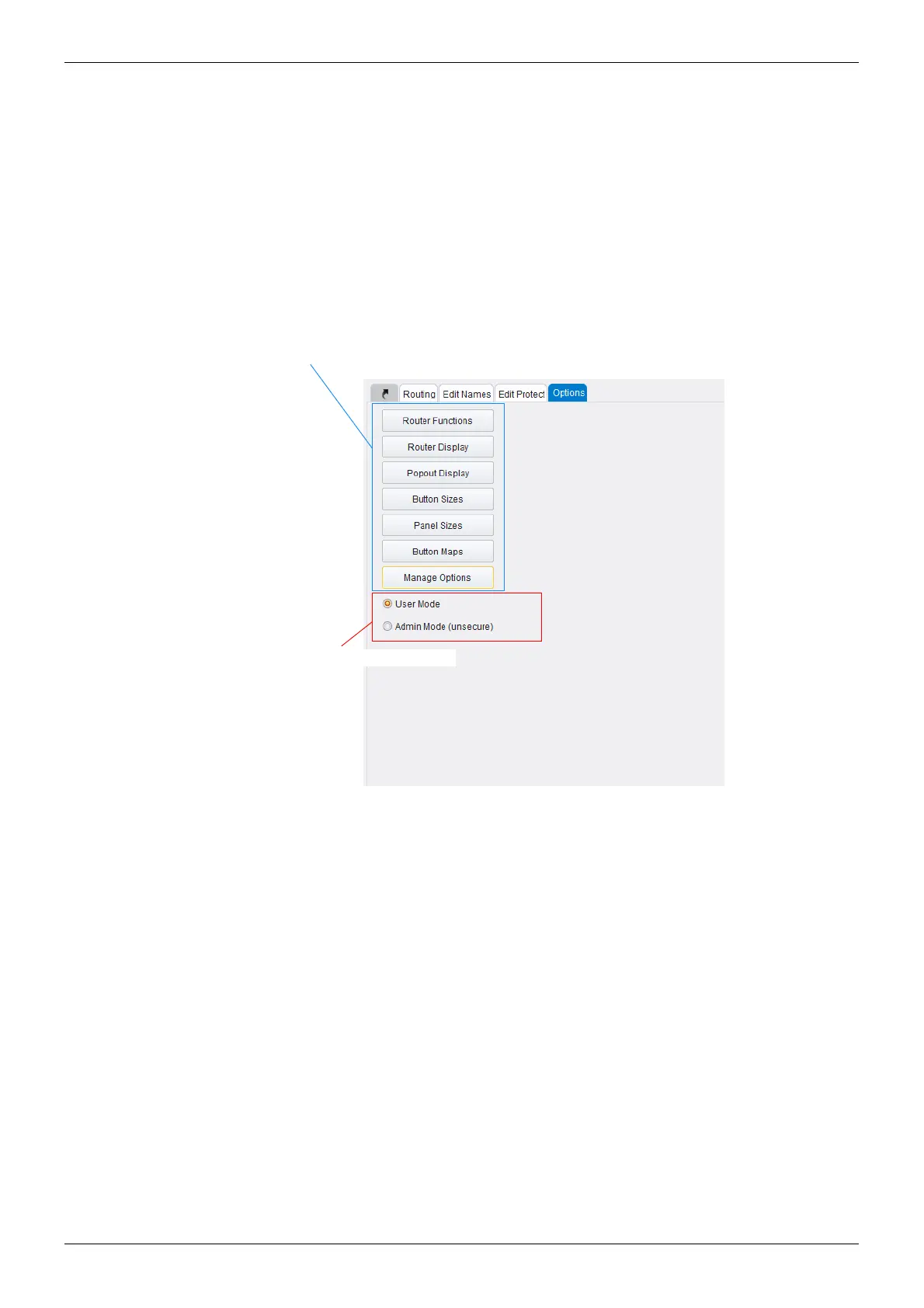

Figure 111 (Assoc Routing) XY Panel - Option Tab
Options Tab Mode radio buttons
Click buttons to access features.
