Vega 30 Router User Manual MADI-only Router Use Case Routing Use Cases 10.3
Issue1 Revision 1 Page 174 © 2017 SAM
10.3 MADI-only Router Use Case
Routing of MADI audio only:
In this use case, the Vega 30 Router is used for MADI audio routing only. No video routing, no
audio embedding nor de-embedding.
Example:
Switching a stereo pair:
• Audio channels 1 and 2 of MADI input 3 (audio channel sources 673 and 674);
to
• Audio channels 5 and 6 of MADI output 4 (audio channel destinations 741 and 742,
destination port 47).
(See Table 61 in Appendix B on page 247 for port numbering.
See Table 63 in Appendix C on page 250 for audio channel source/destination numbers.)
Direct Video routing:
• Use RollCall Direct Audio routing XY panel to make the routing:
• ‘Destination 741 from channel source 673’.
and
• ‘Destination 742 from channel source 674’.
Association Routing (Pre-defined video sources and destinations):
• Create a user-defined source containing the source stereo pair in audio channels 5
and 6 and ‘null sources’ in other channels (for example, ‘MySrc 50’ below):
• Use either the RollCall ‘Assoc Routing’ XY panel or the Web ‘Set Routes’ page to
make the routing:
• ‘Destination 47 from Source 50’.

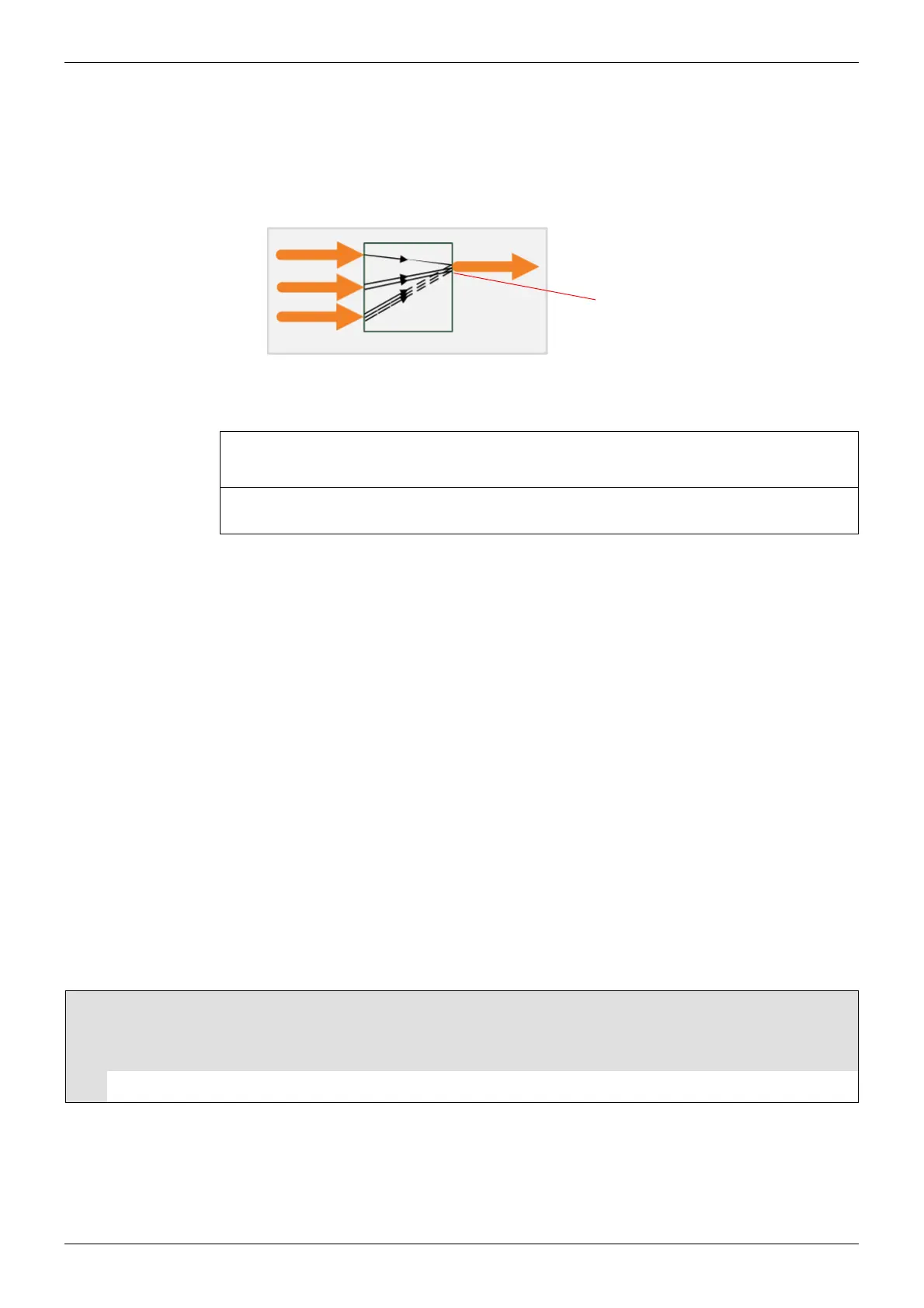

Figure 126 Vega 30 Use Case - MADI-only
Licenses required: • Audio routing option, VG10-AR.
• No Video I/O options required.
Routing: • Association Routing or Direct Audio routing control over the
audio crosspoint.
Audio Crosspoint
Actively-switched output
User-defined
Source
Video
Source
Audio Channel Sources
No. Name Vid. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
50MySrc 50 -----673674----------
