parallel cabinets, and remove the covers and sealing rings inside the clamps of the two cabinets.
Properly store the removed covers and sealing rings. Thread the hose through the sealing groove of
the two parallel cabinets and connect the sealing ring, hose, and liquid cooling pipeline of the two
cabinets with clamps. Use a torque wrench to tighten the clamp screws to a torque of 6-8Nm

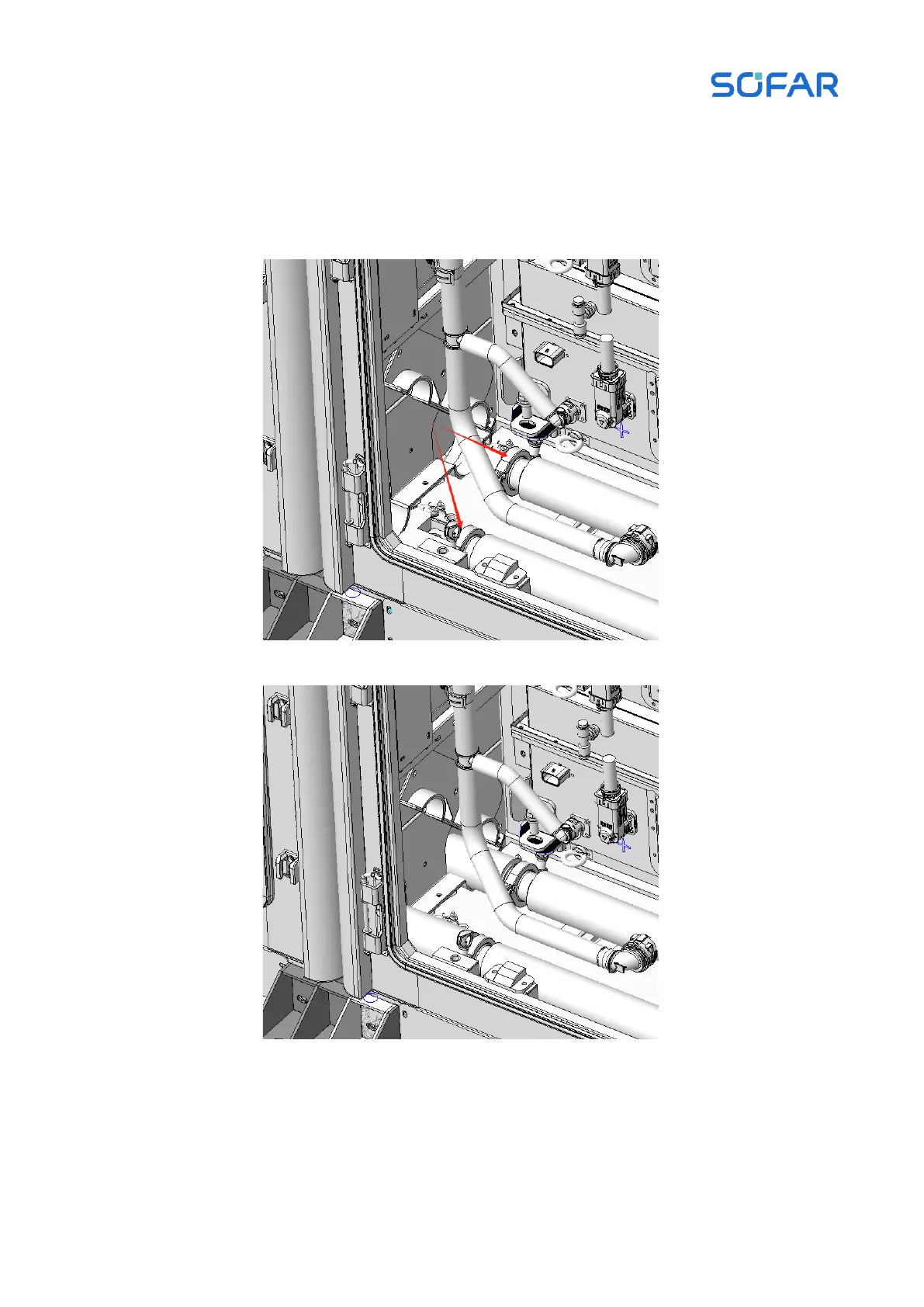

Figure 5.17 Loosen and remove the clamp
Figure 5.18 Install hose and lock clamp
Attention: After locking the clamp, the clamp screw should not exceed the bottom surface of the
battery pack to avoid affecting the subsequent maintenance of the battery pack.
Step 3: Close the sealing slots of two parallel cabinets. Rotate the sealing slot 45 degrees
