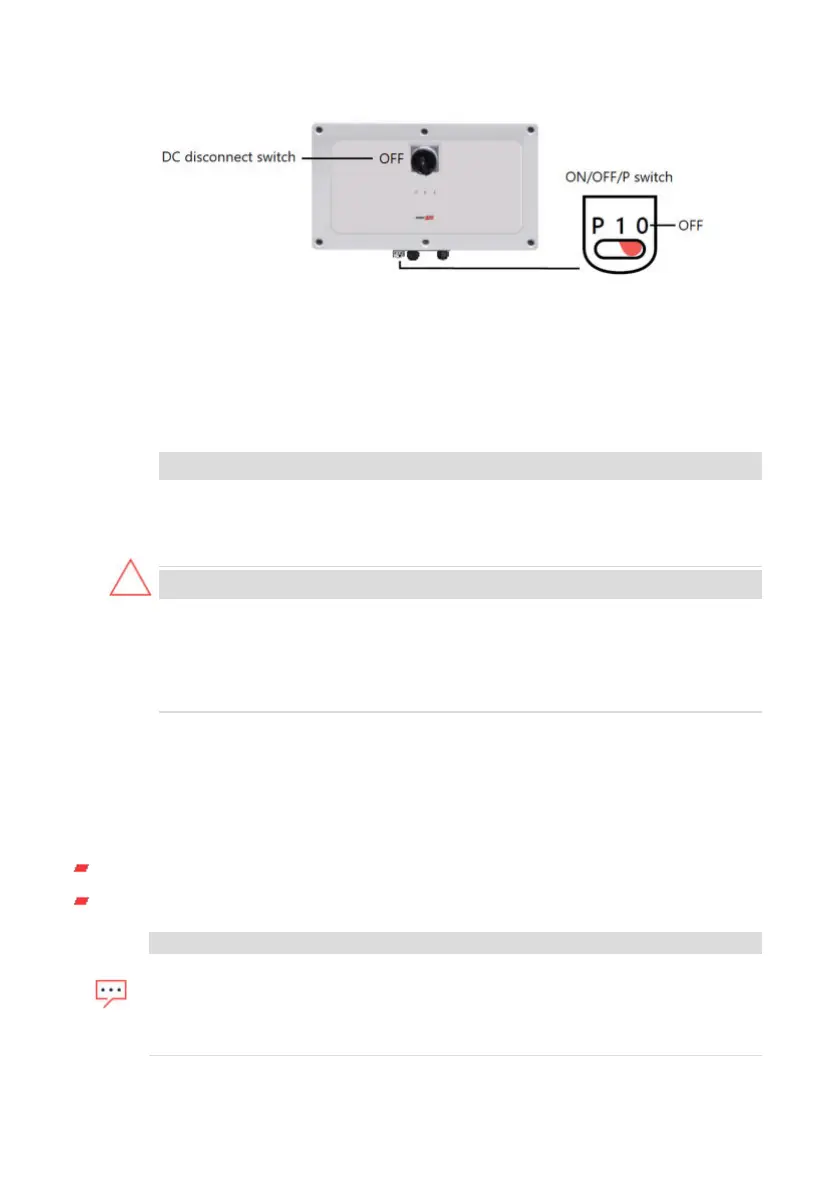

ON/OFF/P and DC disconnect switchs
2. Turn OFF the DC Disconnect switch of the Synergy Manager .
3. Disconnect the AC to the inverter by turning OFF the circuit breakers on the
distribution panel.
4.
Release the six Allen screws of the cover and remove the Synergy Manager cover.
CAUTION!
When removing the cover, make sure not to damage internal components.
SolarEdge will not be held responsible for any components damaged as a
result of incautious cover removal.
ATTENTION!
Lors du retrait du couvercle, assurez-vous de ne pas endommager les
composants internes. SolarEdge ne peut être tenue pour responsable des
composants endommagés à la suite d'une imprudence dans le retrait du
couvercle.
Creating an Local Area Network (LAN) Connection
This communication option enables connection to the SolarEdge monitoring platform
via Ethernet.
Ethernet cable specifications:
Cable type – a shielded Ethernet cable (CAT6) should be used
Maximum distance between the inverter and the router – 100 m/ 330 ft.
NOTE
If using an Ethernet cable longer than 10 m / 33 ft in areas where there is a
risk of induced Voltage surges by lightning, it is recommend to use external
surge protection devices. For details refer to:
Chapter 5: Setting Up Communication with the Monitoring Platform65
Three Phase Inverters with Synergy Technology PN: SExxK-xxxxIxxxx
