SolarEdge SE5000H User Manual

The EV Charger Cable connects the EV plug to the inverter
The wall mounted EV Charger cable holder is used for hanging the EV Charger cable
and plug, protecting the plug from rain when not plugged into the vehicle, and
provides strain relief for the inverter when the cable is pulled.

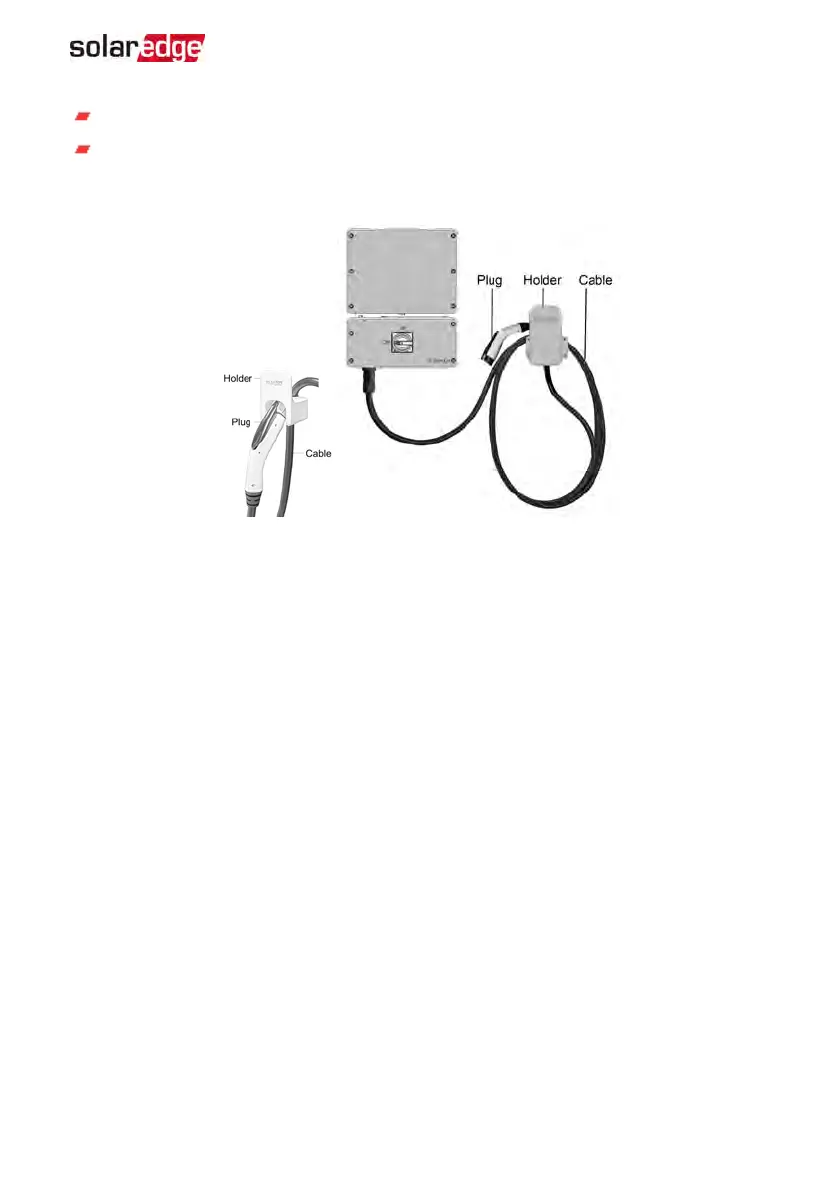

Figure 2: The EV Charger Cables (with holders)
11
EV Charging Single Phase Inverter Guide MAN-01-00583-1.5

SolarEdge SE5000H Specifications

General

Model	SE5000H
Manufacturer	SolarEdge
Topology	Transformerless
AC Nominal Power	5000 W
Rated AC Power	5000 W
Cooling	Natural Convection
Noise Level	< 25 dBA
Protection Rating	IP65
Max. Input DC Voltage	480 Vdc
Number of MPP Trackers	1
AC Voltage	240 V
Weight	10.6 kg
Operating Temperature Range	-25°C to 60°C
