Replacing an Inverter
1. Turn OFF the inverter ON/OFF/P switch, and wait until the green LED is blinking ,
indicating that the DC voltage is safe (<50V), or wait five minutes before continuing
to the next step.
2. Turn OFF the Connection Unit.
3. Disconnect the AC to the inverter by turning OFF the ACcircuit breaker of the
distribution panel.
4. Open the Connection Unit cover: Release the four Allen screws and remove the
cover.
5. Open the inverter cover as described in
Removing the Inverter Cover
on page 53.
6.
Disconnect the DC wires from the inverter and the ACwires from the Connection
Unit.

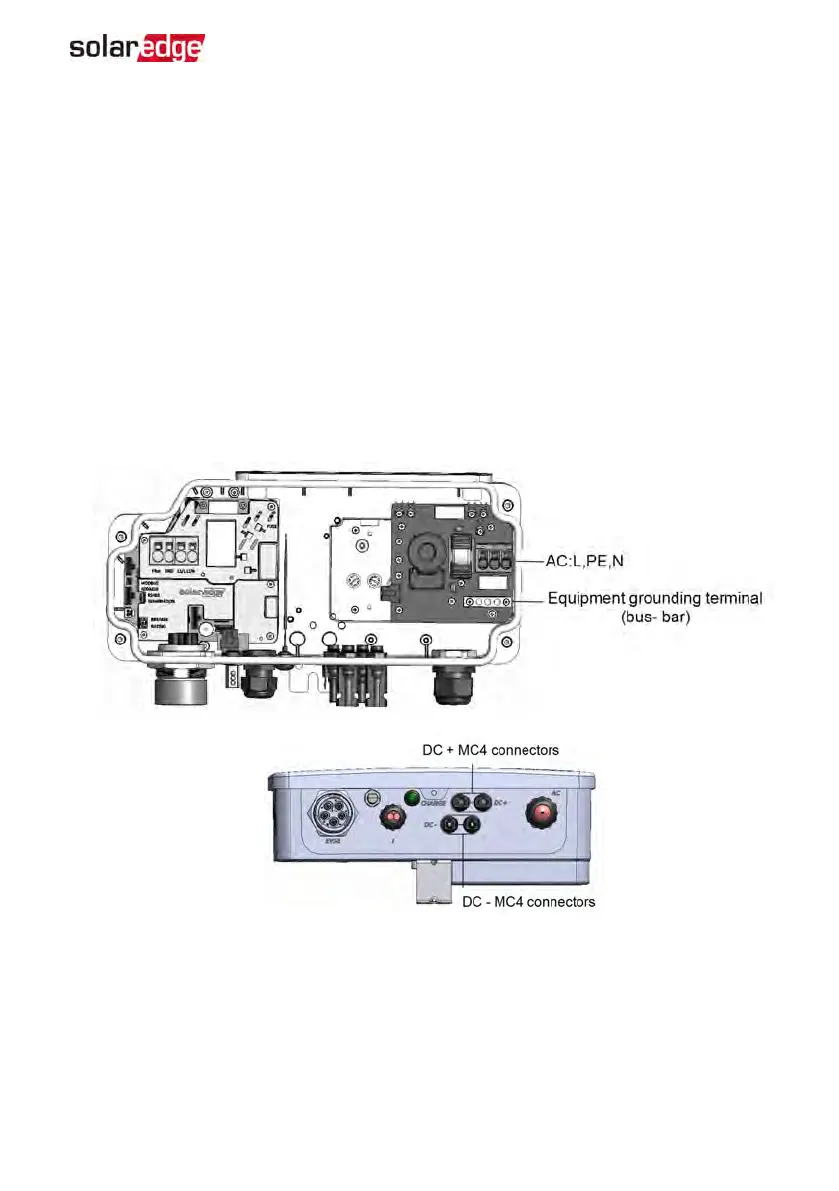

Figure 29: DC and AC connections
7.
Disconnect the wires connected between the inverter and the Connection Unit:
Appendix B: Replacing and Adding System Components71
EV Charging Single Phase Inverter Guide MAN-01-00583-1.5
