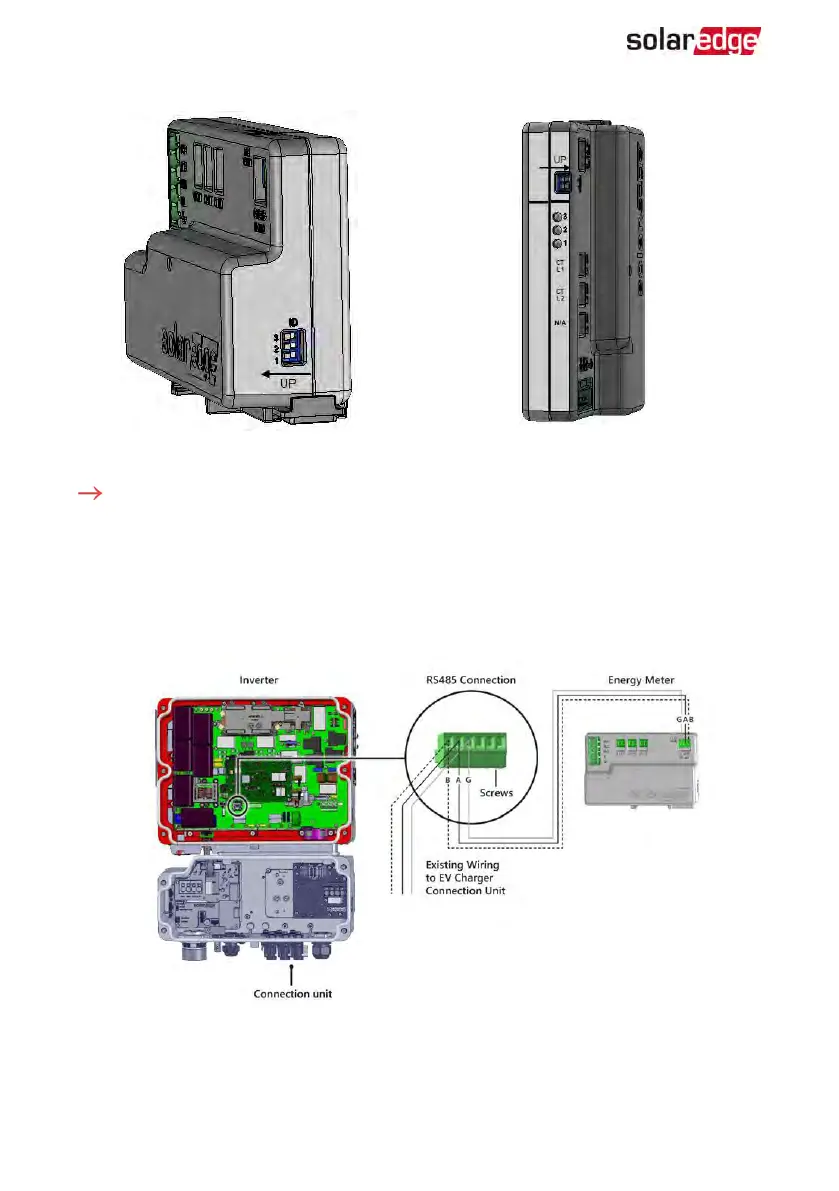

Figure 35: ID and termination DIP switches
To connect the Energy Meter to the inverter:
1. Connect one end of the communication cable to the Energy Meter, as explained in
the Energy Meter's installation guide.
2.
Remove the seal from one of the openings in the communication gland at the
bottom of the inverter and insert the RS485 wires from the meter through the
opening.
Figure 36: Meter connection
3.
Remove the 6-pin connector from the RS485-1 port on the communication board.
EV Charging Single Phase Inverter Guide MAN-01-00583-1.5
