Mechanical Installation 7828 Density Transmitter Technical Manual
2-4 78285000_AB

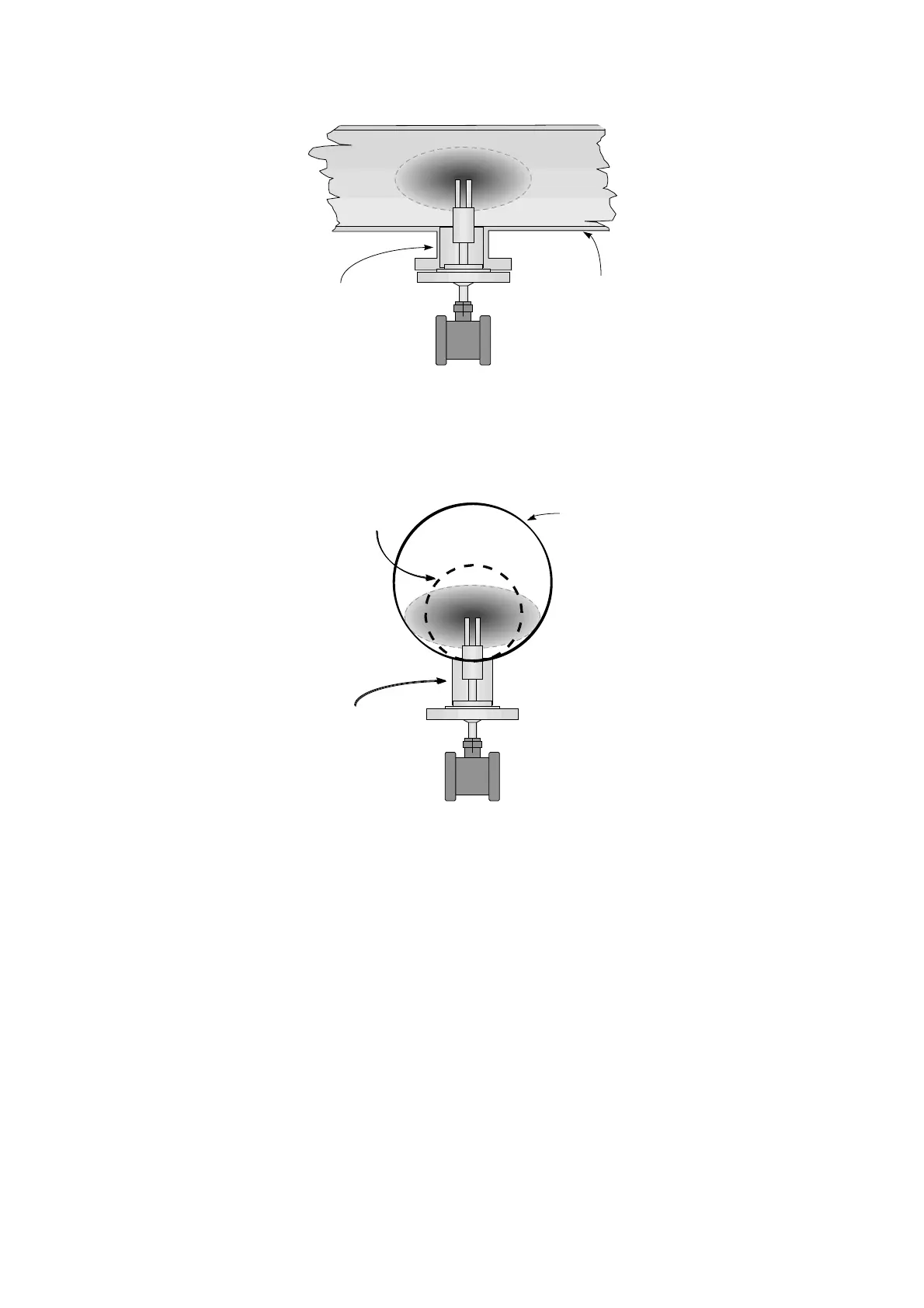

Top or Plan view
4” horizontal pipe
2”Schedule 40
Pocket or “T”
This next view shows other pipe outlines superimposed:
Top or Plan view
4” (100mm)
vertical pipe
6”(150mm)
vertical pipe
2”Schedule 40
Pocket or “T”
The smaller circle represents a 4” vertical pipe, which intersects the effective region. The
6” (150mm) pipe is the smallest pipe diameter to completely enclose the effective region
when the pipe is vertical. Thus smaller pipe diameters can lead to a variety of different
geometries which would each require a separate calibration.
An alternative condition is shown in the next diagram where the side pocket is extended
until it passes completely through the effective region producing a “core”:
