SolaX Power X3 Series User Manual

25

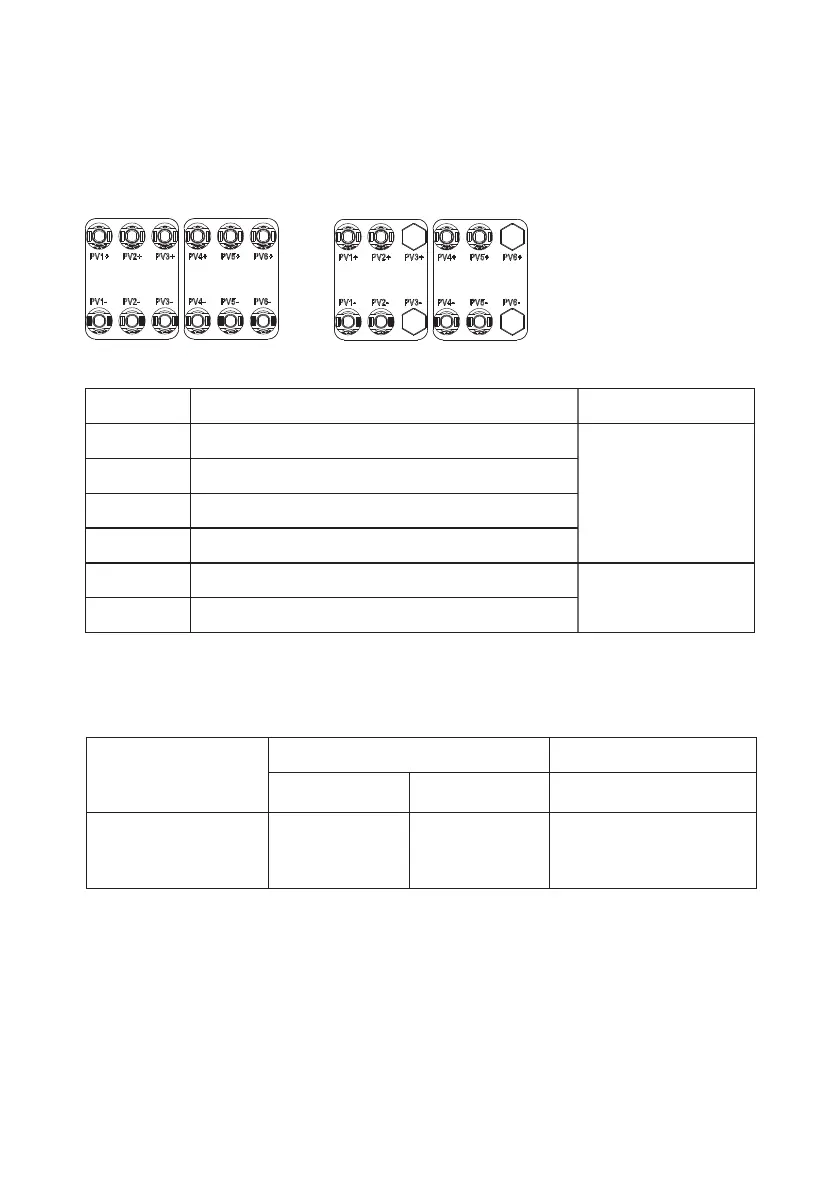

Table 5 2 Route connecting for the installation of PV strings and the inverter.
Input Route Number of Input Route Inverter model
1 Connected to any route
10K/12K/20K
25K/30K
2 Connected to routes 1 & 4
3 Connected to routes 1 & 2 & 4
4 Connected to routes 1 & 2 & 4 & 5
5 Connected to routes 1 & 2 & 3 & 4 & 5
6 Connected to routes 1 & 2 & 3 & 4 & 5 & 6
b. DC input cables of PV Strings: Table 5.3 lists the recommended outdoor copper-core DC
input cable specifications.
Table 5 3 Recommended DC input cable recommended specifications.
Cable type
Range
Recommended
Value
Range
Cross-sectional Area
2
Cable Outer Diameter
( )mm
( )mm
Common PV cables in
the industry (model:
PV1-F)
5~8
4~6
4
5 3 1 Preparation. .
PV Strings DC input cable and connectors have been prepared with below requirements:
Route connecting for the installation of PV strings and the inverter is shown in Table 5.2a.
25K/30K
25K/30K
10K/12K/20K

SolaX Power X3 Series Specifications

General

IP Rating	IP65
Frequency	50Hz / 60Hz
MPPT Efficiency	99.9%
Communication	WiFi / GPRS / Ethernet
Operating Temperature Range	-25°C to +60°C (derating above 45°C)
Number of MPPTs	2
AC Output Voltage	230V
MPPT Range	125V-550V
