SolaX Power X3 Series User Manual

35
7 User Interface
Table 7 1 LED indicator.
PV Indicator
LED indicator Description
on
blink
COM
Indicator
Communication data transmission is underway.
No external communication is connected or no communications
data transmission.
off
blink
Warning
Indicator
Refer LED status in warning table
No warning
off
on blink/
Grid
Indicator
on
blink
Status
Voltage of PV strings meet the conditions for feed-in
operation.
Voltage of PV strings does not meet the conditions for
feed-in operation.
Power grid abnormal. The conditions for feed-in operation are
not yet met.
Feed-in operation. The blink every cycle lasts 30s of the( )times
grid indicator present power size and after that the indicator,
keeps ON.
When less than 20% rated power blink one time, ;
20%~40% rated power blink twice, ;
40%~60% rated power blink three times, ;
60%~80% rated power blink four times, ;
80%~100% rated power blink five times, .

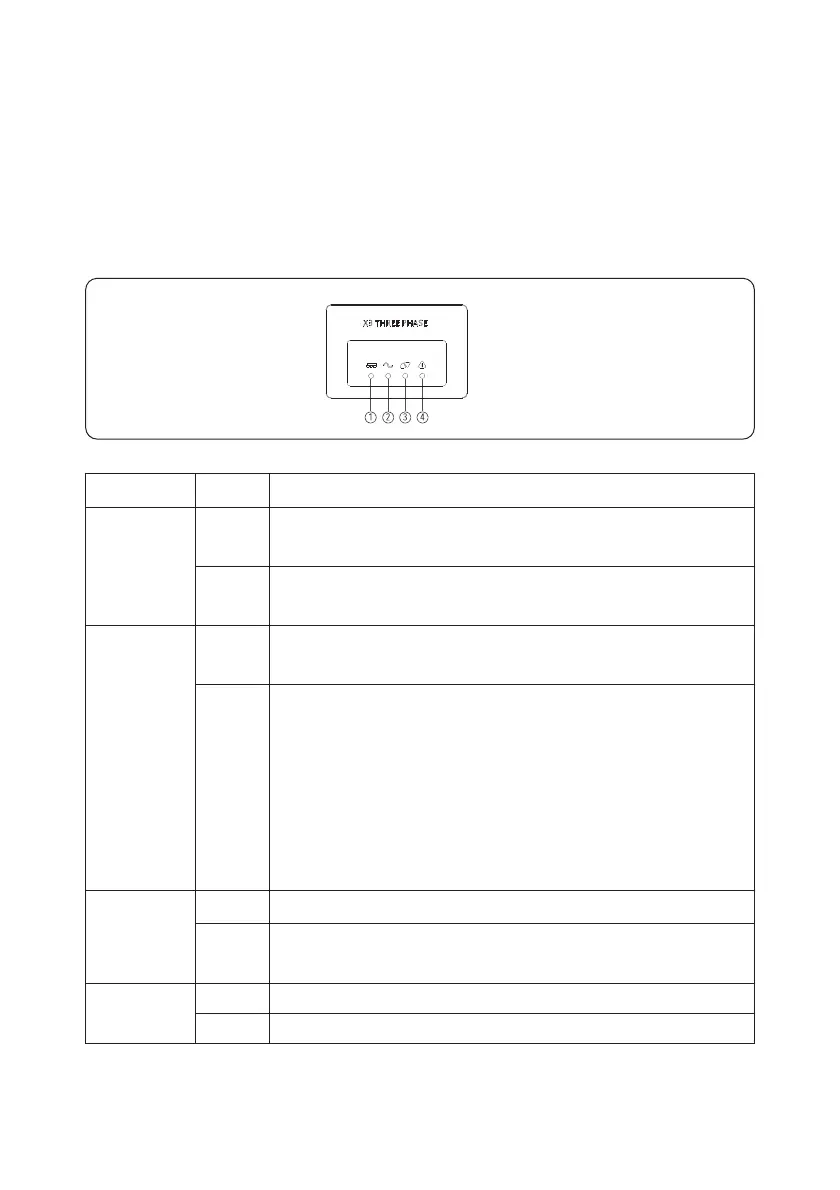

1 PV Indicator.
2 Grid Indicator.
3 COM Indicator.
4 Warning Indicator.
Inverter operation status can be obtained from observing LED indicator status. For more details,
refer to Table 7.1 LED Indicator status.

SolaX Power X3 Series Specifications

General

IP Rating	IP65
Frequency	50Hz / 60Hz
MPPT Efficiency	99.9%
Communication	WiFi / GPRS / Ethernet
Operating Temperature Range	-25°C to +60°C (derating above 45°C)
Number of MPPTs	2
AC Output Voltage	230V
MPPT Range	125V-550V
