S6
P
or
table
Digital
Color
Doppler
Ultrasound
System
Service
Manual
Press
Press
Pull
Pull

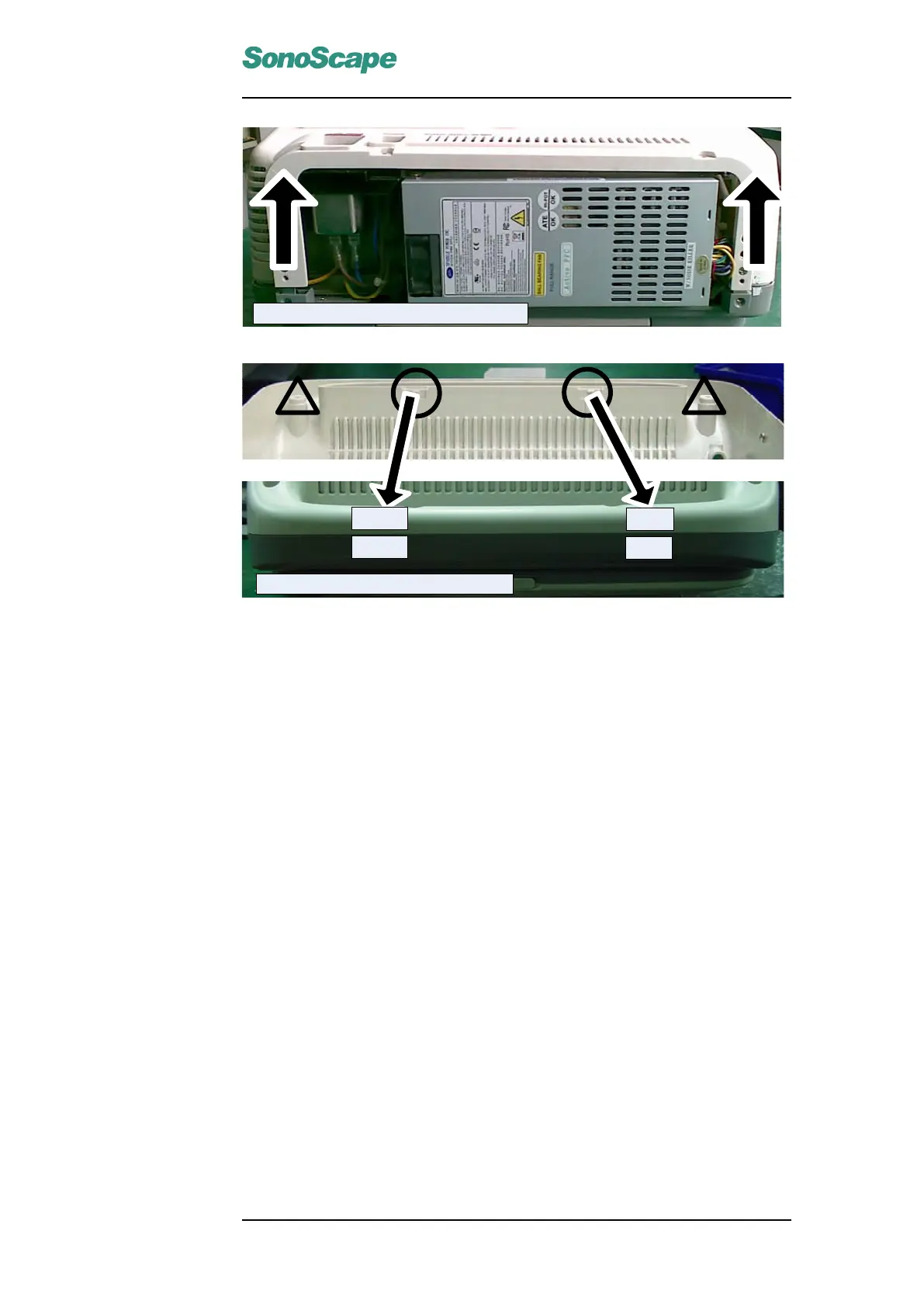

I. Loosen the back cover from the bottom side
II. Loosen the back c
over from the top side
Note:
T
wo
hooks
locks
the
back
cover
and
the
front
frame
together
.
I.
Loosen
the
back
cover
from
the
bottom
side,
II.
then
apply
force
as
indi-
cated
in
the
below
to
loosen
the
back
cover
from
the
top
side.
R
emove
the
back
cover
by
pulling
it
at
the
bottom
side.
P/N:
4720-0034-01A
5-5
34
36
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
7
Intended Users
7
Contact Information
7
Software Updates
8
Safety Considerations
9
Introduction
9
Symbol Used
10
Electrical Safety
10
Mechanical Safety
11
Human Safety
12
Description of the System
15
Product Description
15
System Configuration
16
Applications
18
Operating Modes
19
Combined Modes
19
Scanning Modes
20
Adjustable Parameters
20
B Mode
20
Spectral Doppler (PW/CW)
21
Color Doppler and Power Doppler
21
Archive and Backup
22
Measurements and Calculations
22
Principle of the S6 System
25
Introduction
25
System Block Diagram
25
Principle of Probes
26
Operating Modes
26
Functional Boards/Units of the S6 System
27
Functional Block Diagram
28
Explanations of the System Functions
28
Part List
29
S6 Disassembly Instructions
31
Bottom Cover
33
Chapter 5 S6 Disassembly Instructions this Chapter Contains Step-By-Stepinstructions on How to Disassemblethe S6 System for Servicing. the Flowchart (Figure 5.1, Page 5-2) Gives a
33
Back Cover
34
Motherboard
36
KEAA Board
37
Hdd
39
Voltage Conversion Board
40
Fans
41
MPC Board
42
Ultrasound Module Assembly
42
Ultrasound Metal Shield
43
Ultrasound Module
44
Power Unit
46
Keyboard Assembly
47
LCD Assembly
48
Wiring Instructions
51
Introduction
51
Wiring in the System Level
52
Detailed Connection Instructions
54
Control Cable for Keyboard Unit (3520-0501)
54
Connection Wires for Keyboard Small Board
54
Connection Wires for Trackball (3520-0503)
54
Connection Cable for Loud Speakers (3520-0504)
55
SATA Cable for HDD (3520-0506)
56
LVDS Signal Cable (3520-0507)
56
Chapter 6 Wiring Instructions 6.1 Introduction this Chaptercontains Information for Wiring Insidethe System. Section 6.2
57
Cables Connecting Keyboard and Motherboard
57
Connection Wires for System Fan(3520-0509)
57
DBF USB Signal Cable (3520-0510)
57
Connection Wires for System Fan
57
DBF USB Signal Cable
57
USB Cable for Μ-Scan Dongle(3520-0511)
58
Power Supply Cable for Voltage Inversion Board (3520- 0512)
58
USB Cable for Μ-Scan Dongle
58
ECG Internal Connection Cable (3520-0513)
59
Foot Switch Cable (3520-0514)
59
Composite Video BNC Cable (3520-0515)
59
ECG Internal Connection Cable
59
Foot Switch Cable
59
Composite Video BNC Cable
59
Main Power Cables from SMPS (3520-0520)
60
Install and Update the System Software
61
Introduction
61
Applicable Models
62
Update Files
62
Non-Kernel Level Update Instructions
63
Precautions
63
Non-Kernel Level Software Update Procedures
64
Upgrade Kernel and Software
65
Upgrade Using USB Boot-Up Disk
65
Notes
65
Upgrade Procedures
65
Activate the Micro-SCAN Function
70
System Functionality Tests
71
Introduction
71
Testing Software
71
Speaker Test
72
System Memory
72
TFC Test
72
Ec↔Fifo
72
Receive Bus
72
Detector to FIFO
72
ADC Test (Rx On)
72
Probe ID, HV and Temp
73
ADC Test (Rx Off)
73
Receive Channel Test
73
Single Element Test
73
Test Procedures
73
Run Test 8.2.1 (Speaker Test)
74
Run Tests from 8.2.2 and 8.2.9
75
Run Tests from 8.2.10 to 8.2.11
75
Key Simulation Test
76
Real-Time Test
76
Supported Peripherals
79
Introduction
79
Thermal Printer Installation
79
Network Printer Installation
80
Supported Models (Not Exhaustive)
80
Configurations
80
Network Connection with PC
85
System Troubleshooting
89
Introduction
89
Preparation
89
Functional Check
90
Basic Functional Tests
90
Functional Test for Critical Parts
91
Common Problems and Service Instructions
92
Repairing Procedures
93
Problem Analysis
94
System Maintenance
103
Backup
103
Host Maintenance
103
Probe Maintenance
105
Cleaning and Disinfecting Probes
106
Cleaning Probes
106
Disinfecting Probes
106
A Make a Bootable USB Key
107
Make Bootable Key Directly through PC
107
B Cables & Wires Inside the System
109
