Sonoscape S6

S6 Portable Digital Color Doppler Ultrasound System
Service Manual
5.12 LCD assembly
Instructions

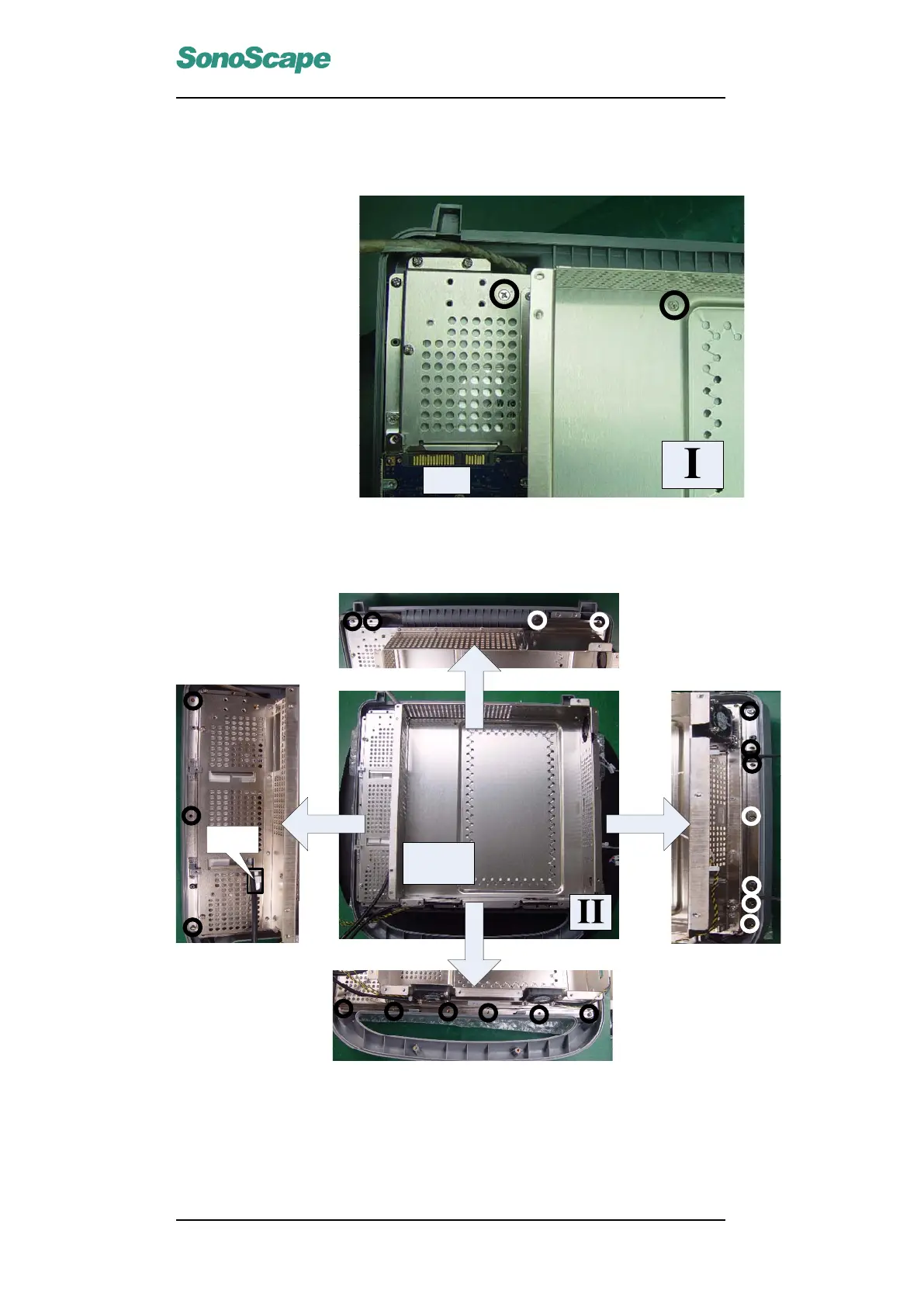

I. Remove the 2 Coun-
tersunk head screws
(M3×8) from the
ultrasound module
bracket.
HDD
II. Remove the 20 combination screws (M×6) fastening the ultrasound
module bracket. Carefully detach the front frame from the ultrasound mod-
ule bracket.
Ultrasound
Bracket
LCD Signal
Cable
P/N: 4720-0034-01A
5-18
