S6 Portable Digital Color Doppler Ultrasound System
Service Manual
5.11 Keyboard Assembly

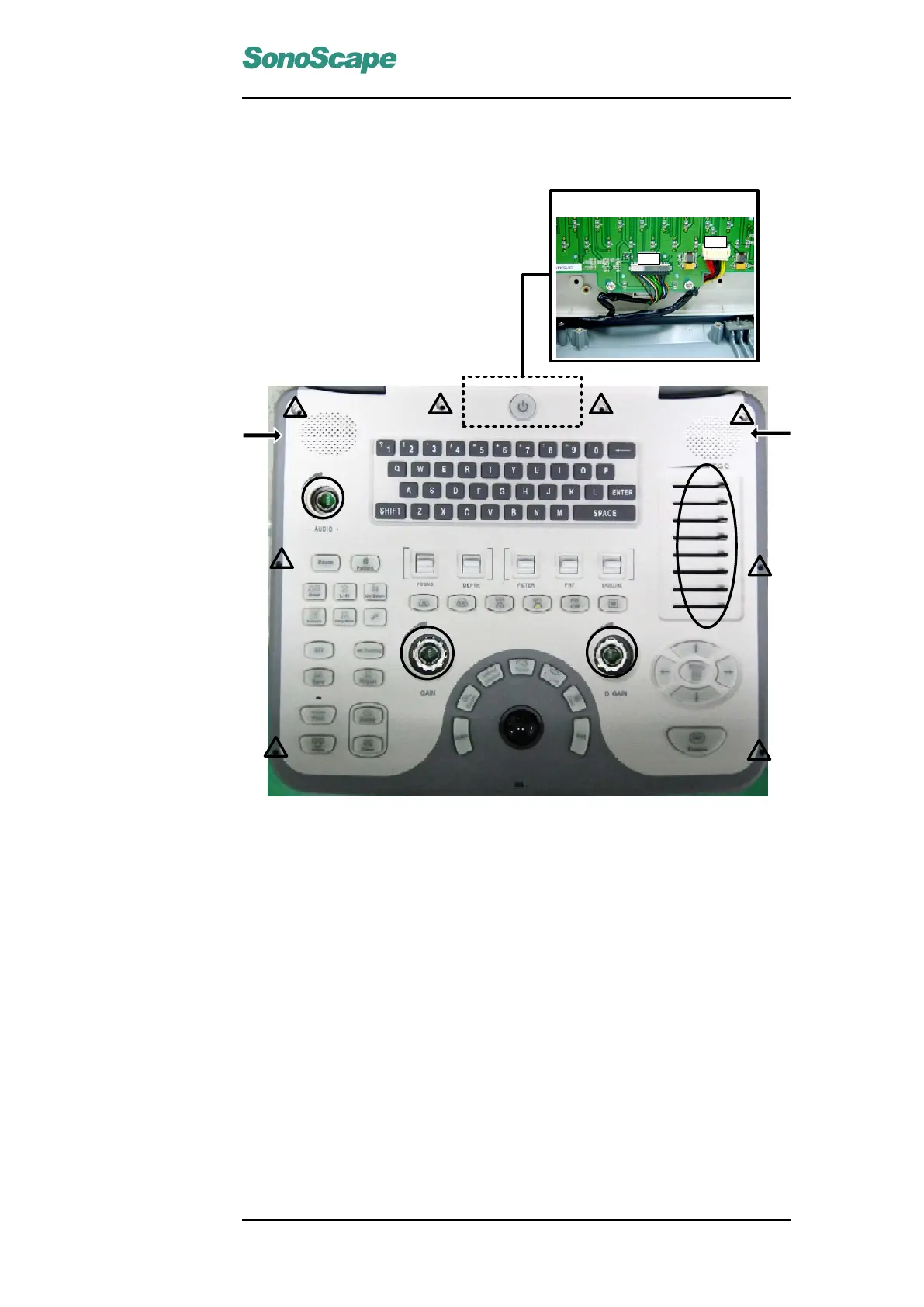

Viewed from underneath
J10
J11
Instructions
Lift off and remove the keycaps indicated in the picture.
Remove the four screws (indicated with triangles) from the keyboard cover.
Note: These screws are covered by rubbers. You need tweezers to remove them
before removing the screws.
Tilt the monitor to keep a 120
○
angle between the monitor and the key-
board. Carefully lift the keyboard up (apply force at the black arrow posi-
tions), and disconnect the keyboard data and power wires.
P/N: 4720-0034-01A
5-17
