5.9.1 Ultrasound Metal Shield

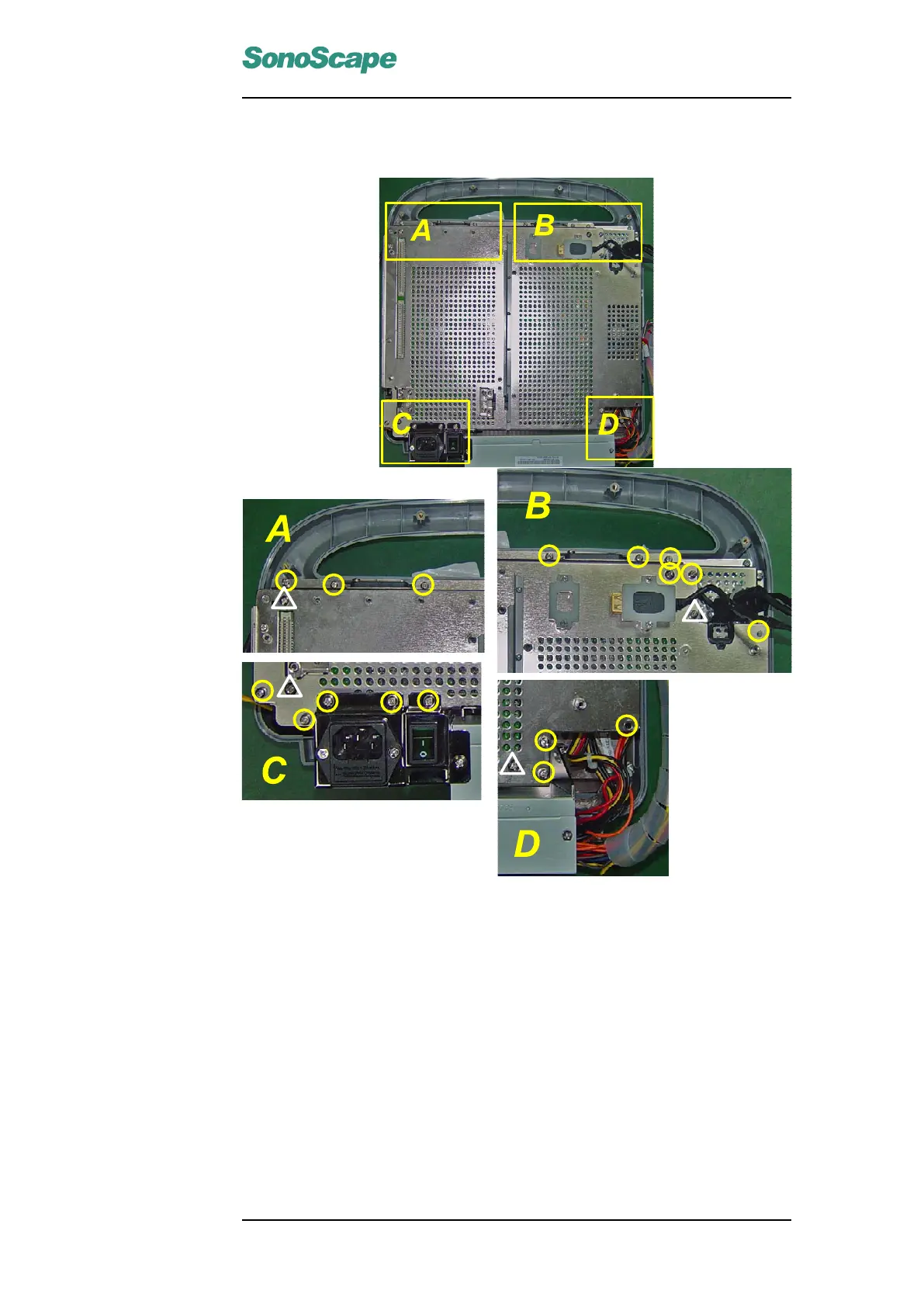

Figure 5.5: Remove the screws fastening the ultrasound metal shield
Instructions
Unfasten and remove all the seventeen combination screws (M3×6) and
four pan head screws (M3×6) indicated above.
Remove the metal shield.
