Attaching the Cable Holder
Chapter 2 Preparations
Attaching the Cable
Holder
The cables connected to the input adaptors can be gathered
together in the supplied cable holder.

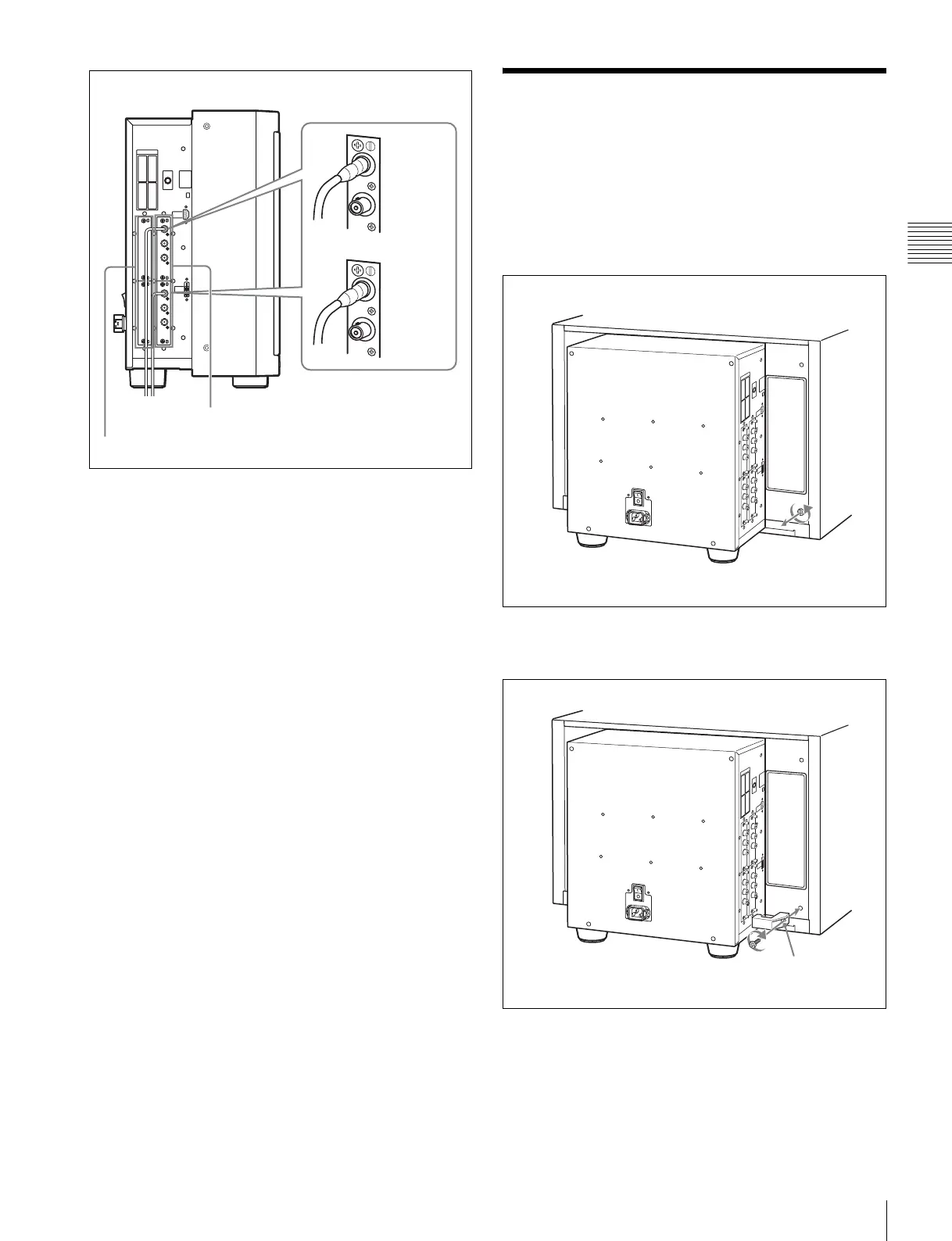

1 Remove the screw.
2 Attach the cable holder to the monitor with the
removed screw.
OPTION 1 and 2
OPTION 3 and 4
Example of dual-link
cable connection
INPUT 1
INPUT 2
INPUT 1
INPUT 2
Cable holder (supplied)
