Connections
Chapter 2 Preparations
1
Turn off the MAIN POWER switch of the monitor
before connecting the units.
2
Connect to the network by using a 10BASE-T/
100BASE-TX cable (shielded-type, optional).
• When an optional LAN cable is connected, use a
shielded-type cable to prevent a malfunction due to
noises.
• We recommend to use an optional switching hub
with auto selection function (AUTO MDI/MDI-X)
of a straight/cross cable.
When the switching hub without auto selection
function is used, connect the monitor and switching
hub with the straight cable, and the controller and
switching hub with the cross cable.
3
Connect the output cable on the AC adaptor supplied
with controller to the DC 5V/12V IN connector of the
controller.
When the multiple units are connected, set for the LAN
before setting the NETWORK switch to LAN (page
27).
4

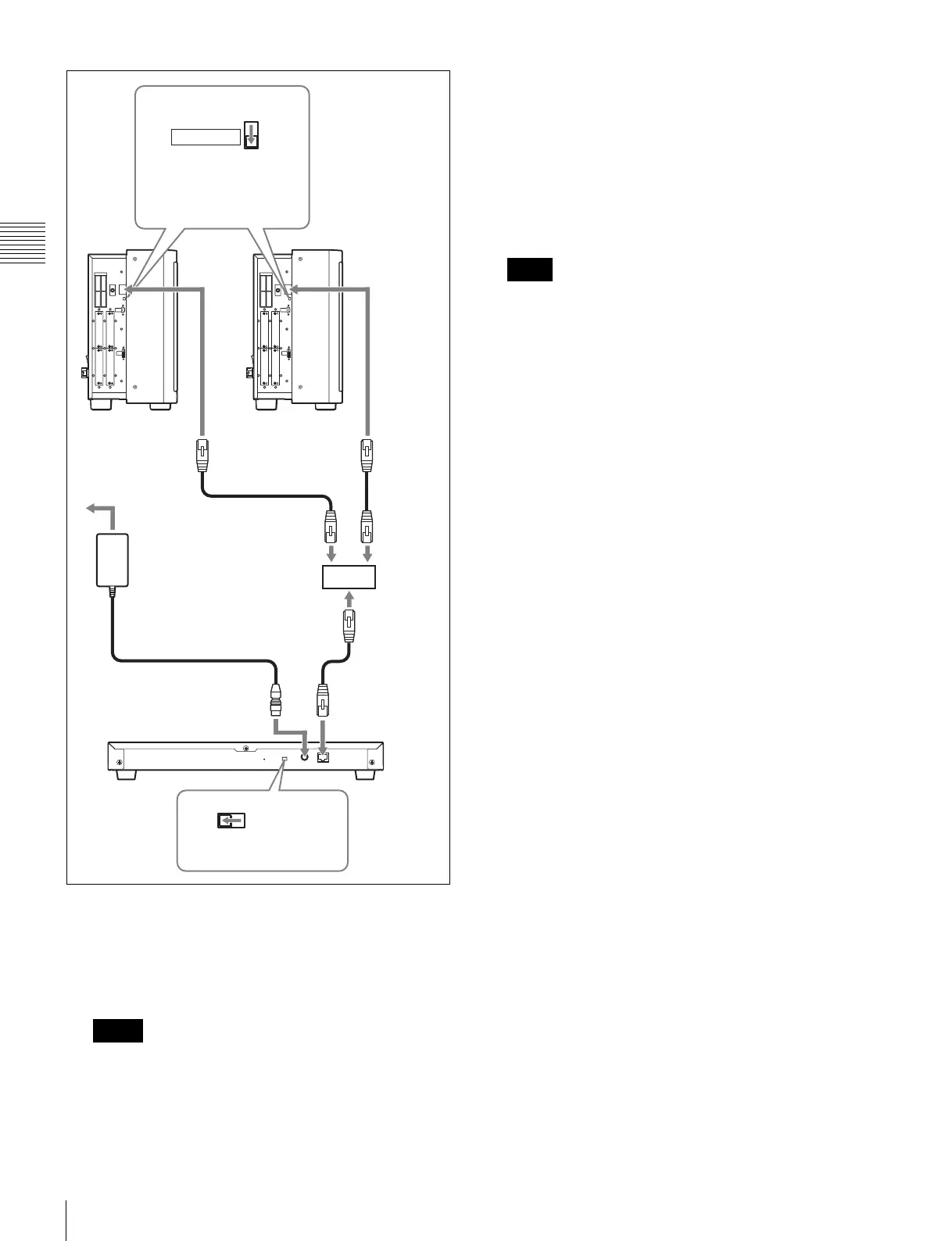

Set the NETWORK switches of each monitor and the
controller to LAN.
Notes
LAN
PEER TO PEER
NETWORK
LAN
PEER TO
PEER
NETWORK
Controller
(BKM-16R)
Monitor
LAN (10/100)
connector
DC 5V/12V IN
connector
LAN (10/100)
connector
Set to LAN.
Switching hub
(recommended: with
AUTO MDI/MDI-X
function)
Monitor
Set to LAN.
LAN (10/100)
connector
AC adaptor (supplied
with the BKM-16R)
Note
