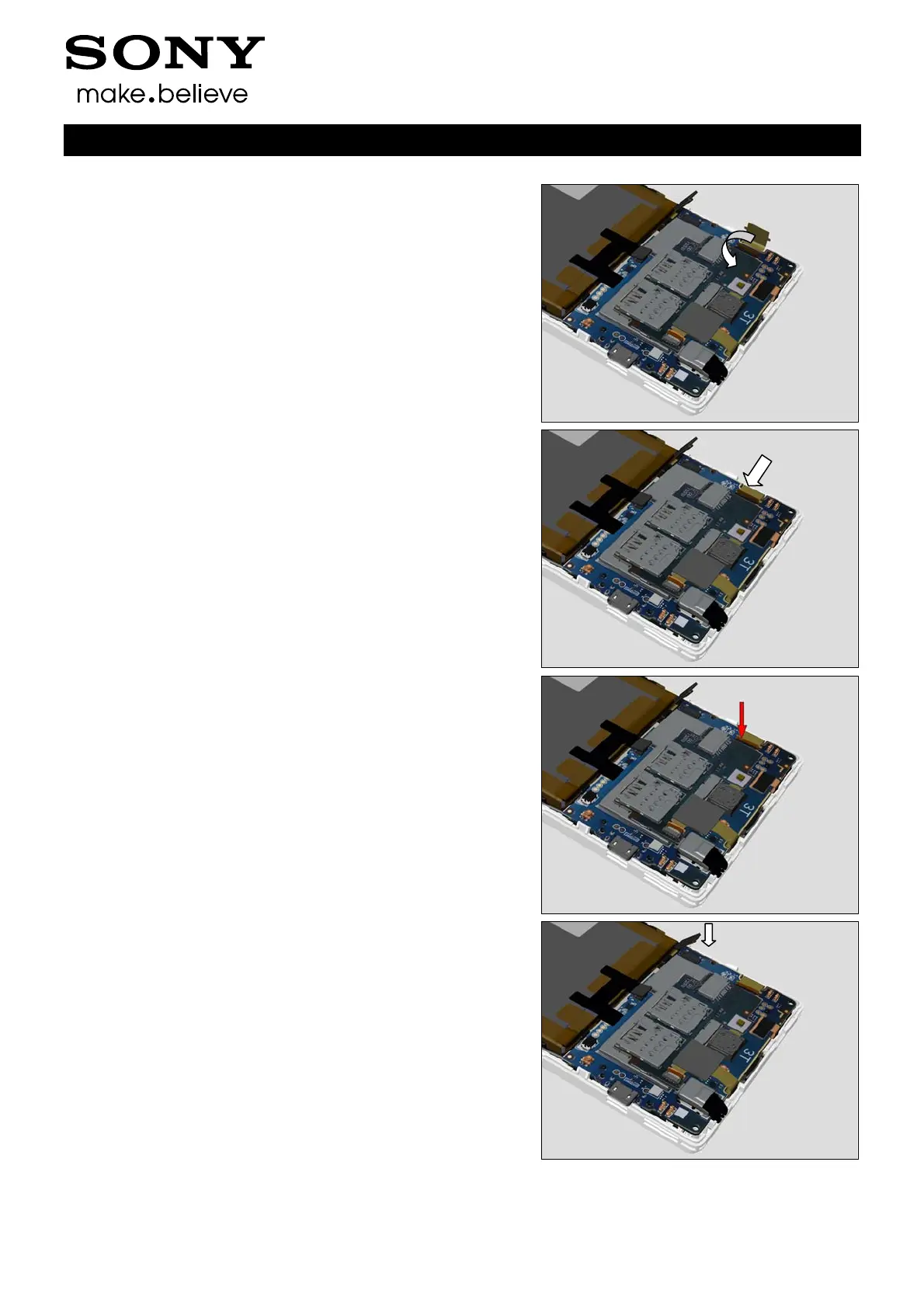

Reassembly
Turn around LCM FPC back on Main PBA.
Insert LCM FPC into its ZIF connector.
Close the Touch Panel FPC ZIF connector.
Assemble the Link FPC BtB connector on Main PBA.
To Next Page
