23
Fig. 3-4

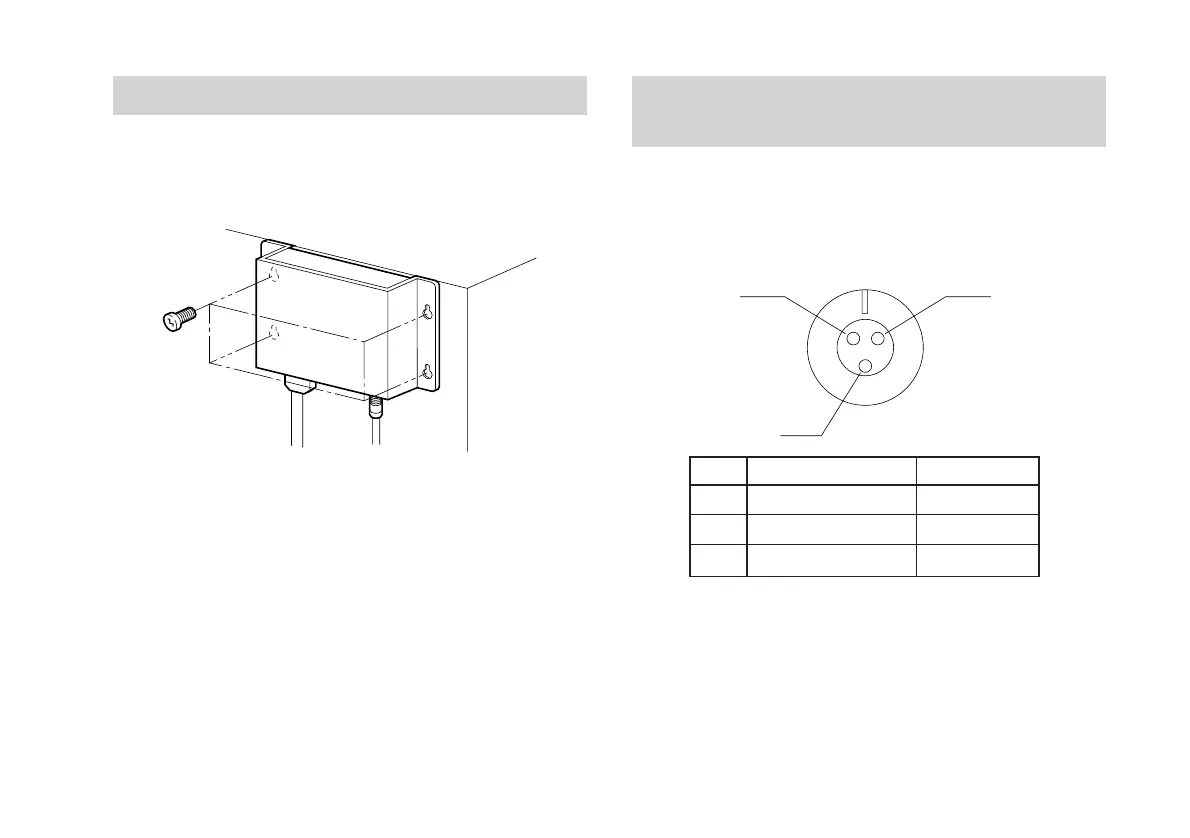

3-4. Detector Installation
To install the detector, use four accessory screws (+PS M4 ×
10) to fasten the detector.
3-5. Reference Point Signal Input Connector
(PL23)
Connector used: (Tajimi Musen)
R03-RB3F Receptacle
R03-PB3M Plug (Provided)
Note: Connect the shielding to the shell of the connector.
A
B
C
No.
A
B
C
Signal
Power Supply (+Vcc)
Output Signal
Power Supply (0 V)
Cable Color
Red
White
Black
To Next Page
