Sony DSC-P31M - Board; Service Position (SY-075 Board: Side A)

2-8
DSC-P31/P31M
2-12. SY-075, CH-109 BOARD

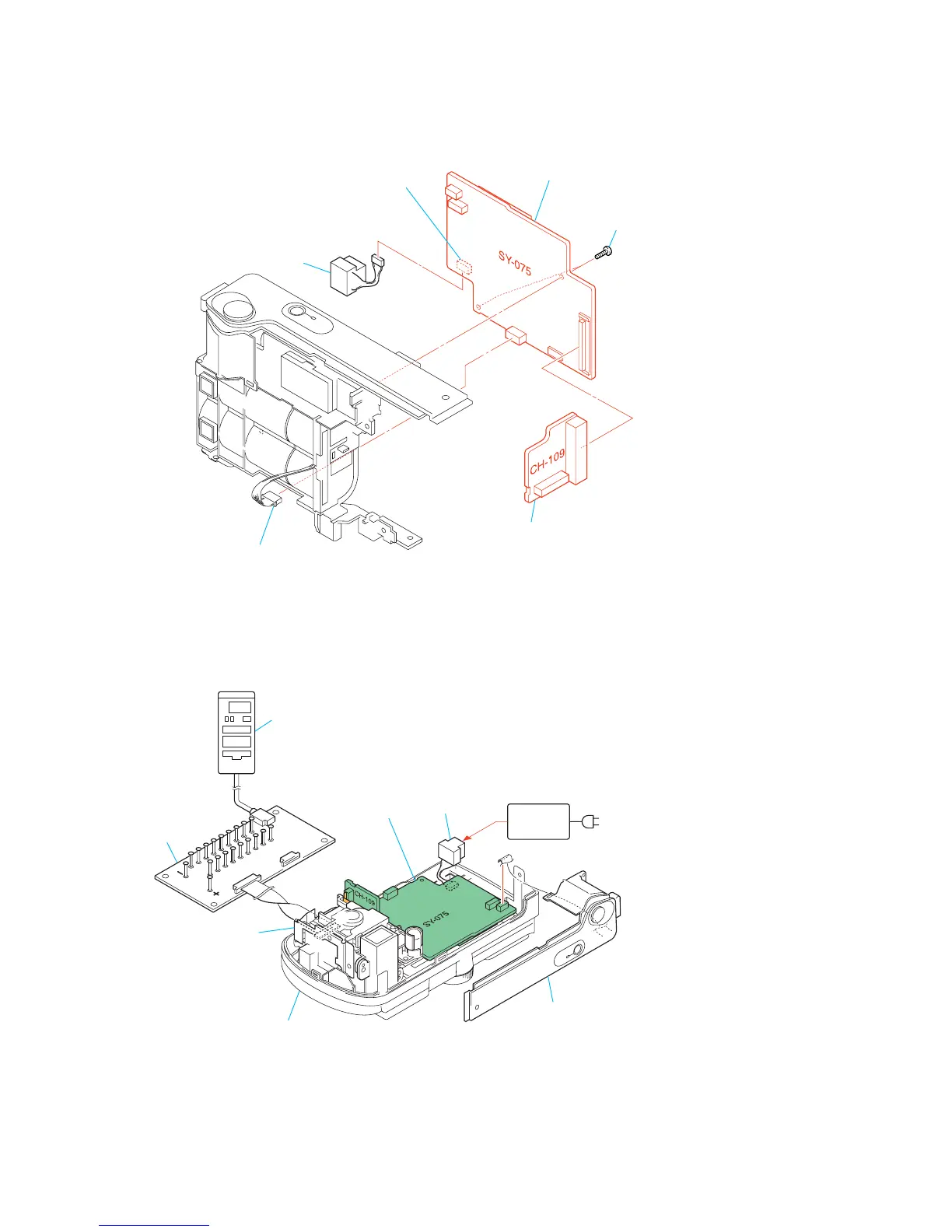

[SERVICE POSITION (SY-075 BOARD: SIDE A)]
1 Two screws
(DIA. 1.7
× 4)
4 CH-109 board
2 SY-075 board
5 Connector (CN001)
6 DC jack
3 Connector (CN904)
SY-075 board
Adjustment remote
commander
Lens block assembly
Cabinet (upper) block assembly
Cabinet (rear) block assembly
DC jack
CPC-9 jig
(J-6082-393-C)
(Note 1, 2)
1
1
18
18
DC-IN
AC power
adaptor
Note 1: Don’t use the 12 pin flexible board of CPC-9 jig.
It causes damage to the unit.
Note 2: The old CPC-9 jig (Parts code: J-6082-393-B) Cannot be used,
because it cannot operate the adjustment remote commander.
