Remote control
RS-232C D-sub 9-pin (male)
RS-422A D-sub 9-pin (female)
CONTROL S IN Stereo minijack
LANC Stereo mini-minijack
LCD screen
Picture 5.1 cm (2 type)
Total dot number 123 200 (560 × 220)
General
Power requirements
100 to 240 V AC, 50/60 Hz
Power consumption
22 W (during playback)
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Storage temperature
–20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions Approx. 212 × 98 × 392.8 mm
(8
3
/8 × 3
7
/8 × 15
1
/2 inches)
(w/h/d, including projecting parts
and controls)

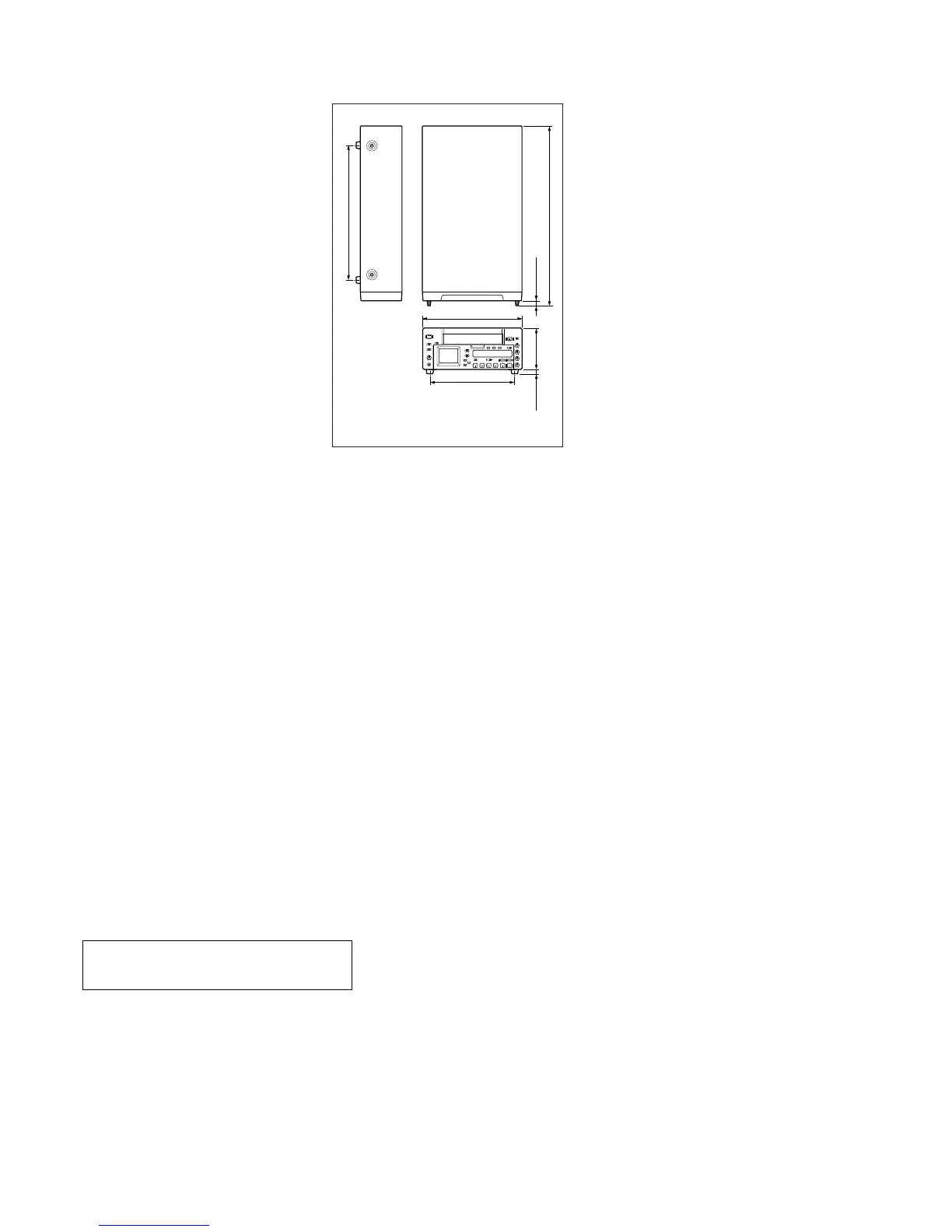

175 (7)
212 (8
3
/ 8 )
392.8 (15
1
/
2
)
88 (3
1
/
2
)10 (
13
/
32
)
11.2 (
15
/
32
)
284 (11
1
/
4
)
Unit: mm (inches)
Mass Approx. 4.6 kg (10 lb. 2 oz.)
Supplied accessories
Remote Commander (1)
AC power cord (1)
Size AA batteries (2)
Cleaning cassette (1)
Operating instructions
Interface Manual for Programmers
(1)
Design and specifications are subject to change
without notice.
