2-1
DSR-45/45P
1 Screw (B3)
2 Tw o screws
(2 × 4.5)
0 Front panel block assembly
3 Tw o claws
4 Tw o claws
6 Flat cable (FVF-009)
(CN702)
7 Harness (VD-060)
(CN709)
9 Harness (PV-134)
(CN1502)
8 Harness (PV-133)
(CN1503)
5
Note: Follow the disassembly procedure in the numerical order given.

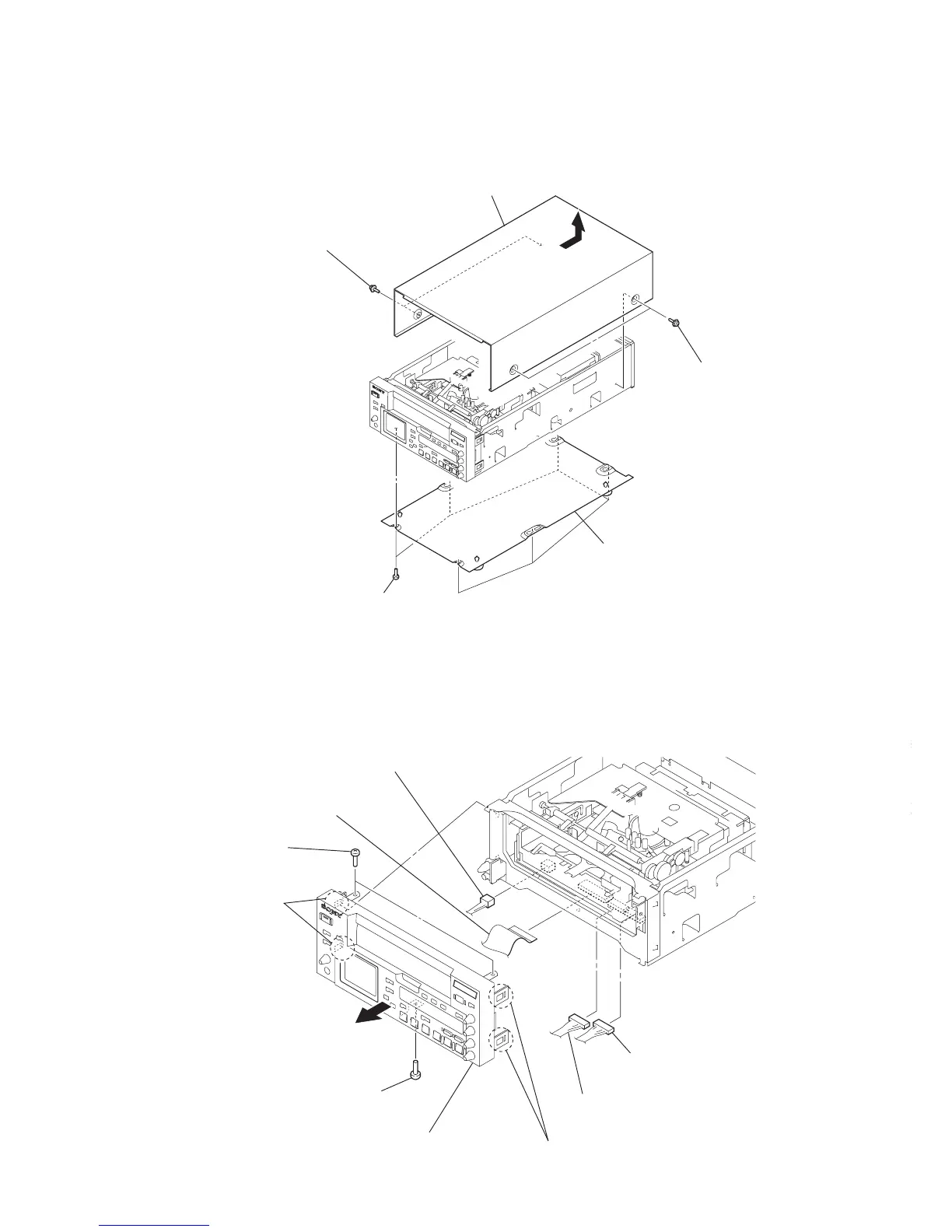

2-1. UPPER CASE, BOTTOM PLATE
2-2. FRONT PANEL BLOCK ASSEMBLY
SECTION 2
DISASSEMBLY
1 Tw o screws
(M3 case)
3 Upper case
2 Tw o screws
(M3 case)
4 Six screws (B3)
5 Bottom plate
