Sony DSR-45 - Mechanism Deck Assembly (Drum Assembly)

6-6
DSR-45/45P

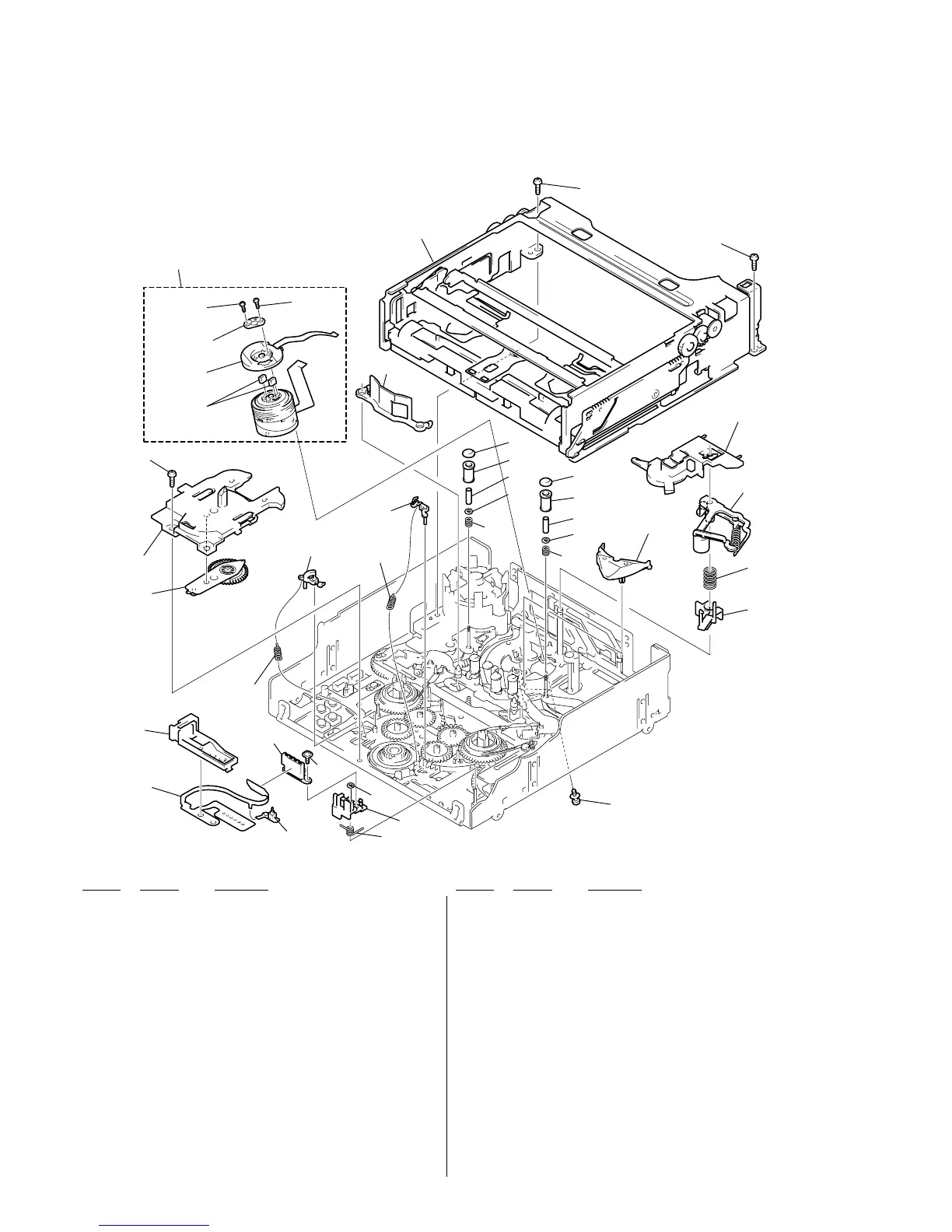

6-1-6. MECHANISM DECK ASSEMBLY
(DRUM ASSEMBLY)
Ref. No. Part No. DescriptionRef. No. Part No. Description
701 1-675-561-11 FP-104 FLEXIBLE BOARD
* 702 3-057-351-01 GUIDE, MIC BASE
703 3-057-350-02 BASE, MIC
704 3-732-817-01 SCREW (2X4.5), TAPPING
705 3-057-319-01 RETAINER, PENDULUM
706 X-3949-922-1 ARM ASSY, PENDULUM
707 3-057-286-01 SPRING, EXTENSION (BRAKE)
708 3-057-280-01 ARM (S), BRAKE
709 3-057-279-01 BRAKE (T), RATCHET
710 3-057-232-01 SPRING, COMPRESSION (TG)
711 3-057-238-01 RING, TG
712 3-057-237-01 SLEEVE, TG
713 3-057-235-01 ROLLER, TG
714 3-057-234-01 FLANGE, TG UPPER
715 3-057-379-01 GUARD, GUIDE
716 A-7094-608-B SCREW ASSY, DRUM FITTING
717 3-973-171-01 SUPPORT, TAPE
718 3-057-227-01 RETAINER, TAPE
719 3-973-818-01 SPRING, COMPRESSION (TAPE RETAINER)
720 X-3949-915-1 ARM ASSY, PINCH
721 3-057-228-01 CAP, DRUM
722 A-7094-602-B COMPARTMENT BLOCK ASSY
723 3-726-829-01 WASHER, STOPPER
724 3-057-353-01 SPRING, MIC BASE
725 3-318-201-11 SCREW (B) (1.4X3), TAPPING
726 3-973-266-01 SCREW (M2X2.2 (MEK)), HEAD
727 3-703-816-74 SCREW (M1.4X4.5)
728 X-3944-897-1 FPC ASSY, MOTOR
729 1-770-363-11 CONNECTOR, ELASTIC
CN004 1-770-312-21 CONNECTOR 4P
M901 A-7048-947-A DRUM ASSY (DEH-21A-R)
S004 1-762-351-21 SWITCH, PUSH (1 KEY) (REC PROOF)
ns: not supplied
M901
ns
S004
701
703
723
724
702
726
705
706
707
707
708
709
715
722
727
727
728
729
717
721
716
718
719
720
CN004
714
712
711
713
710
714
712
711
713
710
704
704
-77.203
725
