Sony F35 - Connector Pin Assignments

140

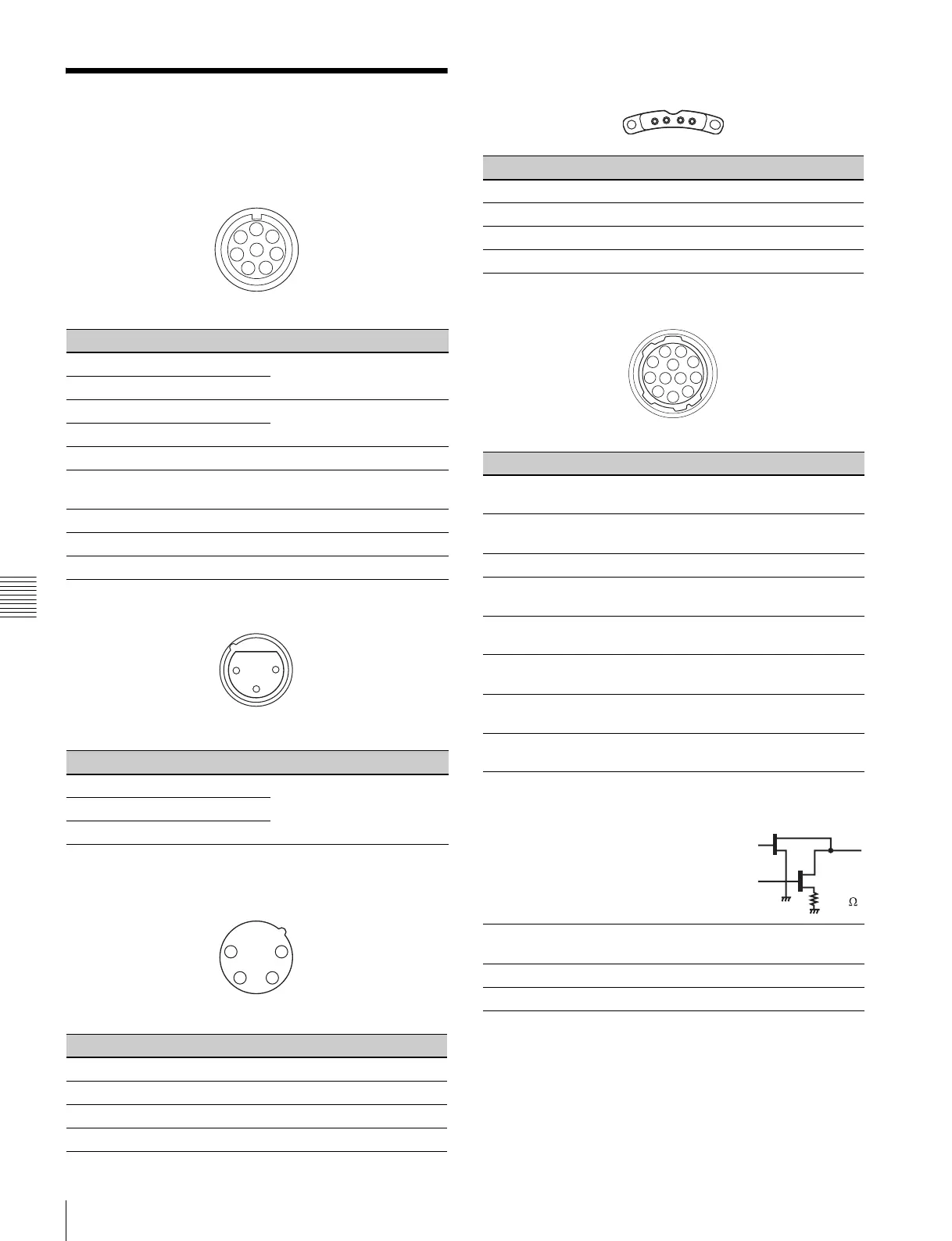

Connector Pin Assignments
Appendixes
Connector Pin
Assignments
REMOTE (8-pin female)
AUDIO IN CH-1/CH-2 (3-pin female)
(0 dBu=0.775 Vrms)
DC IN 10.5-17 V (4-pin male)
Lens-mount hot shue (4-pin)
LENS (12-pin female)
No. Signal I/O Specifications
1TX (+) OUT SERIAL Data out
2TX (–)OUT
3RX (+) IN SERIAL Data in
4RX (–)IN
5 TX-GND — GND for TX
6 UNREG OUT +10.5 to +17 V dc, 200mA
(max)
7 UNREG-GND — GND for UNREG
8VIDEO OUT75Ω, 1.0 Vp-p
CHASSIS GND — CHASSIS GND
No. Signal I/O Specifications
1 AUDIO 1/2 (G) — –44 dBu (for MIC)/
+4 dBu (for LINE)
2 AUDIO 1/2 (X) IN
3 AUDIO 1/2 (Y) IN
No. Signal I/O Specifications
1 GND — GND for DC (+)
2 NC No connection
3 NC No connection
4 DC (+) IN +10.5 to 17 V dc
1
7
8
2
54
36
(External View)
2
3
1
(External View)
3
2
4
1
(External View)
No. Signal I/O Specifications
1 RX IN SERIAL DATA in
2 TX OUT SERIAL DATA out
3 GND GND for +24 V
4 +24 V OUT +24 V, 200 mA (MAX)
No. Signal I/O Specifications
1RET VIDEO
ENABLE
IN ENABLE: 0 V
DISABLE: +5 V or OPEN
2 VTR START/
STOP
IN ENABLE: 0 V
DISABLE: +5 V or OPEN
3 GND — GND for UNREG
4 SERVO AT/
MAN
OUT AUTO: +5 V
MANU: 0 V or OPEN
5 IRIS CONT OUT +3.4 V (F16) to +6.2 V
(F2.8)
6 UNREG OUT +10.5 V to +17 V
500 mA (MAX)
7IRIS
POSITION
IN +3.4 V (F16) to +6.2 V
(F2.8)
8 IRIS AT/MAN OUT AUTO IRIS: 0 V
MANUAL IRIS: +5 V
9 EXTENDER
ON/OFF
IN EX 2 ON: GND
EX 0.8 ON: GND at 30kΩ
OFF: OPEN
10 ZOOM
POSITION
IN WIDE: 2 V
TELE: 7 V
11 NC No connection
12 NC No connection
1
23
4
19
28
3
10
12 11
4
7
6
5
(External View)
EX 2 ON
EX 0.8 ON
30 k
