FY17 2K System Block Diagram (KML)

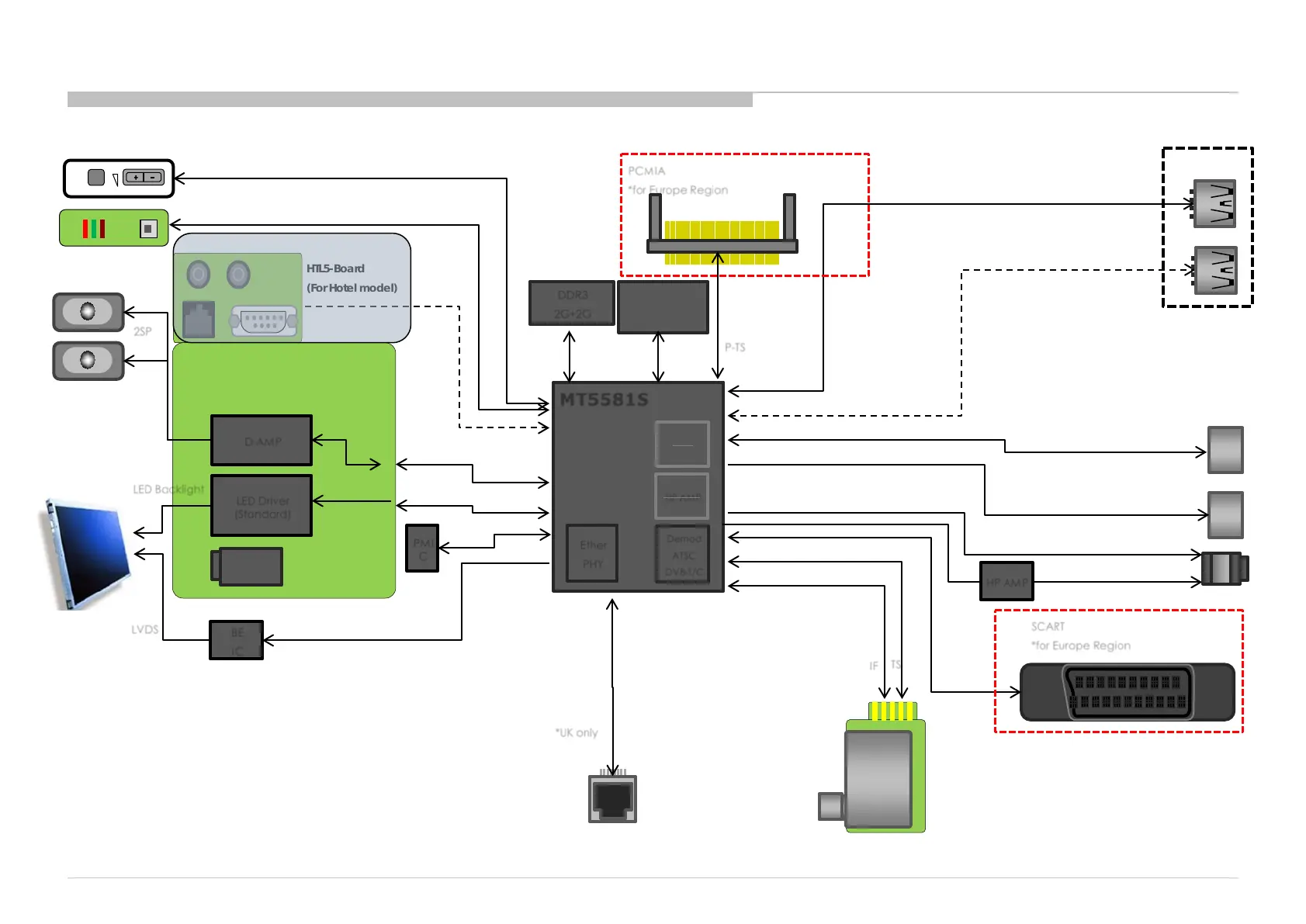

5-2. Block Diagram
154
IF
TS
MT5581S
Ether
PHY
Demod
ATSC
DVB-T/C
DDR3
2G+2G
*Depends on destination
USB2.0 Port 0
USB2.0 Port 1
USB Stack
D-AMP
LED Driver
(Standard)
DC-IN
BE
IC
2SP
LVDS
LED Backlight
19.5V from AC
adapter
I2C
PWM
I2C
HTL5-Board
(For Hotel model)
TBC
eMMC4.5
4GB
H-Board
Side-Key
I / O
CH/INPUT
PCMCIA
P-TS
SCART
*for Europe Region
PCMIA
*for Europe Region
PMI
C
I2C
Ether
*UK only
MHL
HP AMP
HDMI 1
(ARC)
HDMI 2
HP/A-OUT
HP AMP
SPDIF
