Service manual (Assemble and Dissemble Tuner Module)
20°
20°
Reference paper for 20 degree
(If need please use for fit by cutting this paper)
For removing Tuner Module,
After un screwed, Automatically the Module
will float to correct degree.
So please extract it with keeping this degree.

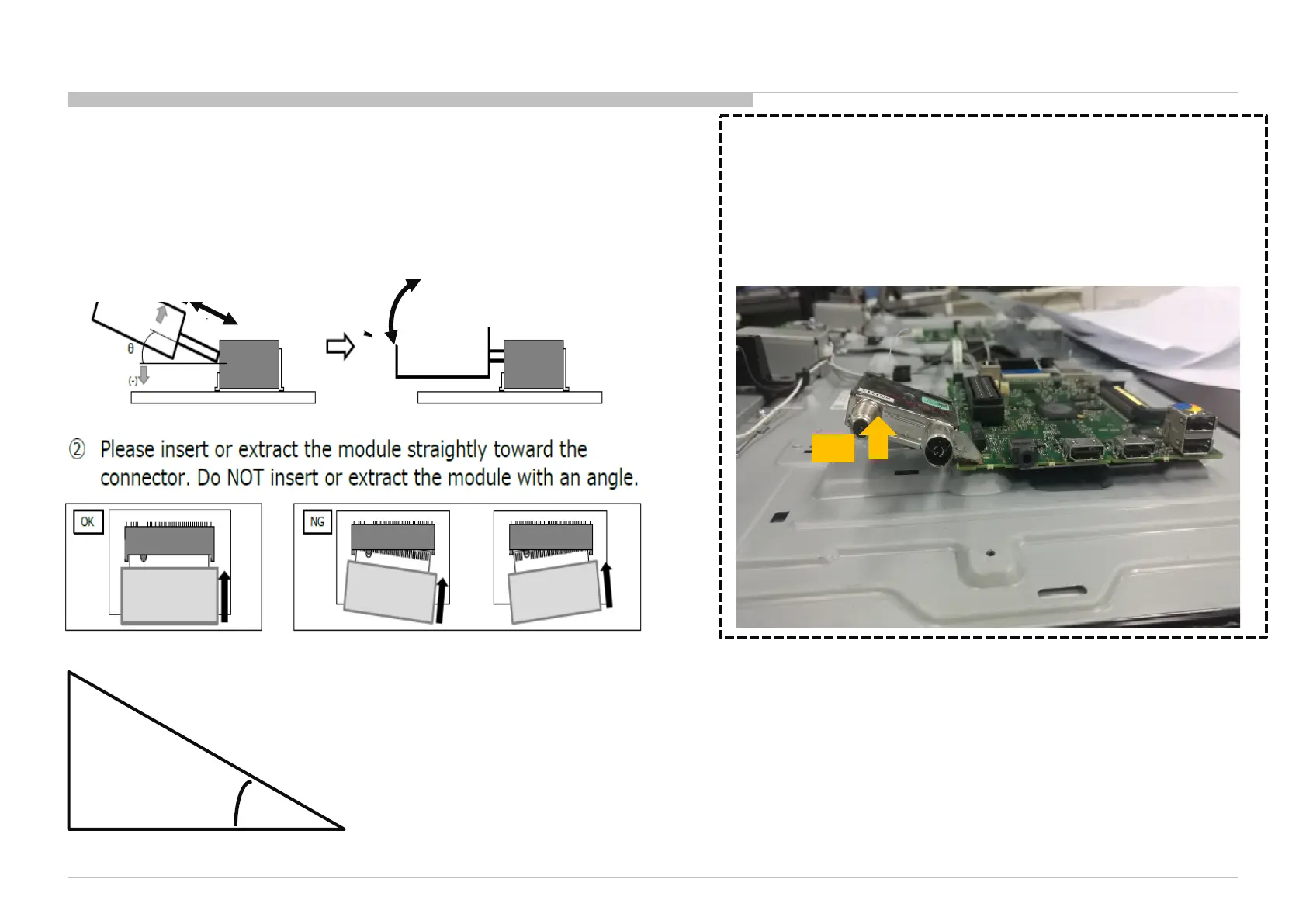

① The insertion & extraction angle of the module is permitted to
specified degree for connector
Push down to screw.
θ≒20°
Service manual (Assemble and Dissemble Tuner Module)
3f.3 Assemble and Disassemble Tuner Module
