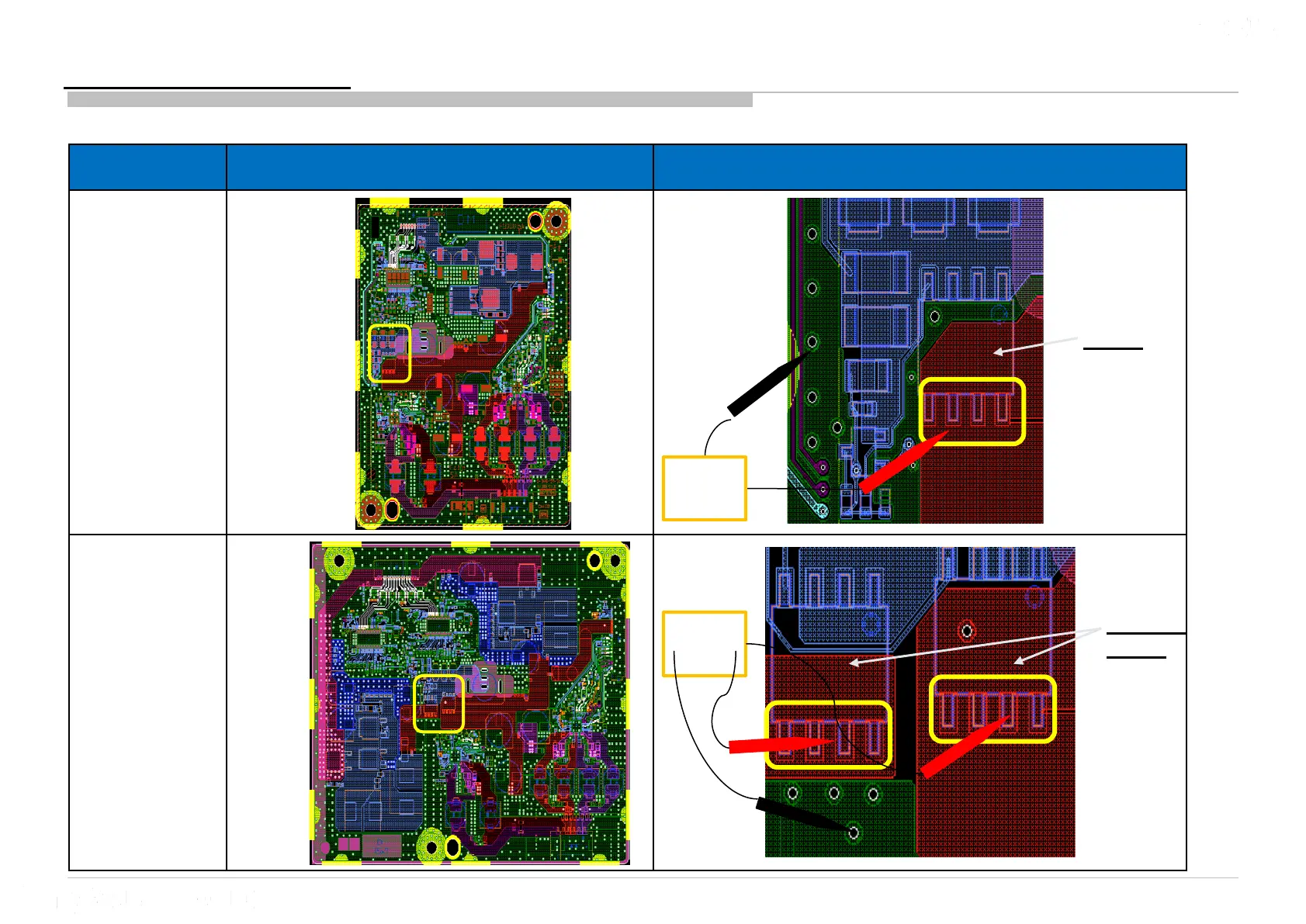

Board Name Board PWB (A side) Detail
LK1
(Q6020)
LK2
(Q6020 &
Q6022)
3a.1 : 2x Blinking – Main Power Error
LK Board (Checking point)
Q6020 &
Q6022
Q6020
19.5
V
19.5
V
