26
Board PWB
(A side)
Details
Purpose :
Checking Audio
Error pin not
short to GND
Checking fuse
condition
Change Audio IC
if need
Audio IC each pin
checking, please
refer to “Audio
No Sound”
3b.1 : 3x Blinking – Audio Error

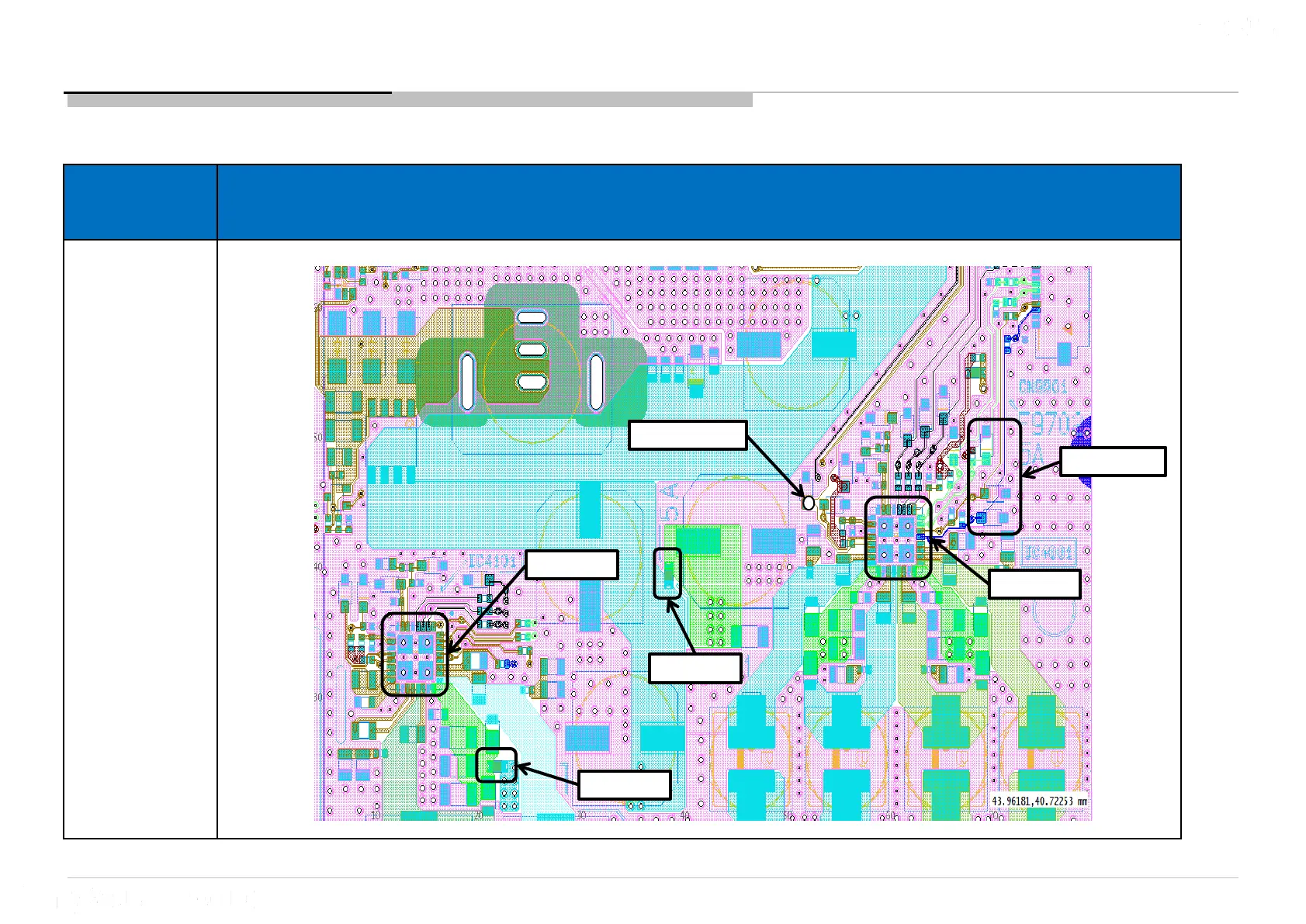

LK1/2 Board (Checking Point)
F4001
IC4001
IC4101
F4101
Audio Error pin
Zener Diode
