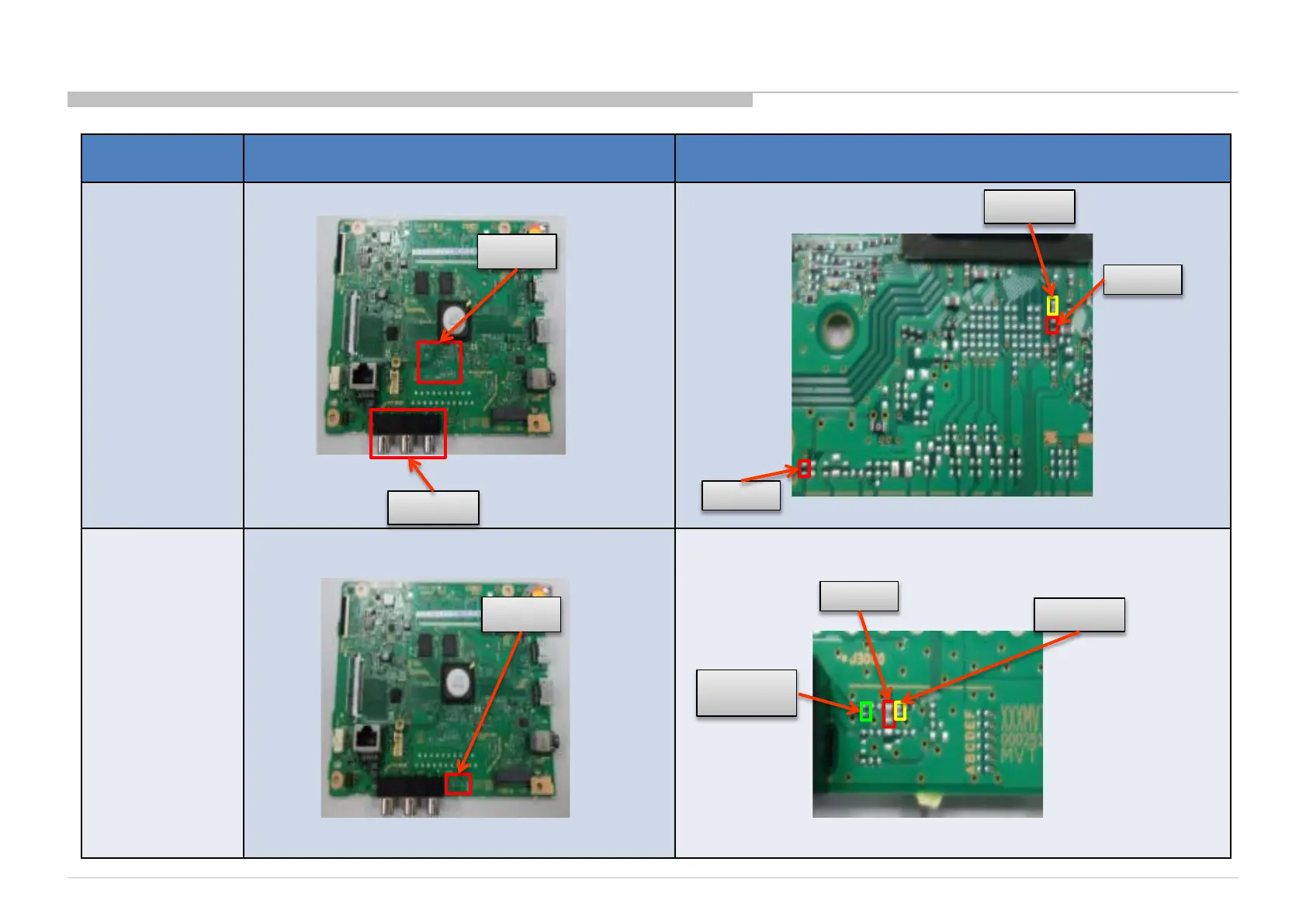

3f.9.1 Video Analog Signal Path – No Picture – Checking Point - WW Destination (BLM_Others)
3f.9 Video Analog Signal Path
Board Name Board PWB (A side) Details
BLM_Others
J3002
R3021
C3007
R3018
BLM_Others
VD3001
R3005
C3001
Detail
s
J3002
Detail
s
VD3001
R3005
C3001
C3007
R3021
R3018
76
