Sony HCD-BX2 - Page 17

1717
HCD-BX2/DX2/DX2B

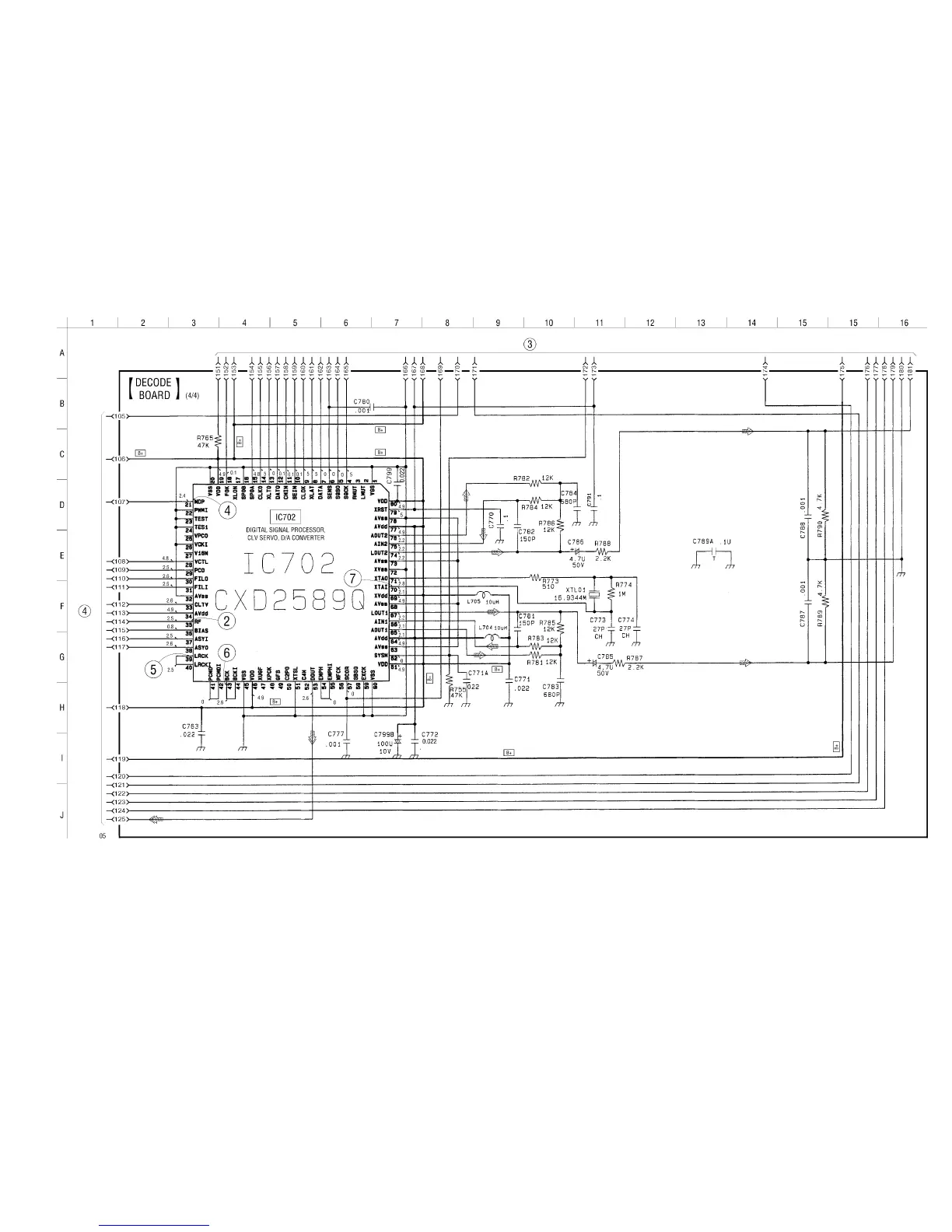

4-5. SCHEMATIC DIAGRAM – CD Section (4/4) – • See page 32 for Waveforms. • See page 32 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD PLAY
(Page 16)
(Page 15)
