Sony HCD-BX2 - Schematic Diagram - PANEL Section (2;3)

2525
HCD-BX2/DX2/DX2B

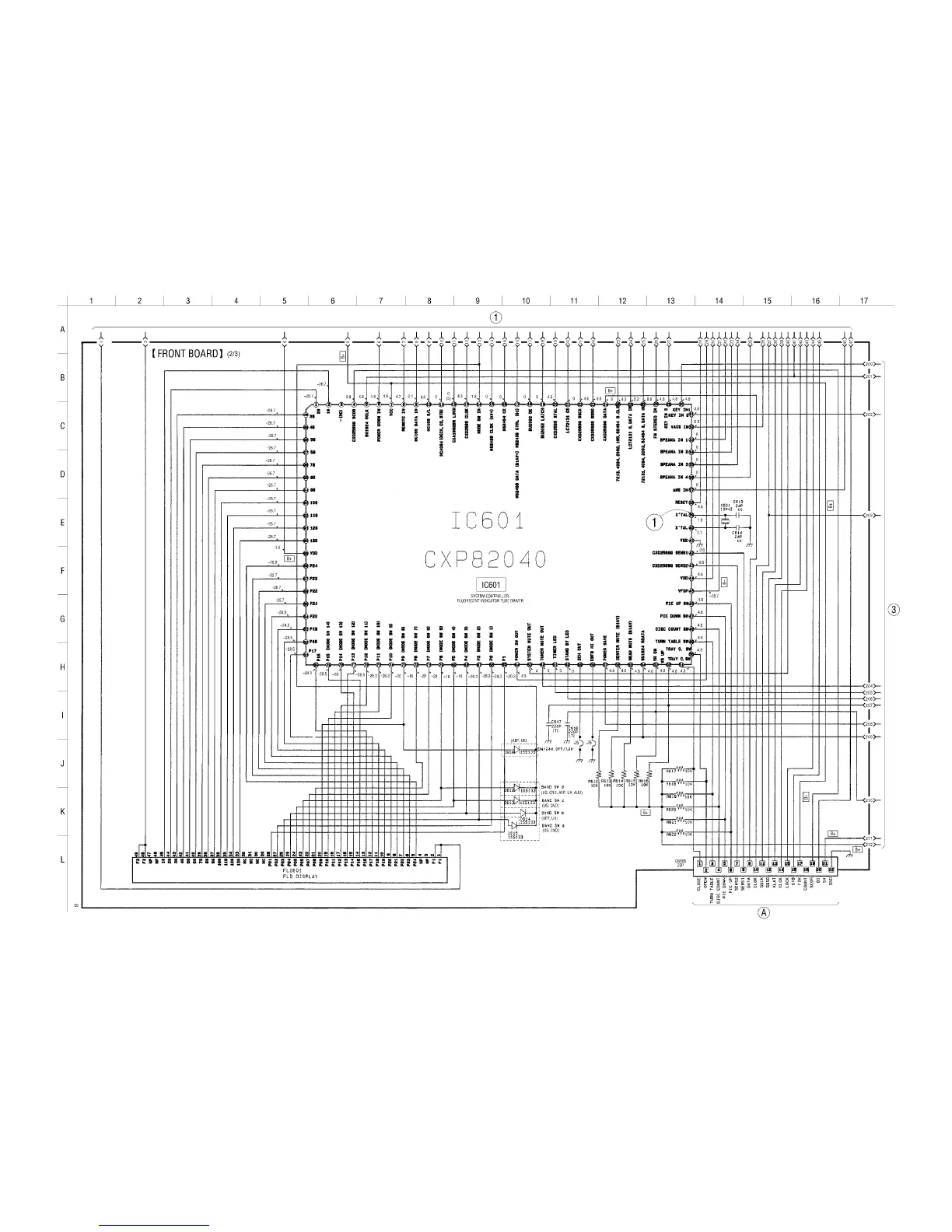

4-13. SCHEMATIC DIAGRAM – PANEL Section (2/3) – • See page 32 for Waveforms.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : CD PLAY
(Page 24)
(Page 26)
(Page 15)
