Sony HCD-BX2 - Exploded Views; Top Cabinet Section Exploded View

37

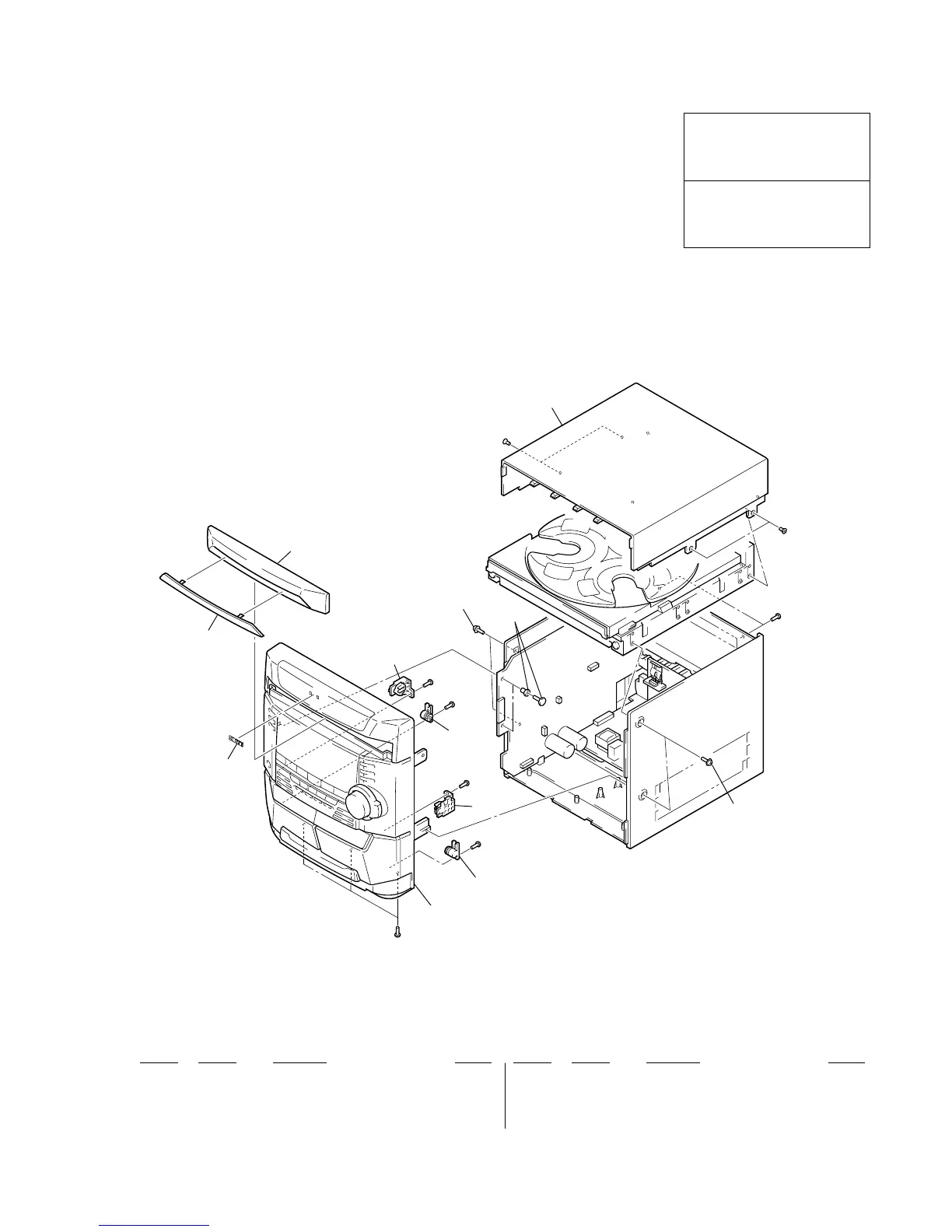

(1) TOP CABINET SECTION
SECTION 5
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-703-136-21 SCREW (M3X12)
2 4-229-459-01 EMBLEM
3 4-229-453-01 DOOR, CD
4 4-220-622-01 DAMPER (GRY), GEAR
5 4-229-451-01 HOLDER (A), EJECT
6 4-229-473-01 PLATE, CD DOOR
8 4-229-452-01 CABINET, TOP
9 3-531-576-01 RIVET
4
Front panel section
#1
#1
#1
8
#5
#5
#5
#5
#6
4
5
5
1
9
8
1
2
6
3
