HCD-BX2/DX2/DX2B

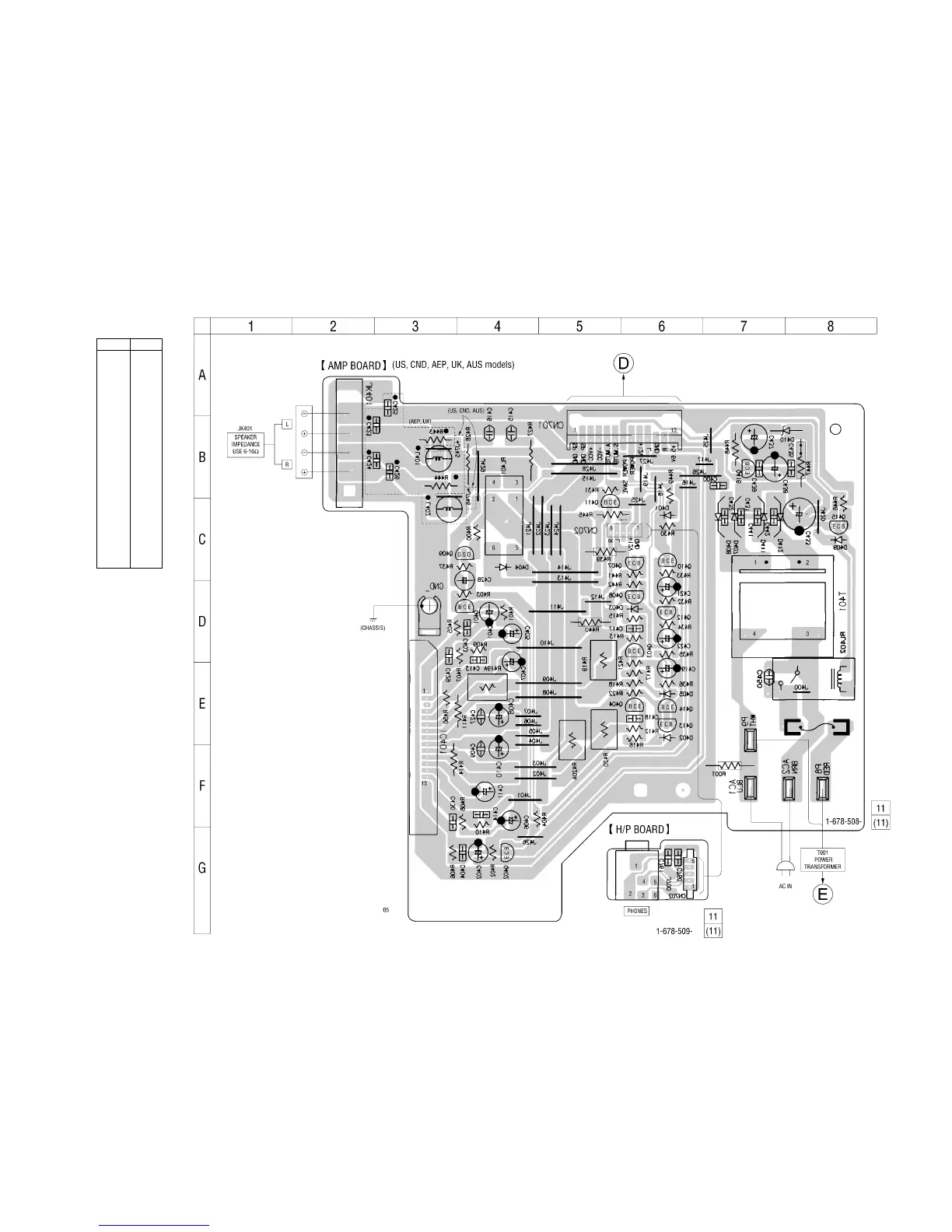

4-16. PRINTED WIRING BOARD – AMP Board (US, Canadian, AEP, UK, Australian models) – • See page 13 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D401 C-6
D402 E-6
D403 D-6
D404 C-4
D405 E-6
D407 C-7
D408 C-7
D409 C-8
D410 B-8
D411 C-7
D412 C-7
IC401 E-3
Q401 D-4
Q402 G-4
Q403 D-6
Q404 E-6
Q407 C-6
Q408 D-6
Q409 C-4
Q410 C-6
Q411 C-5
Q412 D-6
Q413 E-6
Q414 E-6
Q415 C-8
Q416 B-7
(Page 19)
(Page 19)
