Sony HCD-BX2 - CD Section Printed Wiring Boards

1818
HCD-BX2/DX2/DX2B

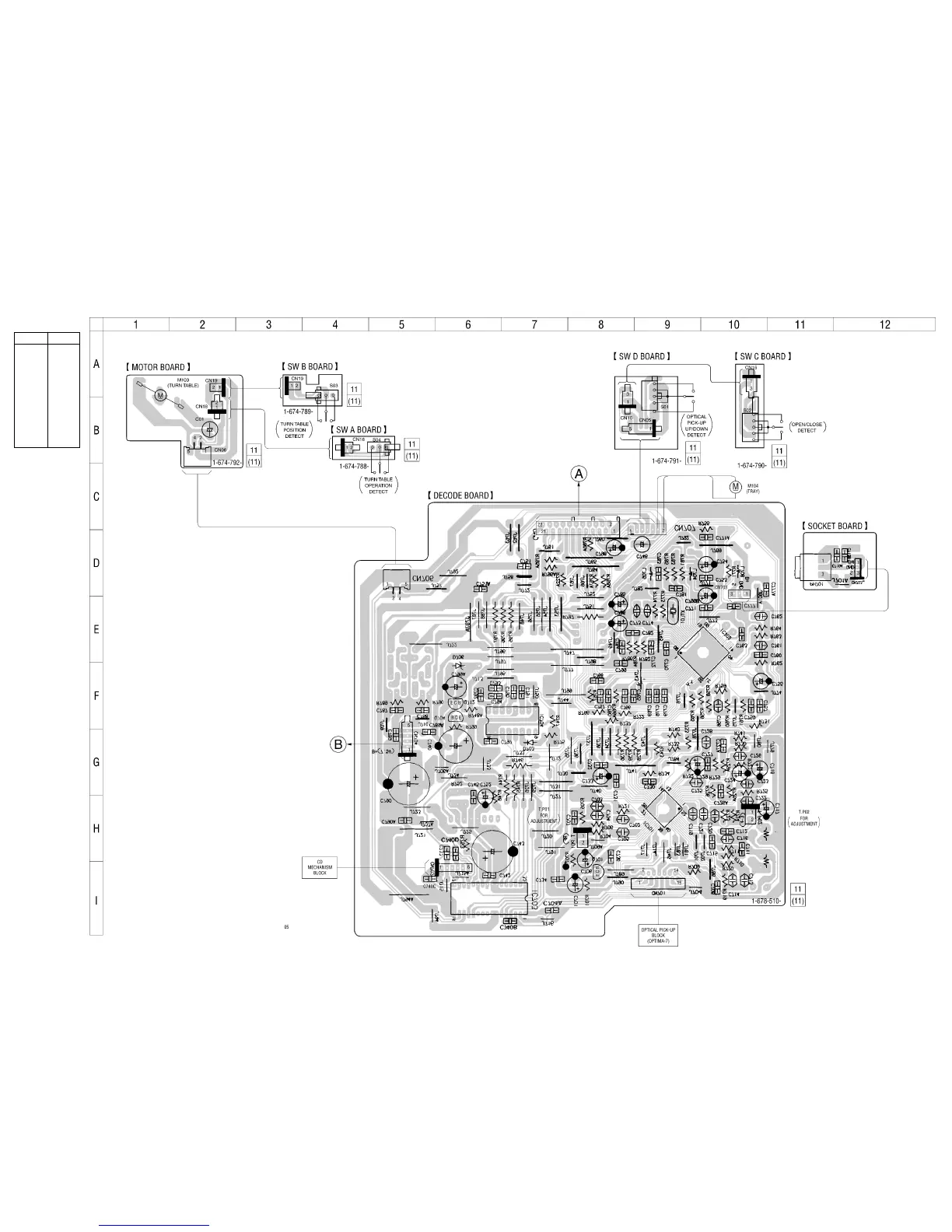

4-6. PRINTED WIRING BOARDS – CD Section – • See page 13 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D703 G-7
D706 F-6
IC701 H-9
IC702 E-10
IC703 I-6
IC704 F-7
Q701 I-8
Q704 F-6
Q712 F-6
PH701 D-11
(Page 19)
(TO FRONT BOARD)
