Sony HCD-BX2 - Schematic Diagram - MAIN Board (3;4)

2222
HCD-BX2/DX2/DX2B

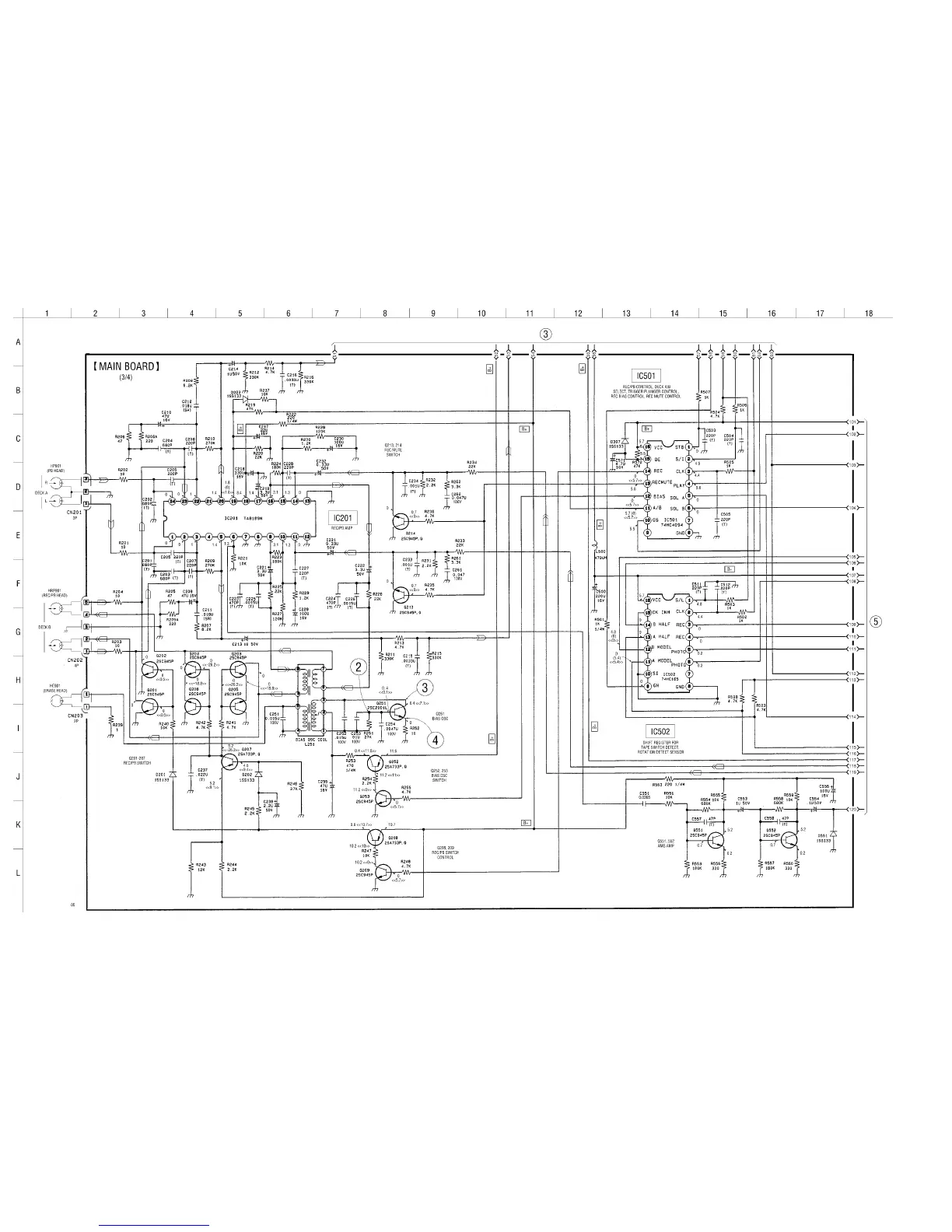

4-10. SCHEMATIC DIAGRAM – MAIN Board (3/4) – • See page 32 for Waveforms. • See page 32 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : TAPE PLAY (DECK A)
( ) : TAPE PLAY (DECK B)
〈〈 〉〉 : TAPE REC
(Page 20)
(Page 23)
