Sony HCD-BX2 - Printed Wiring Boards - AMP (E Model);Ac;Fuse Boards

3030
HCD-BX2/DX2/DX2B

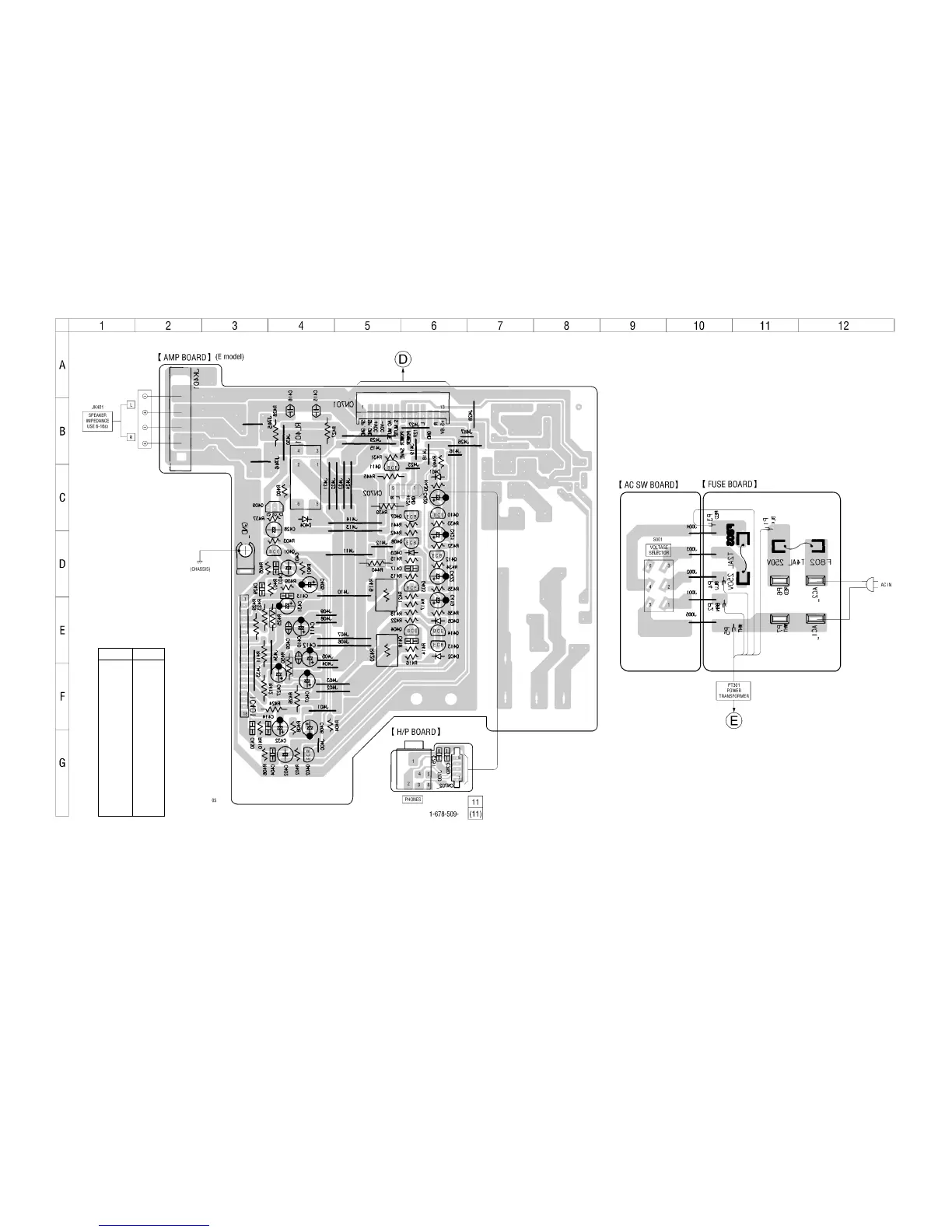

4-18. PRINTED WIRING BOARDS – AMP (E model)/AC/FUSE Boards – • See page 13 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D401 C-6
D402 E-6
D403 D-6
D404 C-4
D405 E-6
IC401 E-3
Q401 D-4
Q402 G-4
Q403 D-6
Q404 E-6
Q407 C-6
Q408 D-6
Q409 C-4
Q410 C-6
Q411 C-5
Q412 D-6
Q413 E-6
Q414 E-6
(Page 19)
(Page 19)
