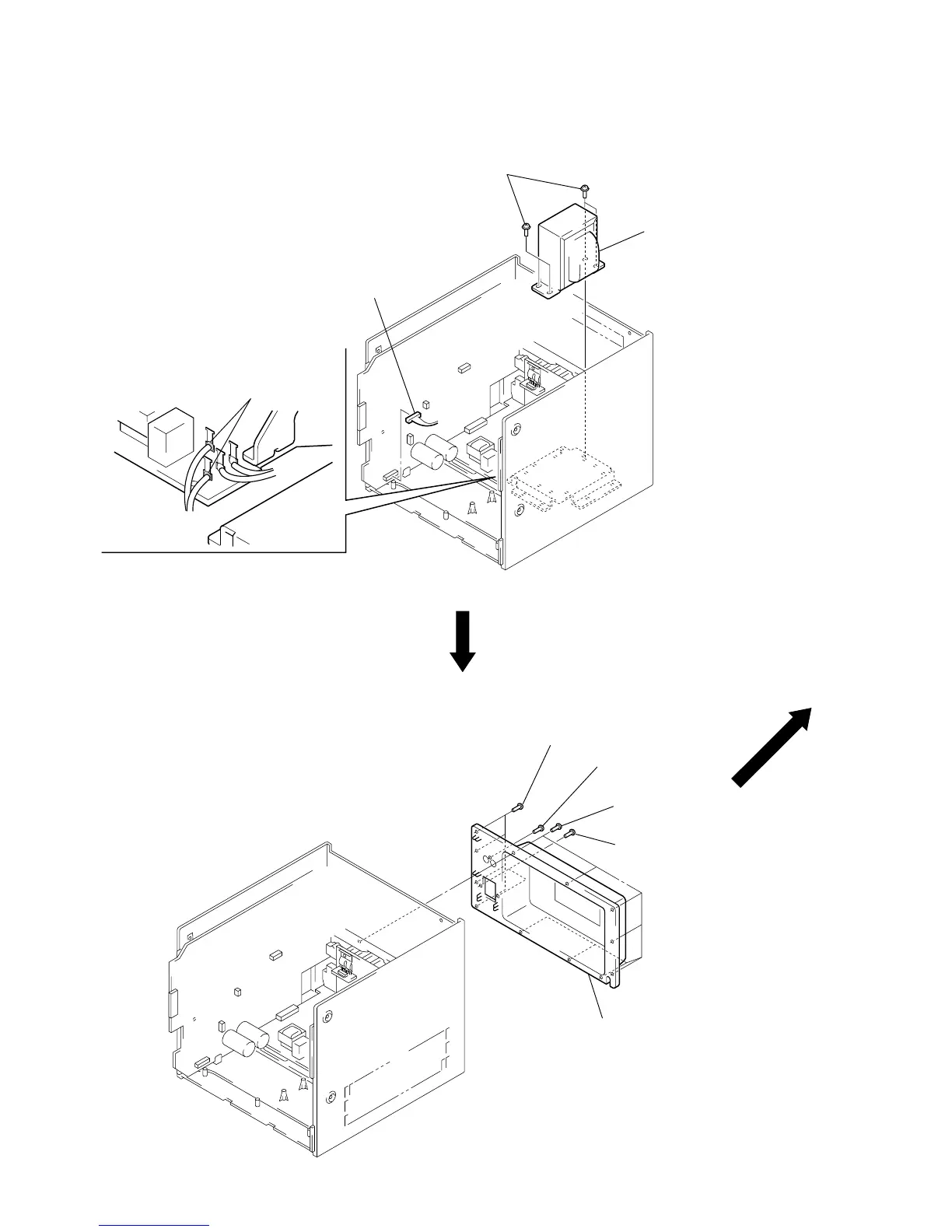

POWER TRANSFORMER (T001)
REAR COVER
2 rear cover
1 eight screws
1 screw
1 two screws
1 four screws
3 four screws
4 power transformer (T001
)
1 Remove two solders.
2 connector
(CN803)
