Sony HCD-D170 - Section 5. Diagrams; Circuit Boards Location

SECTION 5
DIAGRAMS

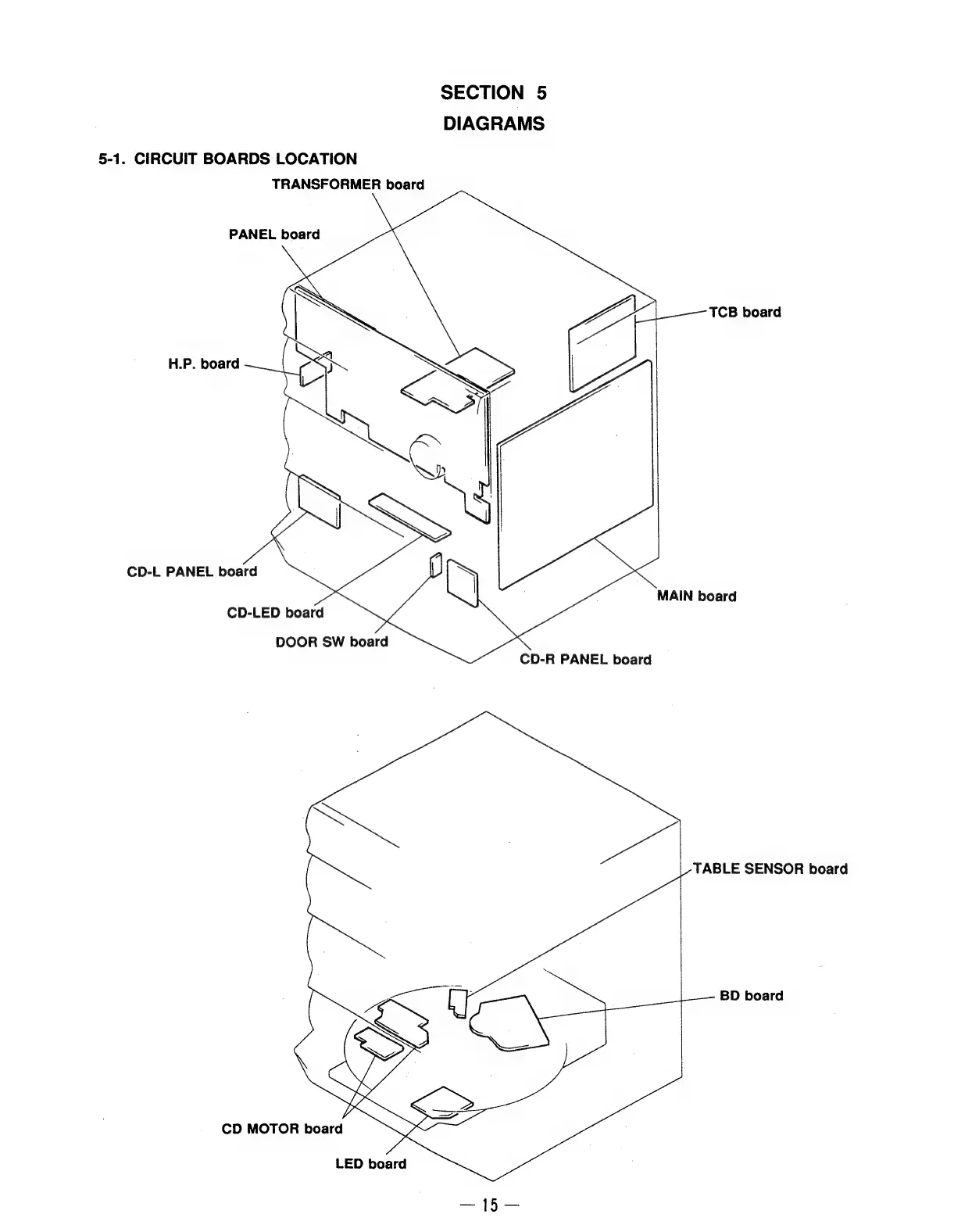

5-1. CIRCUIT BOARDS LOCATION
TRANSFORMER board
PANEL board
Ek ae TCB board
H.P. board ‘
CD-L PANEL board S
MAIN board
CD-LED board
DOOR SW board
CD-R PANEL board
TABLE SENSOR board
BD board
CD MOTOR board
LED board
