Sony HCD-D170 - Front Panel S@Ction

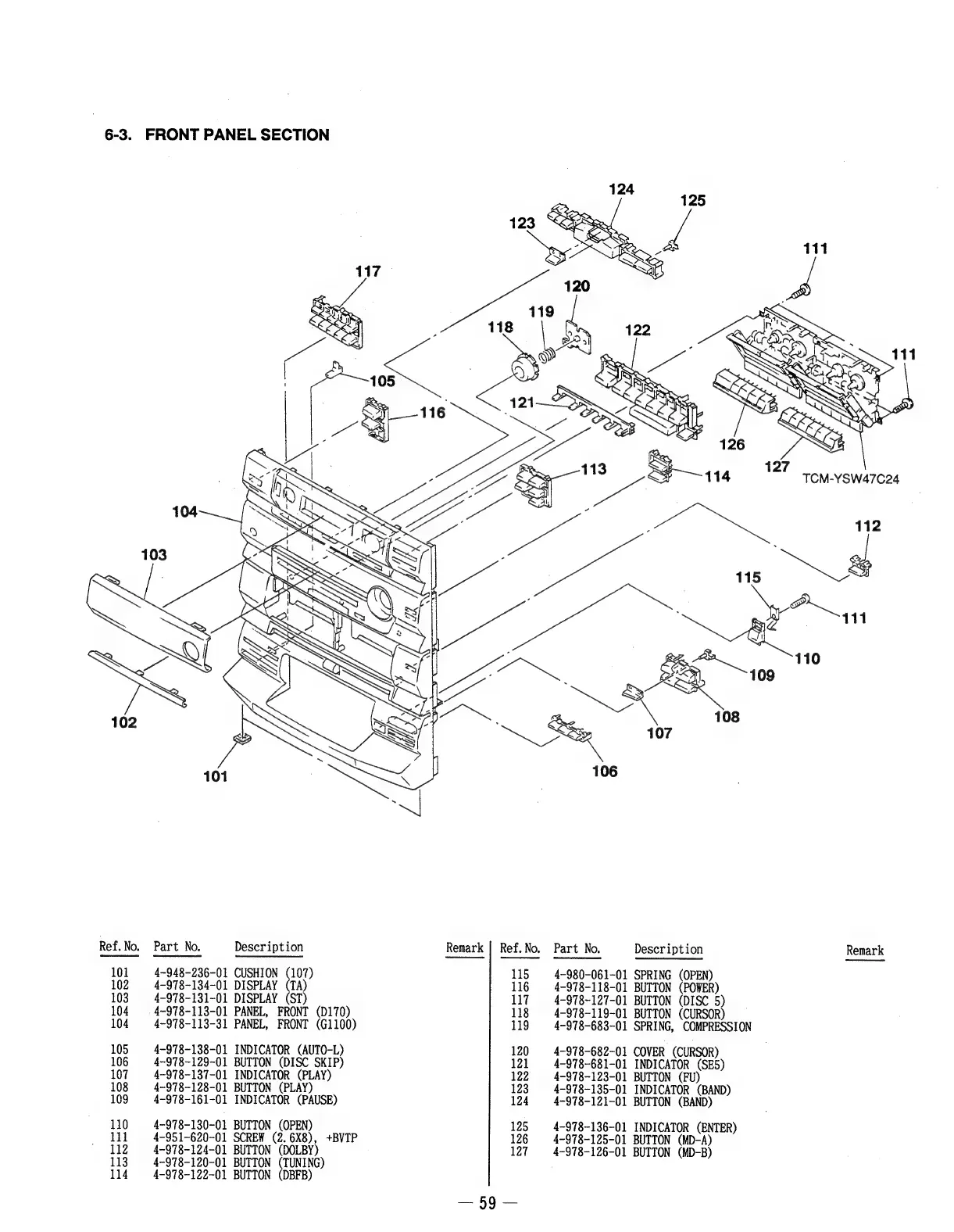

6-3. FRONT PANEL SECTION
Ref. No. Part No.
101 = 4~948-236-01 CUSHION (107)
102 4-978-134-01 DISPLAY (TA)
103 = 4-978-131-01 DISPLAY (ST)
104 = 4~978-113-01 PANEL, FRONT (D170)
104 4-978-113-31 PANEL, FRONT (G1100)
105 4-978-138-01 INDICATOR (AUTO-L)
106 4-978-129-01 BUTTON (DISC SKIP)
107 4-978-137-01 INDICATOR (PLAY)
108 4-978-128-01 BUTTON (PLAY)
109 4-978-161-01 INDICATOR (PAUSE)
110 4~978-130-01 BUTTON (OPEN)
ll 4-951-620-01 SCREW (2. 6X8), +BVTP
112 4-978-124-01 BUTTON (DOLBY)
113 4-978-120-01 BUTTON (TUNING)
114 4-978-122-01 BUTTON (DBFB)
Description
Remark | Ref. No.
Part No. Description Remark
4~980-061-01 SPRING (OPEN)
4-978-118-01 BUTTON (POWER)
4-978-127-01 BUTTON (DISC 5)
4-978-119-01 BUTTON (CURSOR)
4-978-683-01 SPRING, COMPRESSION
4-978-682-01 COVER (CURSOR)
4-978-681-01 INDICATOR (SE5)
4-978-123-01 BUTTON (FU)
4-978-135-01 INDICATOR (BAND)
4-978-121-01 BUTTON (BAND)
4-978-136-01 INDICATOR (ENTER)
4-978-125-01 BUTTON (MD-A)
4-978-126-01 BUTTON (MD-B)
