Sony HCD-D170 - TC Mechanism Section 1 (TCM-YSW47 C24) 00

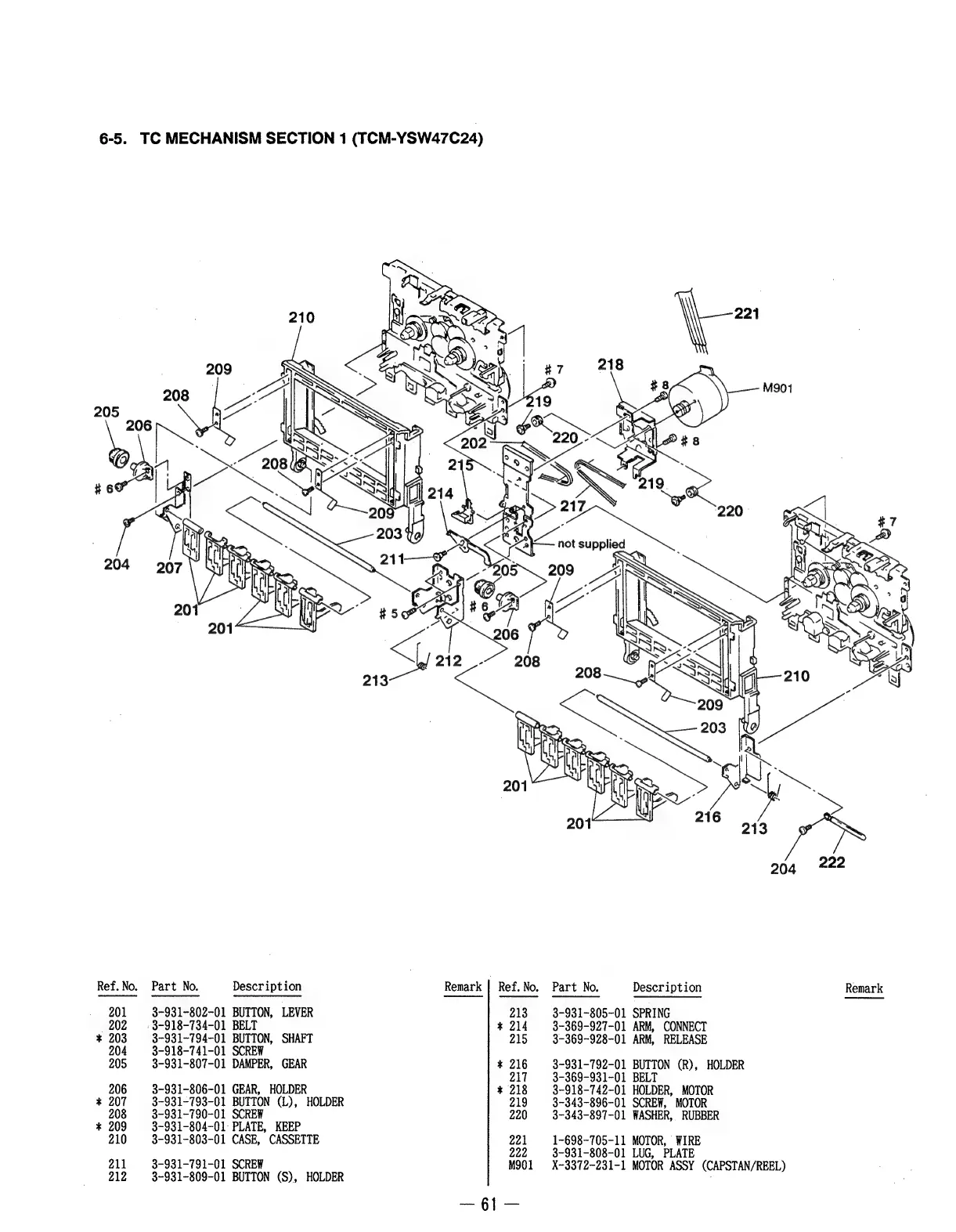

6-5. TC MECHANISM SECTION 1 (T CM-YSW47C24)
Ref. No. Part No.
201 3-931-802-01 BUTTON, LEVER
202 = 3-918-734-01 BELT
* 203 = 3-931~794-01 BUTTON, SHAFT
204 3-918-741-01 SCREW
205 3-931-807-01 DAMPER, GEAR
206 3-931-806-01 GEAR, HOLDER
* 207 | 3-931-793-01 BUTTON (L), HOLDER
208 = 3-931-790-01 SCREW
* 209 3~-931-804-01- PLATE, KEEP
210 3-931-803-01 CASE, CASSETTE
211 3-931-791-01 SCREW
212 3-931-809-01 BUTTON (S), HOLDER
Description
Remark | Ref. No.
213
* 214
215
* 216
217
* 218
219
220
221
222
M901
Part No. Description Remark
3-931-805-01 SPRING
3-369-927-01 ARM, CONNECT
3-369-928-01 ARM, RELEASE
3-931-792-01 BUTTON (R), HOLDER
3-369-931-01 BELT
3-918-742-01 HOLDER, MOTOR
3-343-896-01 SCREW, MOTOR
3~-343-897-01 WASHER, RUBBER
1-698-705-11 MOTOR, WIRE
3-931-808-01 LUG, PLATE
X~3372-231-1 MOTOR ASSY (CAPSTAN/REEL)
