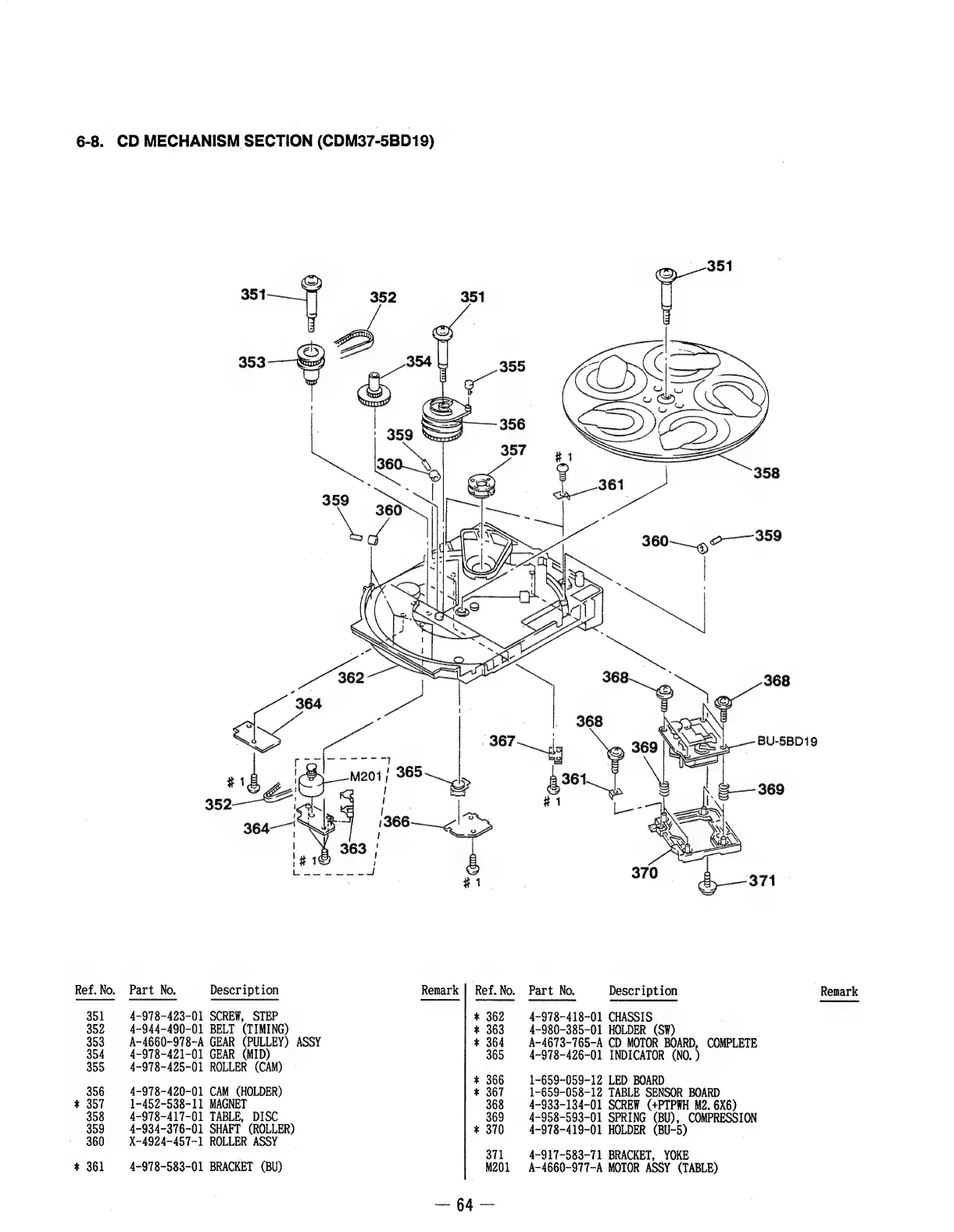

6-8. CD MECHANISM SECTION (CDM37-5BD19)
351
Part No. Description Remark | Ref. No.
4-978-423-01 SCREW, STEP * 362
4-944-490-01 BELT (TIMING) * 363
A-4660-978-A GEAR (PULLEY) ASSY * 364
4-978-421-01 GEAR (MID) 365
4-978-425-01 ROLLER (CAM) ve
*
4-978-420-01 CAM (HOLDER) * 367
1-452-538-11 MAGNET 368
4-978-417-01 TABLE, DISC 369
4~934~376-01 SHAFT (ROLLER) * 370
X-4924-457-1 ROLLER ASSY ,
71
4~978-583-01 BRACKET (BU) M201
Part No. Description Remark
4-978-418-01 CHASSIS
4-980-385-01 HOLDER (S¥)
A-4673-765-A CD MOTOR BOARD, COMPLETE
4-978-426-01 INDICATOR (NO. )
1-659-059-12 LED BOARD
1-659-058-12 TABLE SENSOR BOARD
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-958-593-01 SPRING (BU), COMPRESSION
4-978-419-01 HOLDER (BU~5)
4-917-583-71 BRACKET, YOKE
A-4660-977-A MOTOR ASSY (TABLE)
