Sony HCD-D170 - TC Mechanism Section 3 (TCM-YSW47 C24)

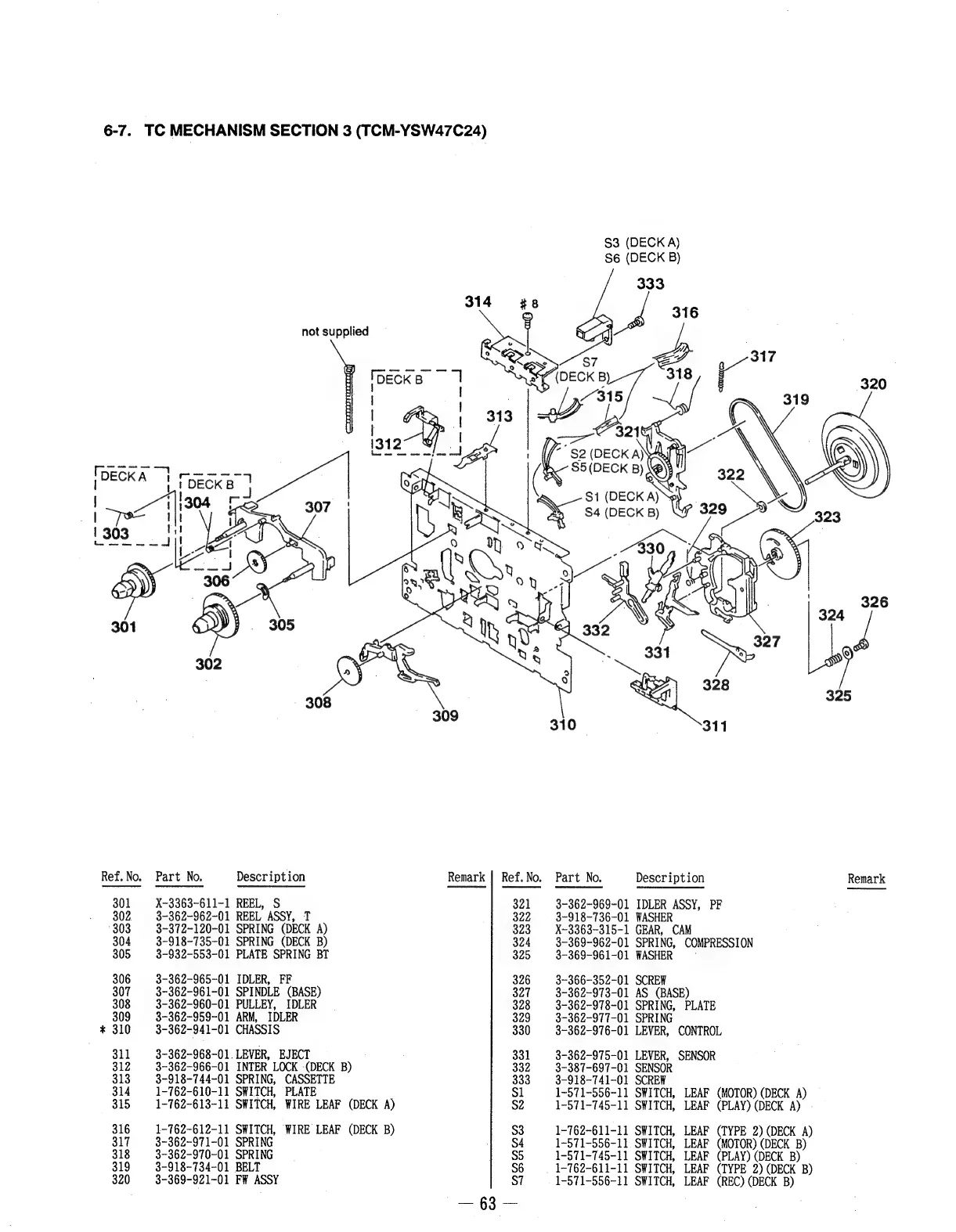

6-7. TC MECHANISM SECTION 3 (TCM-YSW47C24)
Part No.
not supplied
308
Description
X-3363-611-1 REEL, S
3-362-962-01 REEL ASSY, T
3-372-120-01 SPRING (DECK A)
3-918-735-01 SPRING (DECK B)
3-932-553-01 PLATE SPRING BT
3-362-965-01 IDLER, FF
3-362-961-01 SPINDLE (BASE)
3-362-960-01 PULLEY, IDLER
3-362-959-01 ARM, IDLER
3-362-941-01 CHASSIS
3-362~968-01. LEVER, EJECT
3~-362-966-01 INTER LOCK -(DECK B)
3-918-744-01 SPRING, CASSETTE
1-762-610-11 SWITCH, PLATE
1-762-613-11 SWITCH, WIRE LEAF (DECK A)
1-762-612-11 SWITCH, WIRE LEAF (DECK B)
3-362-971-01 SPRING
3-362-970-01 SPRING
3-918-734-01 BELT
3-369-921-01 FW ASSY
309
Remark | Ref. No.
321
322
310 311
Part No. Description
3-362-969-01 IDLER ASSY, PF
3~918-736-01 WASHER
X-3363-315-1 GEAR, CAM
3-369-962-01 SPRING, COMPRESSION
3-369-961-01 WASHER ~
3-366-352-01 SCREW
3-362-973-01 AS (BASE)
3-362-978-01 SPRING, PLATE
3-362-977-01 SPRING
3-362-976-01 LEVER, CONTROL
3-362-975-01 LEVER, SENSOR
3-387-697-01 SENSOR
3-918-741-01 SCREW
1~571-556-11 SWITCH, LEAF (MOTOR) (DECK A)
1-571-745-11 SWITCH, LEAF (PLAY) (DECK A) -
1-762-611-11 SWITCH, LEAF (TYPE 2) (DECK A)
1-571-556-11. SWITCH, LEAF (MOTOR) (DECK B)
1-571-745-11 SWITCH, LEAF (PLAY) (DECK B)
Remark
_ 1-762-611-11 SWITCH, LEAF (TYPE 2) (DECK B)
1-571-556-11 SWITCH, LEAF (REC) (DECK B)
