Sony HCD-D170 - Disassembly; Front Panel ASSY and Main Board.0; TC Mechanism Deck Oo

SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

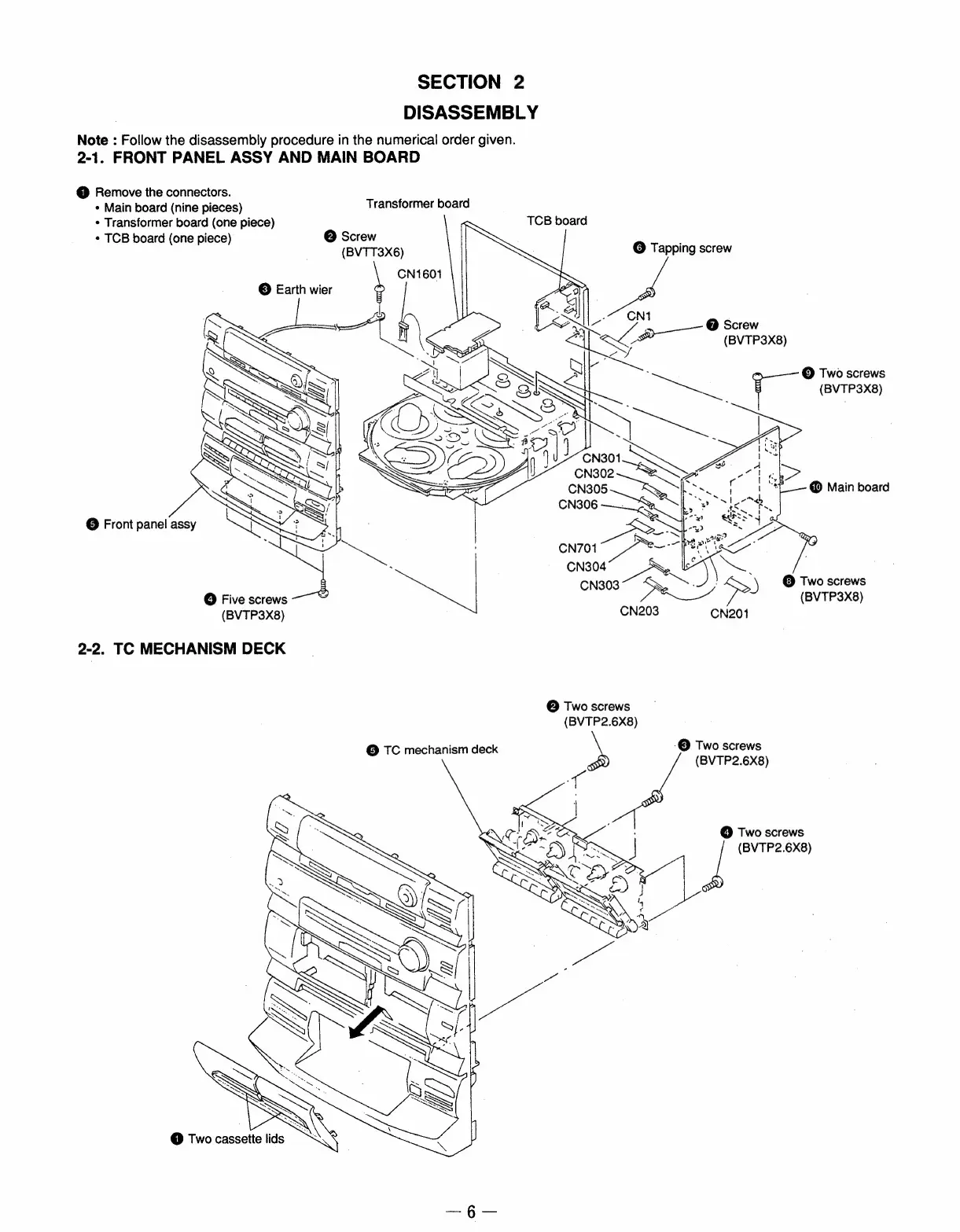

2-1. FRONT PANEL ASSY AND MAIN BOARD
@ Remove the connectors.
*
Main
board
(nine
pieces)
Transformer
board
*
Transformer
board
(one
piece)
TCB
board
*
TCB
board
(one
piece)
©
Screw
(BVTT3X6)
©
Tapping
screw
CN1601
© Earth wier
@ Screw
(BVTP3X8)
© Two screws
(BVTP3X8)
@ Main board
© Front panel assy
) © Two screws
(BVTP3X8)
O Five screws
(BVTP3xX8)
2-2. TC MECHANISM DECK
© Two screws
(BVTP2.6X8)
©
TC
mechanism
deck
-@
Two
screws
(BVTP2.6X8)
© Two screws
J (BVTP2.6X8)
@ Two cassette lids
