Sony HCD-D170 - General

2a eee

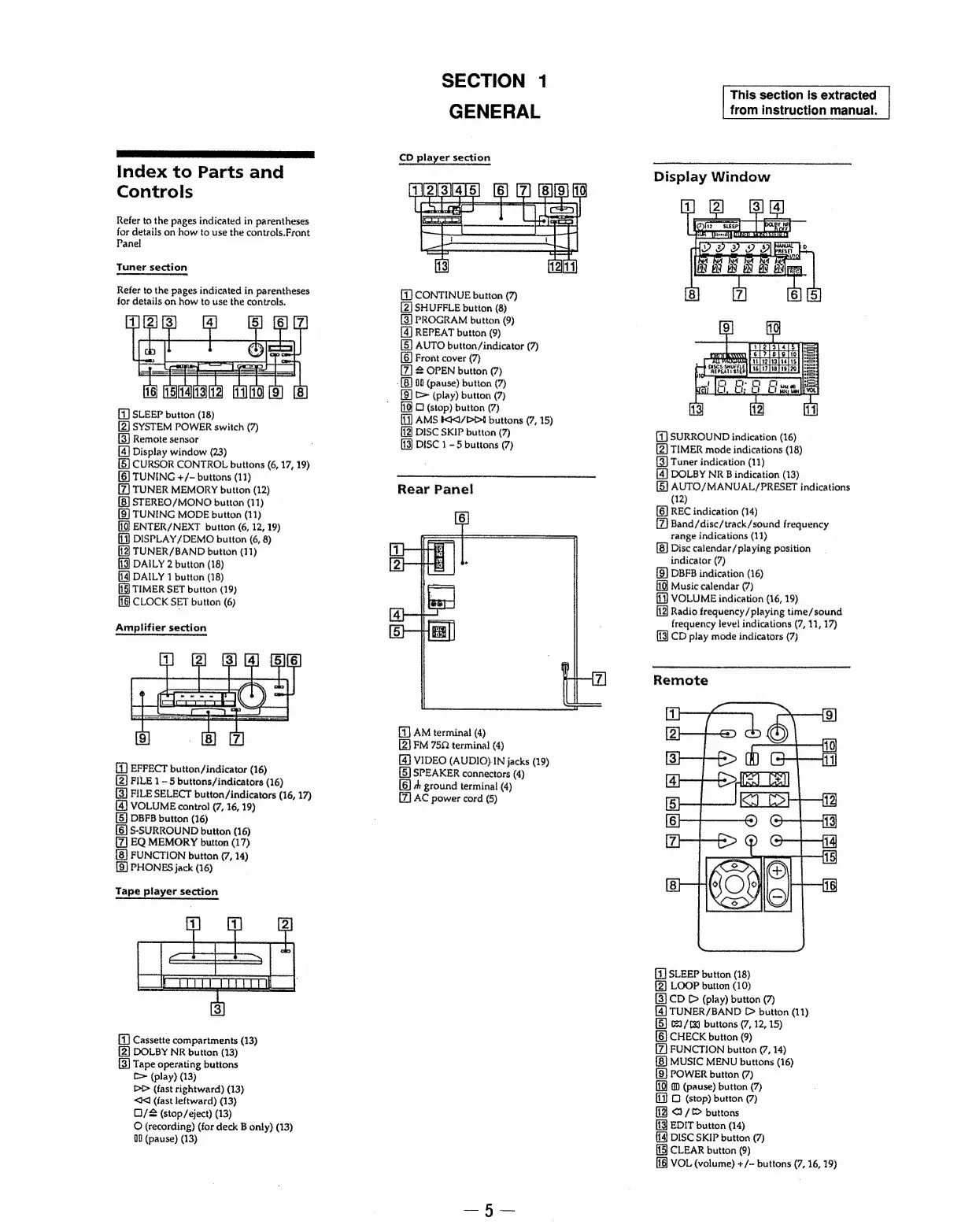

Index to Parts and
Controls
Refer to the pages indicated in parentheses
for details on how to use the controls.Front
Panel
Tuner section
Refer to the pages indicated in parentheses
for details on how to use the controls.
SLEEP button (18)
SYSTEM POWER switch (7)
Remote sensor
[4] Display window (23)
CURSOR CONTROL buttons (6, 17, 19)
[6] TUNING +/~ buttons (11)
TUNER MEMORY button (12)
STEREO/MONO button (11)
{9] TUNING MODE button (11)
ENTER/NEXT button (6, 12, 19)
DISPLAY /DEMO button (6, 8)
{i2] TUNER/BAND button (11)
DAILY 2 button (18)
DAILY 1 button (18)
[5] TIMER SET button (19)
CLOCK SET button (6)
Amplifier section
(1) EFFECT button/indicator (16)
{2} FILE 1 — 5 buttons/indicators (16)
(3] FILE SELECT button/indicators (16, 17)
[4] VOLUME control (7, 16, 19)
[5] DBFB button (16)
{6} SSSURROUND button (16)
{7] EQ MEMORY button (17)
{8} FUNCTION button (7, 14)
[9] PHONES jack (16)
Tape player section
[1] Cassette compartments (13)
[2] DOLBY NR button (13)
[3] Tape operating buttons
C (play) (13)
> (fast rightward) (13)
<1 (fast leftward) (13)
0/& (stop/eject) (13)
O (recording) (for deck B only) (13)
00 (pause) (13)
SECTION 1
GENERAL
CD player section
CONTINUE button (7)
SHUFFLE button (8)
(3) PROGRAM button (9)
[4] REPEAT button (9)
(5) AUTO button /indicator (7)
{6} Front cover (7)
& OPEN button (7)
- (8) 00 (pause) button (7)
{9} t> (play) button (7)
fi) C (stop) button (7)
{1] AMS #<1/>4 buttons (7, 15)
DISC SKIP button (7)
{13} DISC 1 - 5 buttons (7)
Rear Panel
AM terminal (4)
[2] FM 752 terminal (4)
{4} VIDEO (AUDIO) IN jacks (19)
(5) SPEAKER connectors (4)
(6) +: ground terminal (4)
[7] AC power cord (5)
This section is extracted
from instruction manual.
SURROUND indication (16)
TIMER mode indications (18)
(3) Tuner indication (11)
[4] DOLBY NR B indication (13)
AUTO/MANUAL/PRESET indications
(12)
(6) REC indication (14)
Band/disc/track/sound frequency
range indications (11)
Disc calendar/playing position
indicator (7)
[9] DBFB indication (16)
Music calendar (7)
(11) VOLUME indication (16, 19)
(13 Radio frequency/playing time/sound
frequency level indications (7, 11, 17)
(3) CD play mode indicators (7)
Remote
SLEEP button (18)
{2] LOOP button (10)
[3] cD & (play) button (7)
[4] TUNER/BAND © button (11)
(5) ce /t33 buttons (7, 12, 15)
[6] CHECK button (9)
FUNCTION button (7, 14)
MUSIC MENU buttons (16)
[9] POWER button (7)
@ (pause) button (7)
QO (stop) button (7)
<1 /& buttons
(f3 EDIT button (14)
DISC SKIP button (7)
CLEAR button (9)
VOL (volume) +/~ buttons (7, 16, 19)
