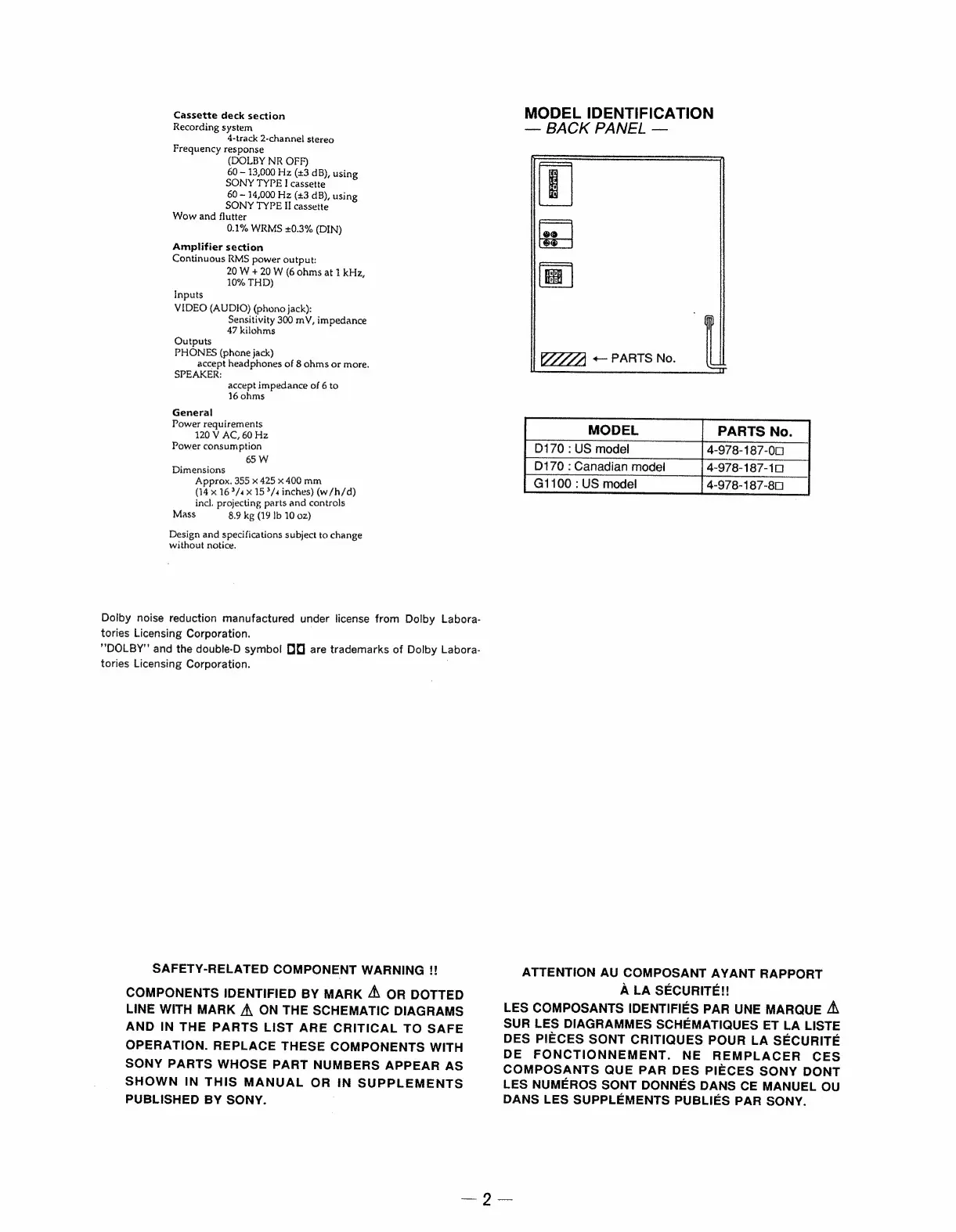

Sony HCD-D170 - Page 2

Cassette deck section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
60 — 13,000 Hz (+3 dB), using
SONY TYPE I cassette
60 — 14,000 Hz (+3 dB), using
SONY TYPE II cassette
Wow and flutter
0.1% WRMS +0.3% (DIN)
Amplifier section
Continuous RMS power output:
20 W + 20 W (6 ohms at 1 kHz,
10% THD)
Inputs
VIDEO (AUDIO) (phono jack):
Sensitivity 300 mV, impedance
47 kilohms
Outputs
PHONES (phone jack)
accept headphones of 8 ohms or more.
SPEAKER:
accept impedance of 6 to
16 ohms
General
Power requirements
120 V AC, 60 Hz
Power consumption
65 W
Dimensions
Approx. 355 x 425 x 400 mm
(14 x 16 3/4 x 15 3/4 inches) (w/h/d)
incl. projecting parts and controls
Mass 8.9 kg (19 Ib 10 oz)
Design and specifications subject to change
without notice.
MODEL IDENTIFICATION
— BACK PANEL —
(7777) + PARTS No.
MODEL PARTS No.
D170 : US model 4-978-187-0000
D170 : Canadian model 4-978-187-10
G1100 : US model 4-978-187-80
Dolby noise reduction manufactured under license from Dolby Labora-
tories Licensing Corporation.
"DOLBY" and the double-D symbol 1] are trademarks of Dolby Labora-
tories Licensing Corporation.
