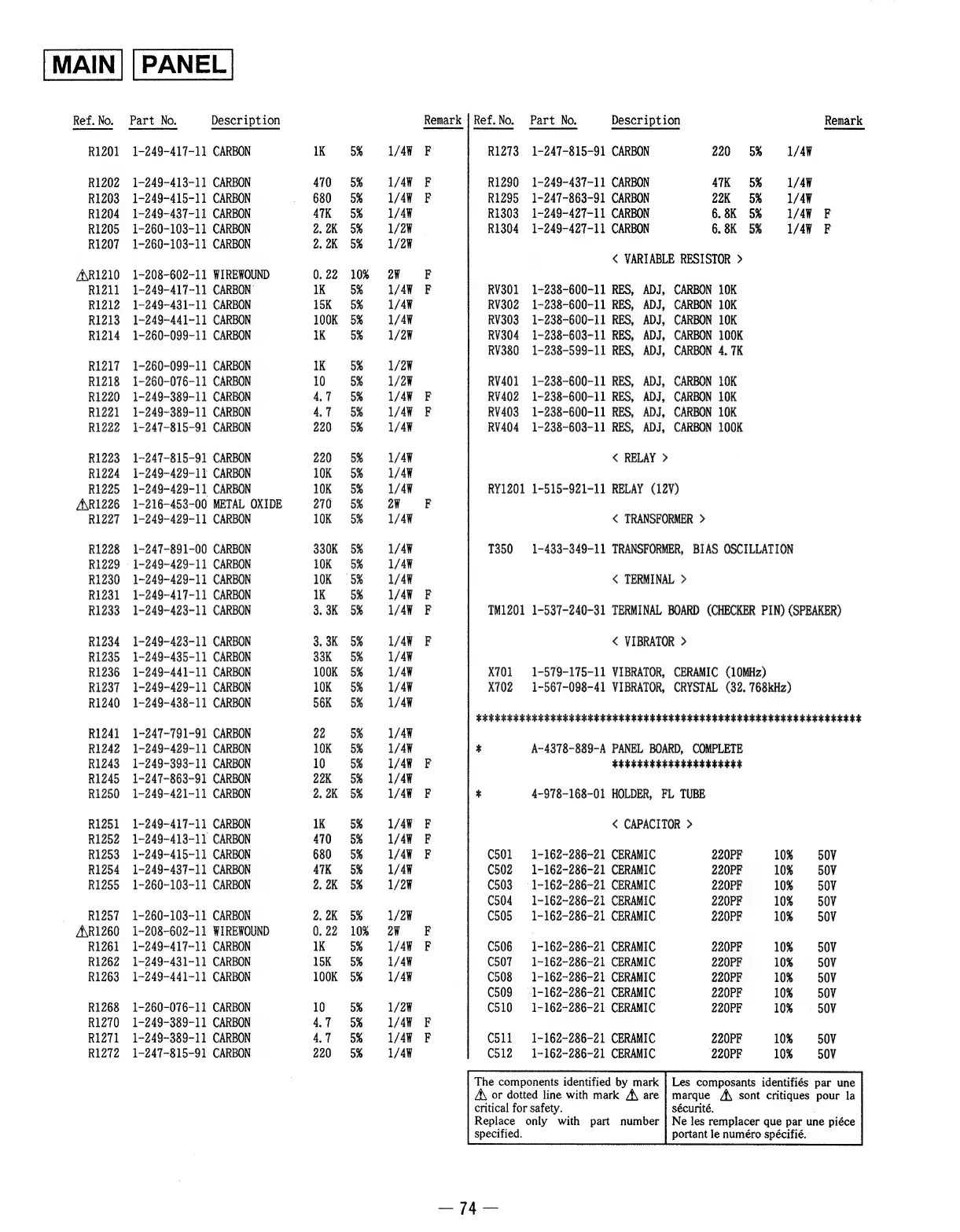

Sony HCD-D170 - Page 51

Ref.No. Part No. Description Remark: | Ref.No. Part No. Description Remark
R1201 1-249-417-11 CARBON 1K 5% 1/44 F R1273 1-247-815-91 CARBON 220 05% 1/4¥
R1202 1-249-413-11 CARBON 470 5% 1/4¥ F R1290 1-249-437-11 CARBON 47K 5% 1/49
R1203 1-249~415-11 CARBON 680 5% 1/44 F R1295 1-247-863-91 CARBON 22K o5% 1/4¥
R1204 1-249-437-11 CARBON ATK 5% 1/44 R1303 1-249-427-11 CARBON 6.8K 5% 1/4¥ F
R1205 1-260-103-11 CARBON 2.2K 5% 1/24 R1304 1-249-427-11 CARBON 6.8K 5% 1/4¥ F
R1207 1-260-103-11 CARBON 2.2K 5% 1/24
< VARIABLE RESISTOR >
A\R1210 1-208-602-11 WIREWOUND 0.22 10% 2¥ F
R1211 1-249-417-11 CARBON 1K 5% 1/4¥ F RV301 1-238-600-11 RES, ADJ, CARBON 10K
R1212 1-249-431-11 CARBON 15K = 5% 1/4¥ RV302 1-238-600-11 RES, ADJ, CARBON 10K
R1213 1-249-441-11 CARBON 100K 5% 1/4¥ RV303 1-238-600-11 RES, ADJ, CARBON 10K
R1214 1-260-099-11 CARBON 1K 5% 1/2¥ RV304 1-238-603-11 RES, ADJ, CARBON 100K
RV380 1-238-599-11 RES, ADJ, CARBON 4. 7K
R1217 1-260-099-11 CARBON 1K 5% 1/24
R1218 1-260-076-11 CARBON 10 5% 1/24 RV401 1-238-600-11 RES, ADJ, CARBON 10K
R1220 1-249-389-11 CARBON 4.7 = 5% 1/4¥ F RV402 1-238-600-11 RES, ADJ, CARBON 10K
R1221 1-249-389-11 CARBON 4.7 5% 1/4¥ F RV403 1-238-600-11 RES, ADJ, CARBON 10K
R1222 1-247-815-91 CARBON 220 5% 1/44 RV404 1-238-603-11 RES, ADJ, CARBON 100K
R1223 1-247-815-91 CARBON 220 5% 1/44 < RELAY >
R1224 1-249-429-11 CARBON 10K 95% 1/4¥
R1225 1-249-429-11 CARBON 10K = 5% 1/44 RY1201 1-515-921-11 RELAY (12V)
A\R1226 =1-216-453-00 METAL OXIDE 270 = 5% 2W F
R1227 1-249-429-11 CARBON 10K 5% 1/4¥ < TRANSFORMER >
R1228 1-247-891-00 CARBON 330K 5% 1/4¥ T350 1-433-349-11 TRANSFORMER, BIAS OSCILLATION
R1229 -1-249-429-11 CARBON 10K 5% 1/44
R1230 1-249-429-11 CARBON 10K = 5% 1/44 < TERMINAL >
R1231 1-249-417-11 CARBON 1K 5% 1/4¥ F
R1233 1-249-423-11 CARBON 3.3K 5% 1/4¥ F TM1201 1-537-240-31 TERMINAL BOARD (CHECKER PIN) (SPEAKER)
R1234 1-249-423-11 CARBON 3.3K 5% 1/4¥ F < VIBRATOR >
R1235 1-249-435-11 CARBON 33K 55% 1/4¥
R1236 1-249-441-11 CARBON 100K 5% 1/4¥ X701 1-579-175-11 VIBRATOR, CERAMIC (10MHz)
R1237 1-249-429-11 CARBON 10K 5% 1/44 X702 1-567-098-41 VIBRATOR, CRYSTAL (32. 768kHz)
R1240 1~249-438-11 CARBON 56K ob 1/4¥
pessettstssstttietsststtttitisiissetssststtts rts ies ets resets ee
R1241 1-247-791-91 CARBON 22 5% 1/44
R1242 1-249-429-11 CARBON 10K 5% 1/4¥ * A-4378-889-A PANEL BOARD, COMPLETE
R1243 1-249-393-11 CARBON 10 5% 1/4W F EEKEKKEEE EERE EERE RESS
R1245 1-247-863-91 CARBON 22K 5% 1/4¥
Ri250 1-249-421-11 CARBON 2.2K 5% 1/4¥ F * 4-978-168-01 HOLDER, FL TUBE
R1251 1-249-417-11 CARBON 1K 5% 1/4¥ F < CAPACITOR >
R1252 1-249-413-11 CARBON 470 = 5% 1/4¥ F
R1253 1-249-415~-11 CARBON 680 5% 1/4¥ F C501 1-162-286-21 CERAMIC 220PF 10% 50V
R1254 1-249-437-11 CARBON 47K 5% 1/4¥ C502 ~=1-162-286-21 CERAMIC 220PF 10% 50V
R1255 1-260~103-11 CARBON 2.2K 5% 1/24 C503 = 1-162~286-21 CERAMIC 220PF 10% 50V
C504 = 1-162~-286-21 CERAMIC 220PF 10% 50V
R1257 1-260-103-11 CARBON 2.2K 5% 1/24 C505 1-162~-286-21 CERAMIC 220PF 10% 50V
A\R1260 1-208-602-11 WIREWOUND 0.22 10% 2H F
R1261 1~-249-417-11 CARBON 1K 5% 1/4¥ F C506 ~=.1-162-286-21 CERAMIC 220PF 10% 50V
R1262 1-249-431-11 CARBON 15K = 5% 1/4¥ C507 =1~162-286-21 CERAMIC 220PF 10% 50V
R1263 1-249-441-11 CARBON 100K 5% 1/44 C508 1-162~-286-21 CERAMIC 220PF 10% 50V
C509 =. 1-162-286-21 CERAMIC 220PF 10% 50V
R1268 1-260-076-11 CARBON 10 5% 1/24 C510 =1-162-286-21 CERAMIC 220PF 10% 50V
R1270 + 1-249-389-11 CARBON 4.7 5% 1/4¥ F
R1271 1-249-389-11 CARBON 4,7 5% 1/4¥ F C511 = 1-162-286-21 CERAMIC 220PF 10% 50V
R1272 1-247~-815-91 CARBON 220 35% 1/4¥ C512 =1-162-286-21 CERAMIC 220PF 10% 50V
The components identified by mark | Les composants identifiés par une
A\ or dotted line with mark A\ are | marque A\ sont critiques pour la
critical for safety. sécurité,
Replace only with part number | Ne les remplacer que par une piéce
specified. portant le numéro spécifié.
