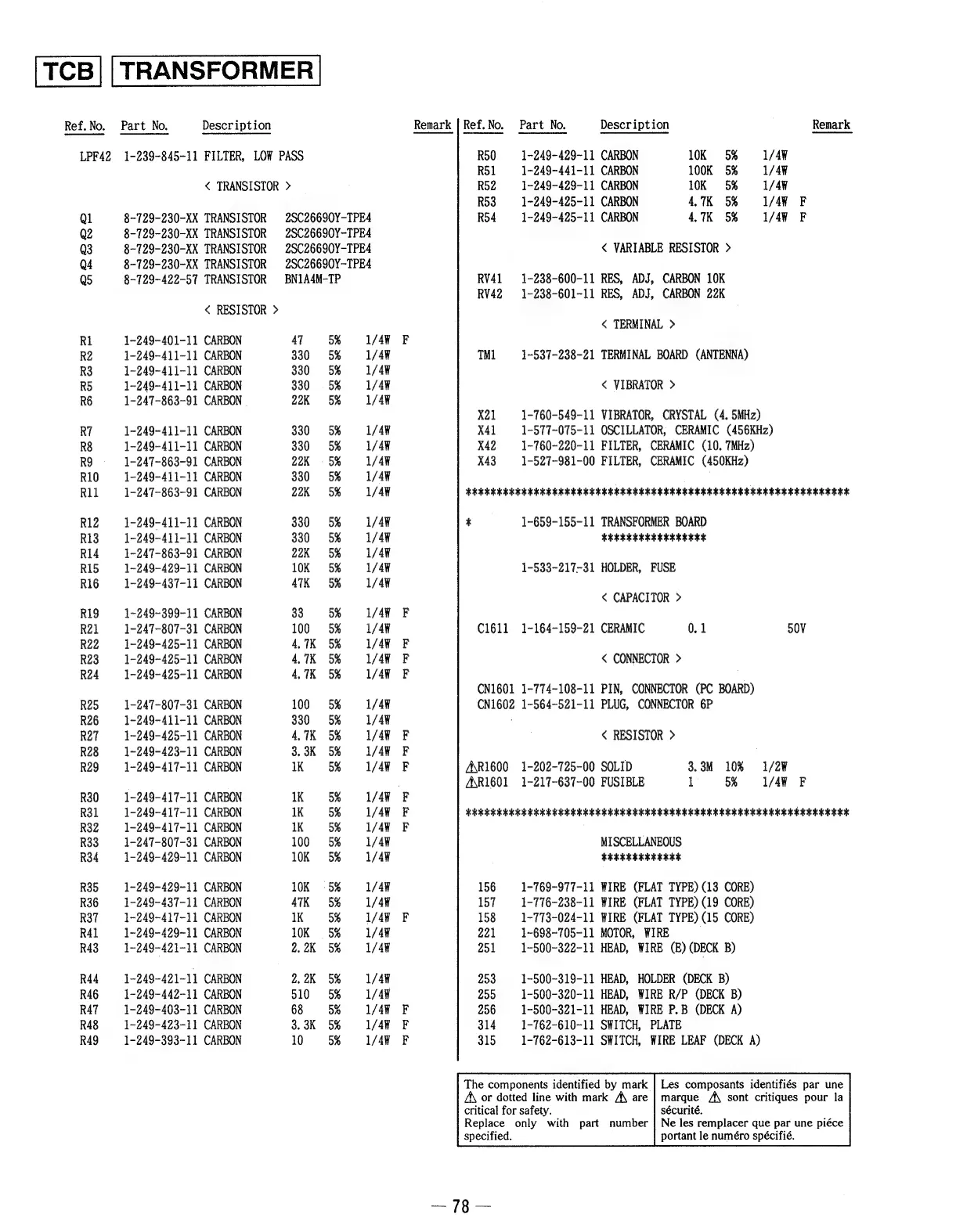

Sony HCD-D170 - Page 55

TRANSFORMER
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
LPF42 1-239-845-11 FILTER, LOW PASS R50 1-249-429-11 CARBON 10K = 5% 1/4¥
R51 1-249~441-11 CARBON 100K 5% 1/44
< TRANSISTOR > R52 1-249-429-11 CARBON 10K 5% 1/44
R53 1-249-425-11 CARBON 4,71K 5% 1/4¥ F
Q1 8-729-230-XX TRANSISTOR 2SC26690Y-TPE4 R54 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
Q2 8-729-230-XX TRANSISTOR 2SC26690Y~TPE4
Q3 8-729-230-XX TRANSISTOR 2SC26690Y-TPE4 < VARIABLE RESISTOR >
Q4 8-729-230-XX TRANSISTOR 2SC26690Y-TPE4
Q5 8-729-422-57 TRANSISTOR BNIA4M-TP RV41 1-238-600-11 RES, ADJ, CARBON 10K
RV42 1-238-601-11 RES, ADJ, CARBON 22K
< RESISTOR >
< TERMINAL >
Rl 1-249-401-11 CARBON 47 5% 1/4¥ F
R2 1-249-411-11 CARBON 330 =5% 1/4¥ TM1 1-537-238-21 TERMINAL BOARD (ANTENNA)
R3 1-249-411-11 CARBON 330 5% 1/4¥
R5 1-249-411-11 CARBON 330 = 5% 1/4¥ < VIBRATOR >
R6 1-247-863-91 CARBON 22K 5% 1/4¥
X21 1-760-549-11 VIBRATOR, CRYSTAL (4. 5MHz)
RT 1-249-411-11 CARBON 330 = 5% 1/4¥ X41 1-577-075-11 OSCILLATOR, CERAMIC (456KHz)
R8 1-249-411-11 CARBON 330 = 5% 1/44 X42 1-760-220-11 FILTER, CERAMIC (10. 7MHz)
R9 1-247-863-91 CARBON 22K = 5% 1/44 X43 1-527-981-00 FILTER, CERAMIC (450KHz)
R10 1-249-411-11 CARBON 330 65% 1/4¥
R11 1-247-863-91 CARBON 22K 5% 1/4¥ EKEKKKEKKKEREREAARERERERERERERAREREERERA EERE RARE RAS EERE ERR
R12 1-249-411-11 CARBON 330 395% 1/44 x 1-659-155-11 TRANSFORMER BOARD
R13 1-249-411~11 CARBON 330 365% 1/4¥ KEKEKEKEREKEKKKEE
R14 1-247-863-91 CARBON 22K = o45% 1/4¥
R15 1-249-429-11 CARBON 10K 5% 1/4¥ 1-533-217-31 HOLDER, FUSE
R16 1-249-437-11 CARBON ATK 5% 1/4¥
< CAPACITOR >
R19 1-249~-399-11 CARBON 33 5% 1/4¥ F
R21 1-247-807-31 CARBON 100 5% 1/44 C1611 1~-164~-159-21 CERAMIC 0.1 50V
R22 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
R23 1-249-425-11 CARBON 4.7K 5% 1/4 F < CONNECTOR >
R24 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
CN1601 1-774-108-11 PIN, CONNECTOR (PC BOARD)
R25 1-247-807-31 CARBON 100 5% 1/4¥ CN1602 1-564-521-11 PLUG, CONNECTOR 6P
R26 1-249-411-11 CARBON 330 5% 1/4¥
R27 1-249-425-11 CARBON 4, 7TK 5% 1/44 F < RESISTOR >
R28 1-249-423-11 CARBON 3. 3K 5% 1/4¥ F
R29 1-249-417-11 CARBON 1K 5% 1/4¥ F A\R1600 1-202-725-00 SOLID 3.3M 10% 1/24
A\R1601 1-217-637-00 FUSIBLE 1 5% 1/48 F
R30 1-249-417-11 CARBON 1K 5% 1/4¥ F
R31 1-249-417-11 CARBON 1K 5% 1/4¥ F pes eeretesterertsss setts est ests settee ste ss set tts ests ese st esses J
R32 1-249-417-11 CARBON 1K 5% 1/4¥ F
R33 1-247-807-31 CARBON 100 5% 1/4¥ MISCELLANEOUS
R34 1-249-429-11 CARBON 10K 5% 1/4¥ EEEKKSEREEKESE
R35 1-249-429-11 CARBON 10K = 5% 1/4¥ 156 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
R36 1-249-437-11 CARBON ATK 5% 1/4¥ 157 1-776-238-11 WIRE (FLAT TYPE) (19 CORE)
R37 1-249-417-11 CARBON IK 5% 1/4¥ F 158 1-773-024-11 WIRE (FLAT TYPE) (15 CORE)
R41 1-249~429-11 CARBON 10K = 5% 1/4¥ 221 1-698-705-11 MOTOR, WIRE
R43 1-249-421-11 CARBON 2.2K 5% 1/44 251 1-500-322-11 HEAD, WIRE (E) (DECK B)
R44 1-249-421-11 CARBON 2.2K 5% 1/4¥ 253 1-500-319-11 HEAD, HOLDER (DECK B)
R46 1-249-442-11 CARBON 510 5% 1/44 255 1-500-320-11 HEAD, WIRE R/P (DECK B)
R47 1-249-403-11 CARBON 68 5% 1/4¥ F 256 1-500-321-11 HEAD, WIRE P.B (DECK A)
R48 1-249-423-11 CARBON 3. 3K 5% 1/4¥ F 314 1-762-610-11 SWITCH, PLATE
R49 1-249-393-11 CARBON 10 5% 1/4 F 315 1-762-613-11 SWITCH, WIRE LEAF (DECK A)
The components identified by mark | Les composants identifiés par une
A\ or dotted line with mark A\ are | marque A\ sont critiques pour la
critical for safety. sécurité.
Replace only with part number | Ne les remplacer que par une piéce
specified. portant le numéro spécifié.
