Sony HCD-EC55 - Front Panel Assy

11
HCD-EC55/EC77/GX99
B
tray
A

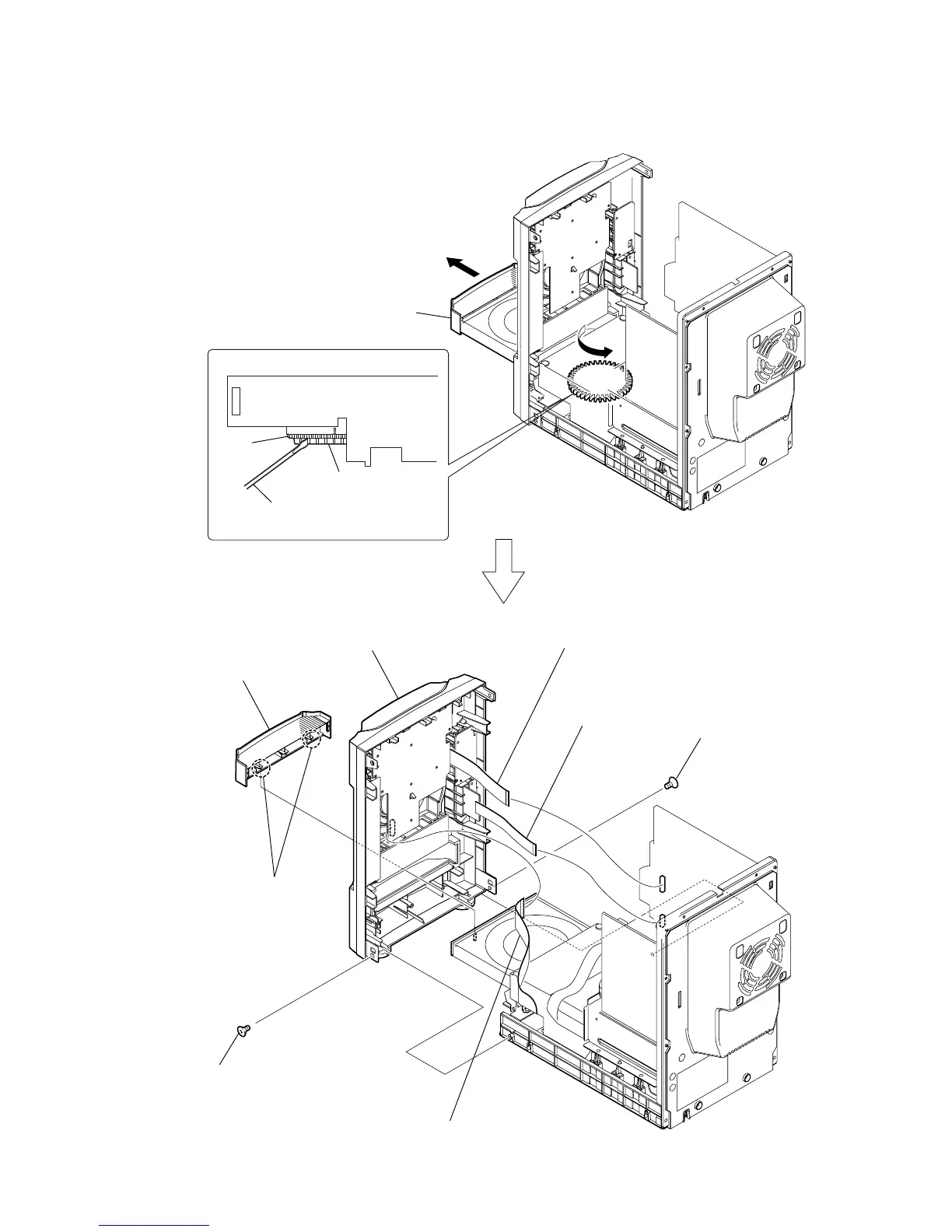

1 Turn the bottom rib (not the gear) with a flathead screwdriver in the direction
of arrow A, and draw out the tray in the direction of arrow B.
2 two claws
3 door (CD)
9 front panel
assy
8 screw
(+KTP3 × 10 )
7 screw
(+KTP3 × 10 )
6 wire (flat type)
13core (CN302)
4 fwire (flat type)
27core (CN607)
5 fwire (flat type)
9core (CN605)
gear
flathead screwdriver
bottom rib
3-5. FRONT PANEL ASSY
