17
HCD-EC55/EC77/GX99

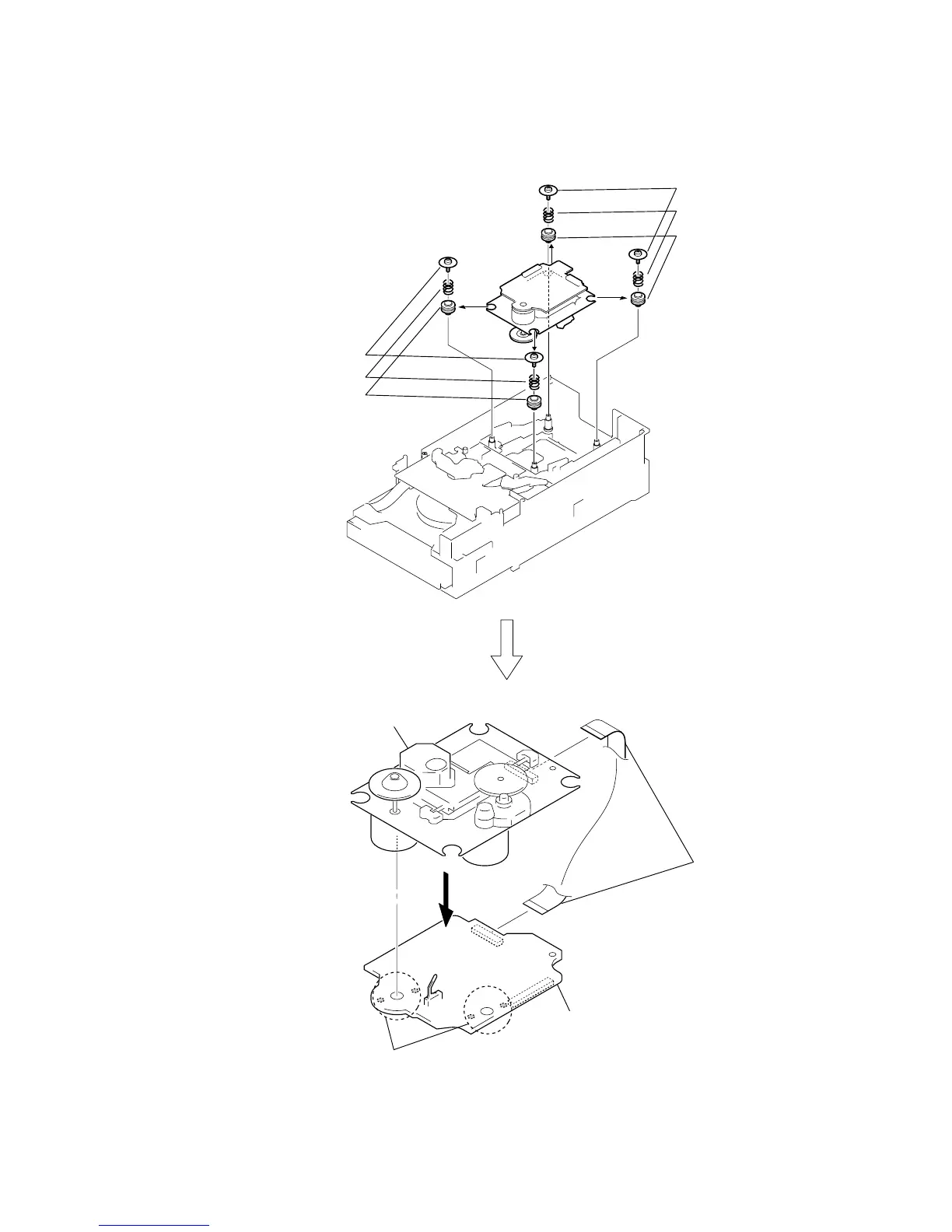

3-13. OPTICAL PICK-UP (KSM-213DCP), BD90 BOARD
8
Remove the solderings from
the four points.
7
wire (flat type) (16 core)
(CN301)
q;
BD90 board
9
optical pick-up
(KSM-213DCP)
4
two screws
(+PTPWHM 2.6)
1
two screws
(+PTPWHM 2.6)
2
two coil springs (insulator)
3
two insulators
5
two coil springs (insulator)
6
two insulators
