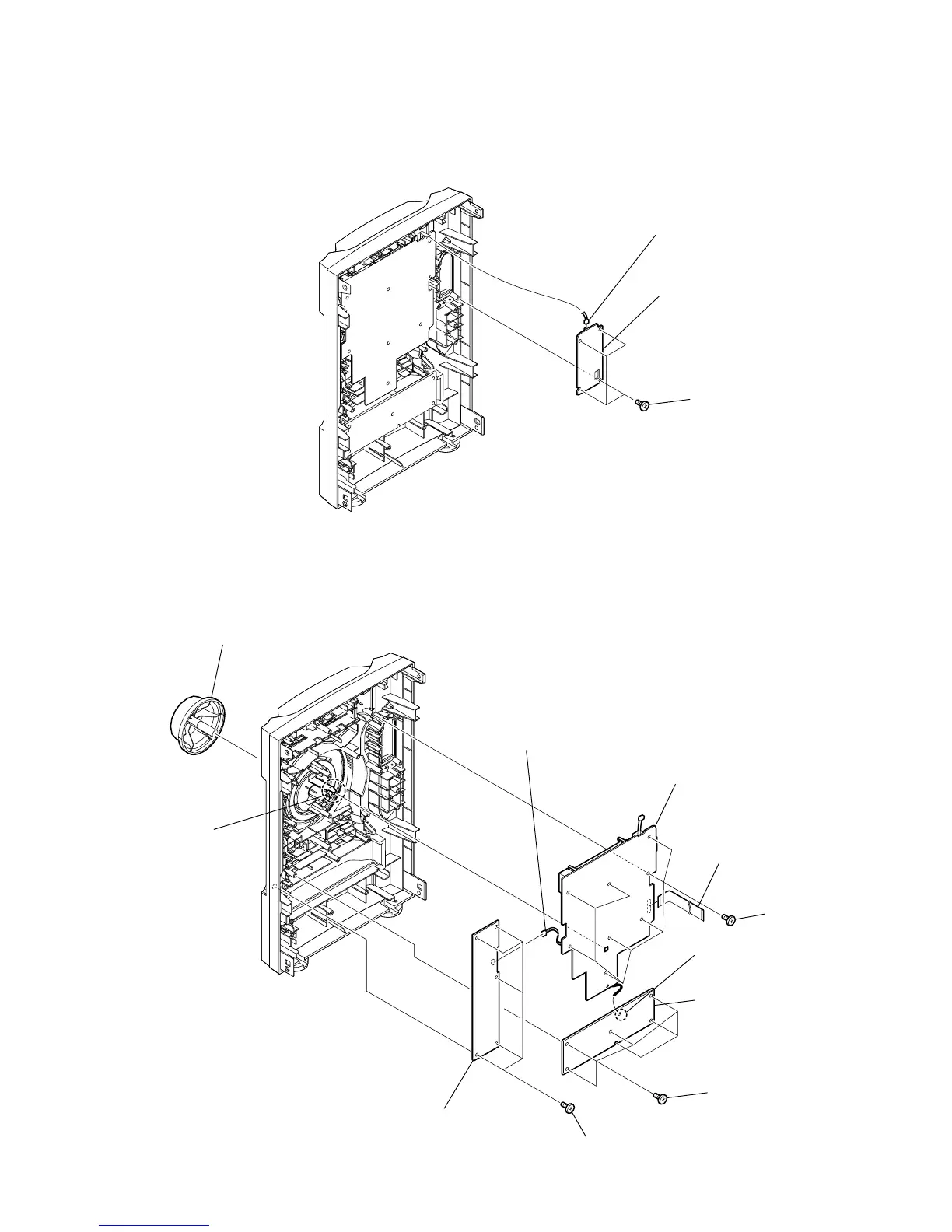

3-8. KEY-LEFT BOARD
1 four screws
(+BVTP 2.6 × 8 )
2 connector
(CN401)
3 KEY-LEFT board
3-9. KEY-RIGHT BOARD, KEY-CD BOARD, PANEL BOARD
9 claw
8 eight screws
(+BVTP 2.6 × 8
)
4 six screws
(+BVTP 2.6 × 8 )
6 KEY-CD board
3 KEY-RIGHT board
5 Remove the
soldering.
1 five screws
(+BVTP 2.6 × 8 )
0 wire (flat type)
27core (CN301)
qa PANEL board
2 connector
(CN403)
7 knob (VOL)
